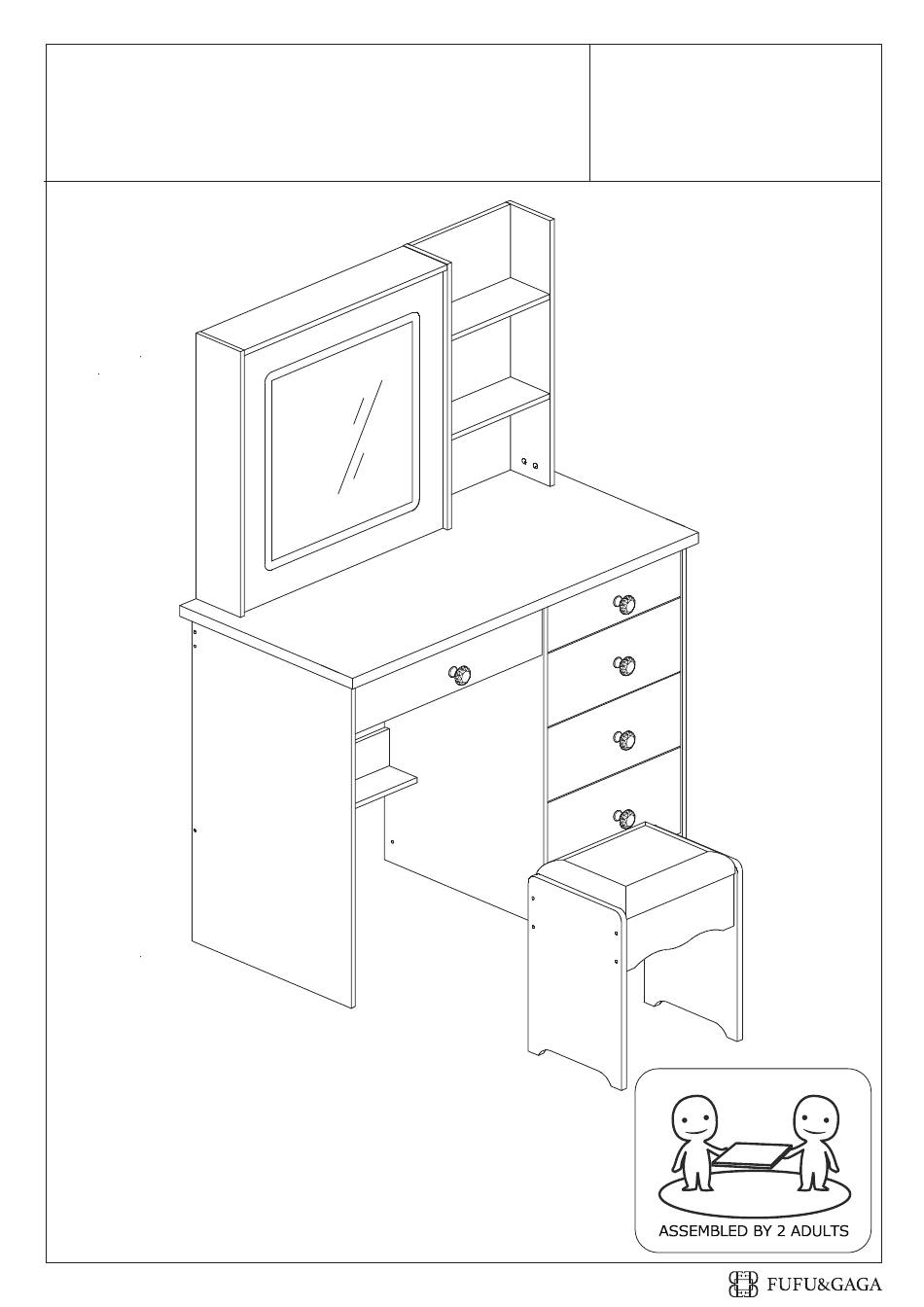

Page 2
IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...
Page 3
Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size A x 54 B x 54 C x 18 D x 18 12 x 10 mm 7 x 40 mm 10 x 10 mm 4 x 45 mm...
Page 4
ALWAYS install tipover restraint provided. NEVER put a TV on this product. NEVER allow children to stand,climb or hang on drawers,doors,or shelves. NEVER open more than one drawer at a time. Place heaviest items in the lowest drawers. This is a permanent label. Do not remove! 4/23...
Page 5
B x 4 7 x 40 mm Insert quickfit screw(B) into corresponding holes in board 13 with a screwdriver as shown. Please pay attention to the holes where the accessories are inserted. A x 4 12 x 10 mm Attach board 13 to board 17,18 and turn cam locks(A) clockwise to tighten as shown.
Page 6
Slide board 24 into available slots. I x 4 3.5 x 35 mm Attach board 17,18 to board 21 with screw(I) as shown. 6/23...
Page 7
B x 4 Insert quickfit screw(B) into corresponding holes in board 14 with a screwdriver as shown. Please pay attention to the holes where the accessories are inserted. A x 4 12 x 10 mm Attach board 14 to board 17,18 and turn cam locks(A) clockwise to tighten as shown.
Page 8
Slide board 25 into available slots. I x 4 3.5 x 35 mm Attach board 17,18 to board 22 with screw(I) as shown. 8/23...
Page 9
B x 8 7 x 40 mm Insert quickfit screw(B) into corresponding holes in board 15 with a screwdriver as shown. Please pay attention to the holes where the accessories are inserted. A x 8 12 x 10 mm Attach board 15 to board 19,20 and turn cam locks(A) clockwise to tighten as shown.
Page 10
Slide board 25 into available slots. I x 8 3.5 x 35 mm Attach board 19,20 to board 23 with screw(I) as shown. 10/23...
Page 11
B x 4 7 x 40 mm Insert quickfit screw(B) into corresponding holes in board 16 with a screwdriver as shown. Please pay attention to the holes where the accessories are inserted. A x 4 12 x 10 mm Attach board 16 to board 19,20 and turn cam locks(A) clockwise to tighten as shown.
Page 12
Slide board 25 into available slots. I x 4 3.5 x 35 mm Attach board 19,20 to board 23 with screw(I) as shown. 12/23...
Page 13
L1 x 10 E x 5 G x 20 14" 4 x 16 mm 3 x 12 mm Fix runner(L1) to each side of the drawer with screw(G) as shown.Pay attention to the runner's installation direction(The circular track grooves is on the right.).Fix knob(E) with screw(F) as shown. L1(L) L1(L) L1(R)
Page 14
Fix slide rail(L2) to board 2, 3,4 with screw(G) as shown. Please pay attention to the holes where the accessories are inserted. Knock leg peg(K) into the bottom. Note:Only this slider hole is different. Insert quickfit screw(B) into corresponding holes in board 2,3,4 with a screwdriver as shown.
