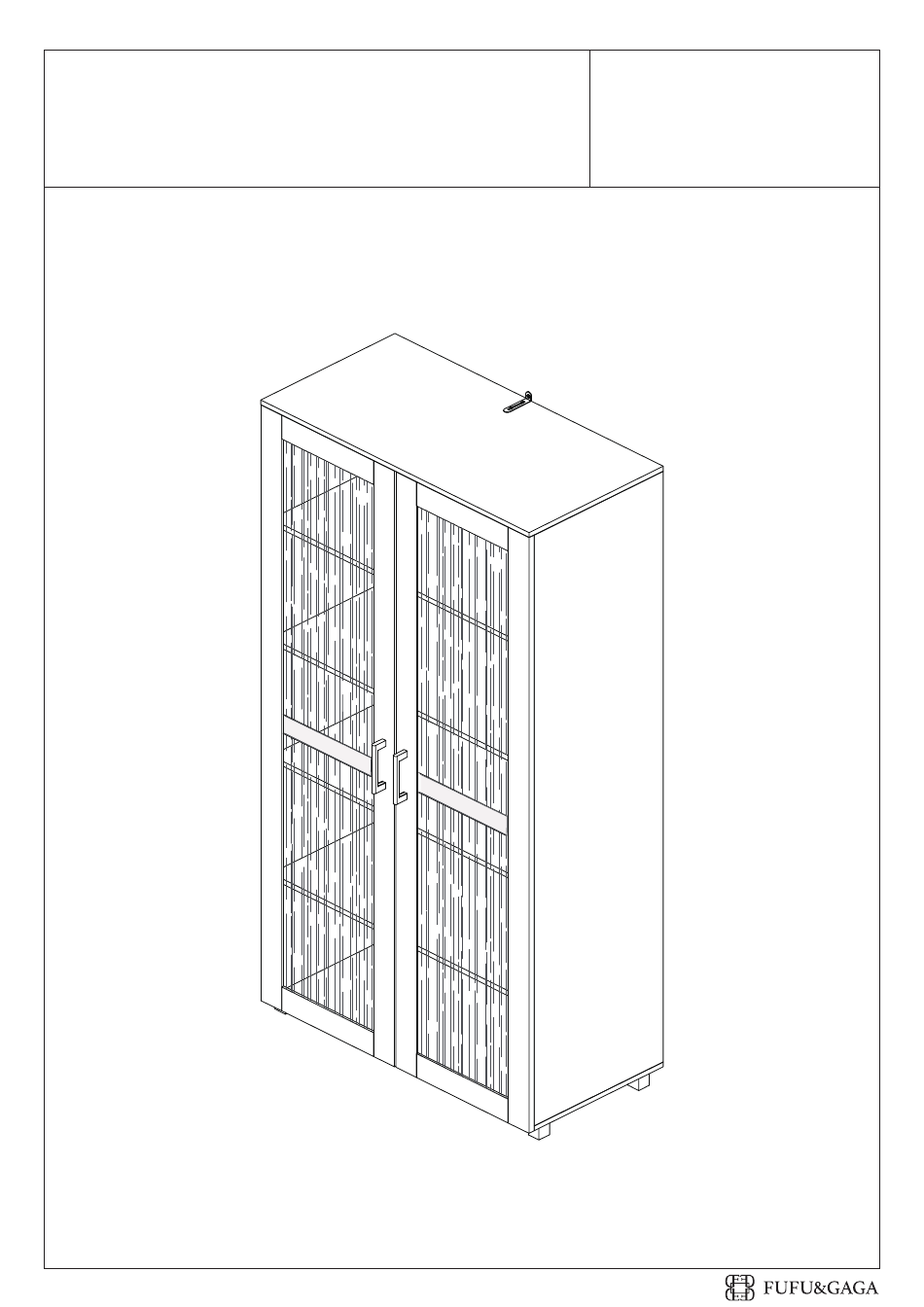

- Page 1 Lockers Version:07/04/2022 1/12...
- Page 2 IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...
-
Page 3: Table Of Contents
Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size D x 4 A x 8 B x 8 C x 16 6 x 35 mm 15 x 9 mm 6 x 30 mm 4 x 30 mm... - Page 4 4/12...
-
Page 5: A X 4
A x 4 B x 4 C x 8 6 x 35 mm 15 x 9 mm 6 x 30 mm Insert quickfit screw(A) and wooden dowel(C) into No.2 and No.3 plates as shown. Attach No.4 and No.6 plates to the two plates, turn cam locks(B)clockwise to tighten as shown. - Page 6 Insert No.10 and No.11 plates into available slots as shown. Please note connect No.11 and No.10 plates with No.12. E x 4 C x 4 4 x 35 mm 6 x 30 mm Cover No.7 plate to the component with wooden dowel(C), use screw(E) to fix.
-
Page 7: D X 4
D x 4 K x 4 4 x 30 mm Fix leg(K) to the No.7 with screw(D) as shown. H x 4 F x 16 G x 8 P x 2 4 x 14 mm 4 x 25 mm Fix hinge(G) into No.8 and No.9 plates with screw(F) as shown. - Page 8 N x 12 Insert part(N) into sides of No.2 and No.3 plates as shown. Put No.5 plates. 8/12...
- Page 9 F x 16 4 x 14 mm Attach No.8 to No.2, No.9 to No.3 by fixing hinge with screw(F) as show. 9/12...
- Page 10 If there is misalignmAent after you install, adjust the screw to the best condition 10/12...
-
Page 11: J X 14
J x 14 Q x 14 3 x 16 mm Fix part(J) to back board with screw(Q) as shown. 11/12... -
Page 12: L X 1
L x 1 M x 1 Fix anti-dumping device(L) to top board. Hammer part(M) to your wall, and fix part(L) to part(M) as shown. 12/12... - Page 13 WARRANTY WARRANTY CLAIMS •There is a 30-day warranty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part.
