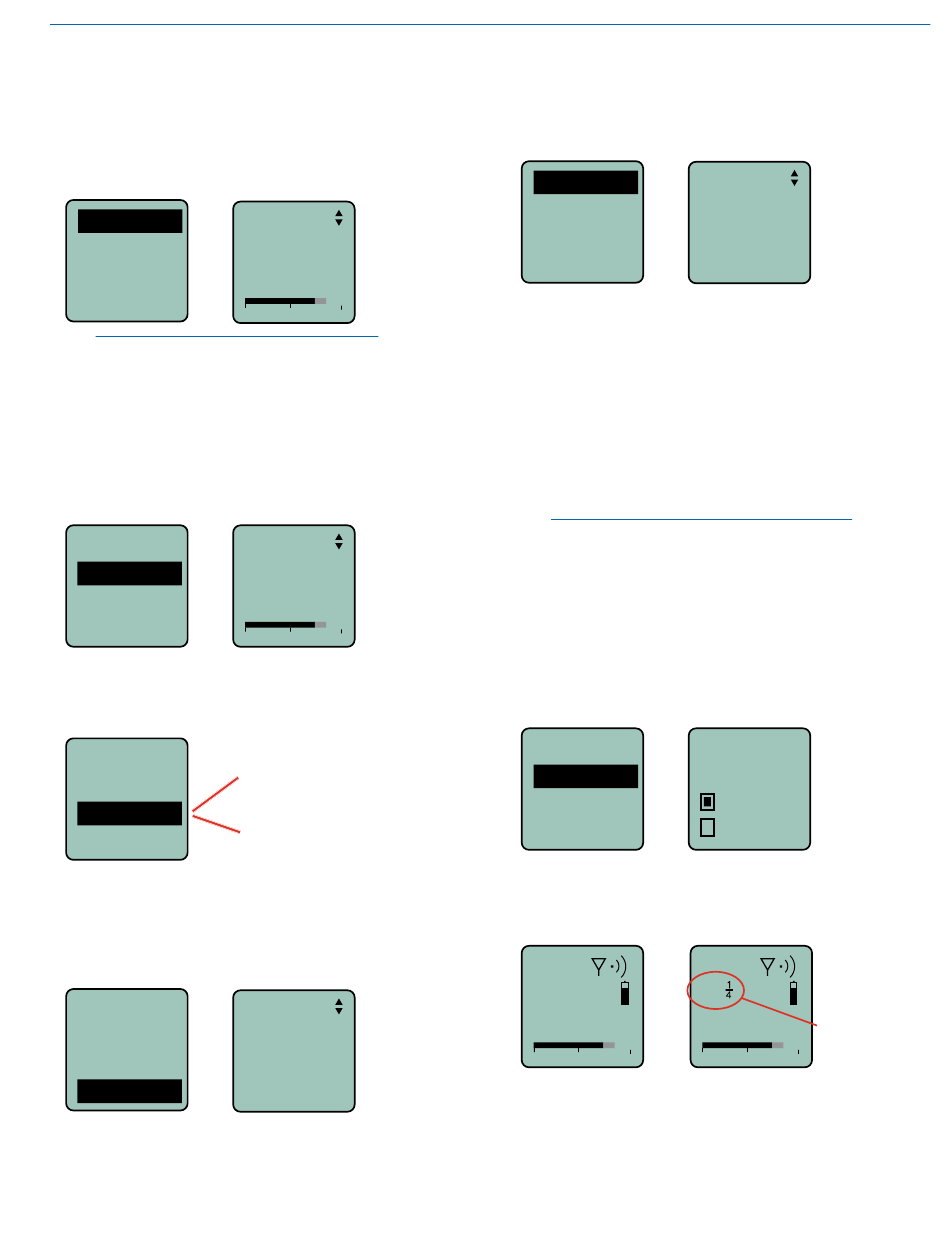

Gain
This setting is very important since it will determine the
audio signal to noise ratio and dynamic range that the
wireless system will deliver. Gain must be set accord-
ing to the individual voice, the mic capsule in use and
the handling technique of the user. LEDs in the control
panel facilitate accurate gain adjustment.
Gain
Freq.
ProgSw
Rolloff
IMPORTANT: See the section Input Gain
Adjustment on page 10 for details.
Freq.
The operating frequency is normally determined using
the scanning function in the receiver or with coordina-
tion software. The frequency is shown on the transmit-
ter LCD display in MHz and with a hexadecimal code
that is used on most Lectrosonics receivers.
Gain
Freq.
ProgSw
Rolloff
ProgSw
The Programmable Switch on the housing can be set
to provide several functions, or it can be bypassed.
Gain
Freq.
ProgSw
Rolloff
Rolloff
A low frequency roll-off filter can be set for a -3dB
point at 35, 50, 70, 100 or 125 Hz. Roll-off slopes are
12.2 dB/octave at 35 Hz and 10.1 dB/octave at 70 Hz
through 125 Hz.
Gain
Freq.
ProgSw
Rolloff
The roll-off frequency is normally adjusted by ear to
suit personal preferences.
Rio Rancho, NM
Gain
25
-40
-20 0
Freq
7A
601.000
-40 -20 0
Functions:
TalkBack
Power
See page 11
Cough
for details
Mute
(none)
Rolloff
70 Hz
Wideband Hand Held Transmitter
Compat
The HHa can be used with earlier Lectrosonics wire-
less and IFB systems and systems from other manu-
facturers by selecting the correct Compatibility Mode.
The receiver must be set to the same mode.
Compat
StepSiz
TxPower
Phase
The available modes are as follows. See Specifications
for the modes available in your model:
• Nu Hybrid/
Digital Hybrid
• Mode 3
• 200 Mode
• 100 Mode
• Mode 7
• Mode 6
• IFB Mode
NOTE: If your Lectrosonics receiver does not
have Nu Hybrid mode, set the receiver to Euro
Digital Hybrid Wireless® (EU Dig. Hybrid).
StepSiz
The frequency can be adjusted in 100 kHz or 25 kHz
steps to match the receiver. 100 kHz is the standard
increment for Lectrosonics wireless systems, but 25
kHz increments may be needed for use with systems
from other manufacturers or when frequency coordina-
tion requires it.
Compat
StepSiz
TxPower
Phase
The Hex Code on the Main Screen will be smaller in
the 25 kHz mode and a fraction will appear next to the
characters if a frequency in between even 100 kHz
steps is selected.
8
0
550.400
-40 -20 0
Compat
Nu Hybr
Digital Hybrid receivers
(other brand contact the factory)
Earlier Lectrosonics receivers
100 Series Lectrosonics receivers
(other brand contact the factory)
(other brand contact the factory)
Lectrosonics IFB receivers
StepSiz
100 kHz
25 kHz
80
550.425
Hex Code in
25 kHz mode
-40 -20 0
