Programmable Switch
Functions
NOTE: The Power and Cough functions were
added starting with serial number 1001.

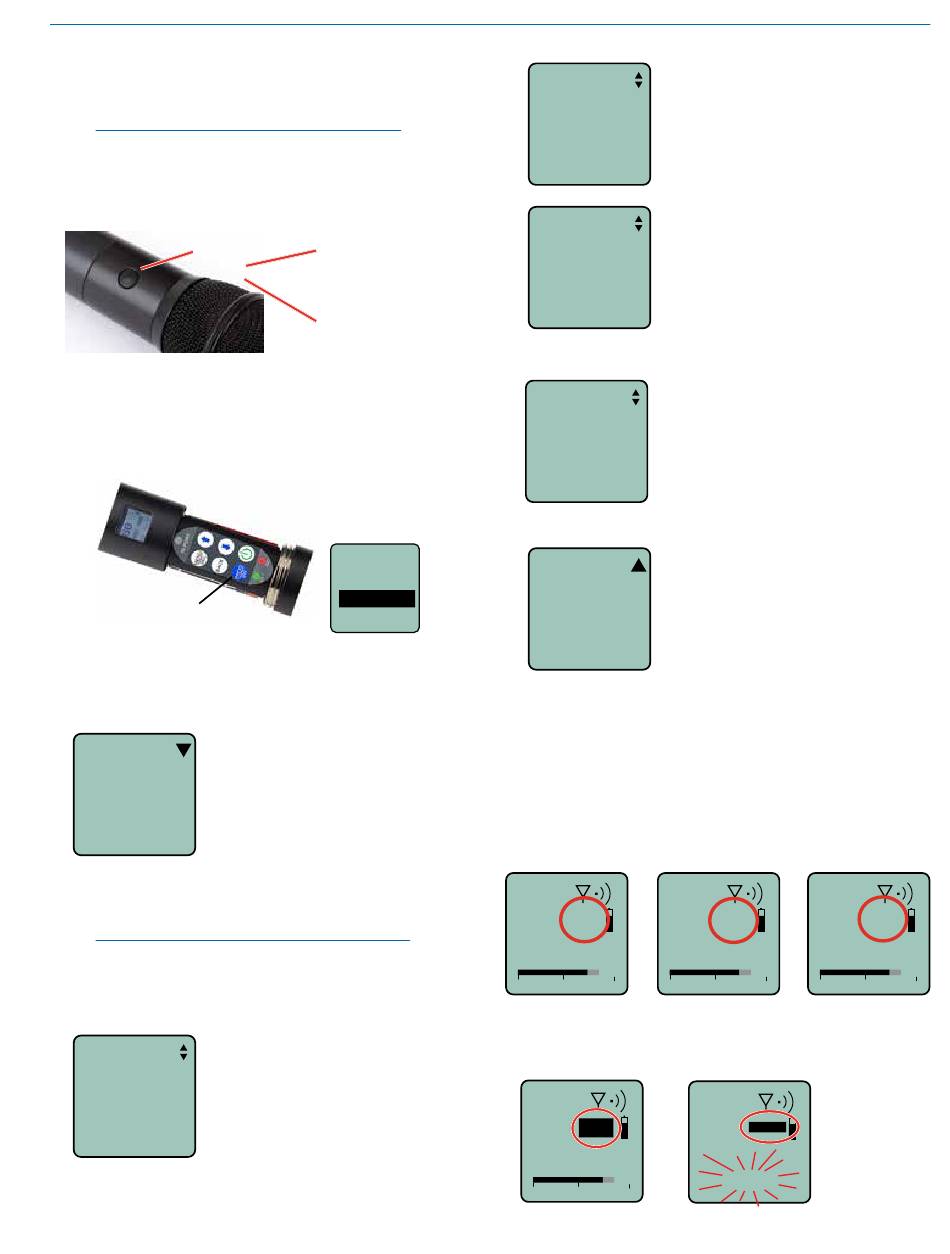

A special button (the Side Button) on the outside of
the housing can be configured to provide several differ-
ent functions, or to be inoperative.
Side Button
The ProgSw on the control panel opens a setup
screen to set the Side Button function. Enter this
setup screen and then use the UP/DOWN arrows to
select the desired function, then press the MENU/SEL
button to return to the Main Window.
Side Button
Setup Switch
The ProgSw menu provides a scrollable list of the
available functions. Use the UP/DOWN arrows to high-
light the desired function and press BACK or MENU/
SEL to select it and return to the main menu.
Talkback is a "push to talk" function
ProgSw
that is active only while the button is
pressed. The talkback function
TalkBk
provides a communication channel
when used with a receiver equipped
with this function, such as a Venue
Wideband receiver with firmware
Ver. 5.2 or higher. When pressed and held in, the side
button re-directs the audio output to a different audio
channel on the receiver. As soon as the switch is
released, audio is returned to the program channel.
NOTE: The Talkback function is only available
in the Digital Hybrid compatibility mode. An error
message will appear if Talkback is selected while
in another mode.
Power turns the power on and off.
ProgSw
Hold the button in until the count-
down sequence from 3 to 1 is
Power
completed. The power will then be
turned off.
(additional information on page 7)
Rio Rancho, NM
Functions:
• TalkBack
• Power
• Cough
• Push to Talk
• Mute
• (none)
Press the
Programmable Switch
or select ProgSw on
the main menu.
Gain
Freq.
ProgSw
Rolloff
Wideband Hand Held Transmitter
Cough is a momentary mute switch.
ProgSw
Audio is muted while the button is
held in.
Cough
Mute is a "push on/push" off function
ProgSw
that toggles on and off each time
the Side Button is pressed. The
Mute
mute function defeats the audio in
the transmitter, so it works in all
compatibility modes and with all
receivers.
ProgSw
Push To Talk is a momentary talk
switch. Audio is transmitted while
PTT
the button on the housing is
held (opposite of cough)
ProgSw
(none) disables the switch.
(none)
For detailed information on setting up the Talkback
function and the Venue receiver, refer to the Installa-
tion Guide for the Venue Wideband Receiver.
Main Window Displays for Mute and
Talkback Functions
The function of the Side Button is displayed in the
LCD Main Window.
b 23 b 23
7 7
A A
601.000 601.000
-40 -20 0 -40
None/Power Talkback
When the Side Button is pressed, the function will be
active and the LCD will display an indication.
b 23
7
A
TB
601.000
<–MUTE–>
-40 -20
0
Talkback active
b 23
7
A
TB
MUTE
601.000
-20 0 -40 -20
Mute/Cough
b 23
7
A
MUTE
601.000
Mute active
(MUTE blinks)
0
