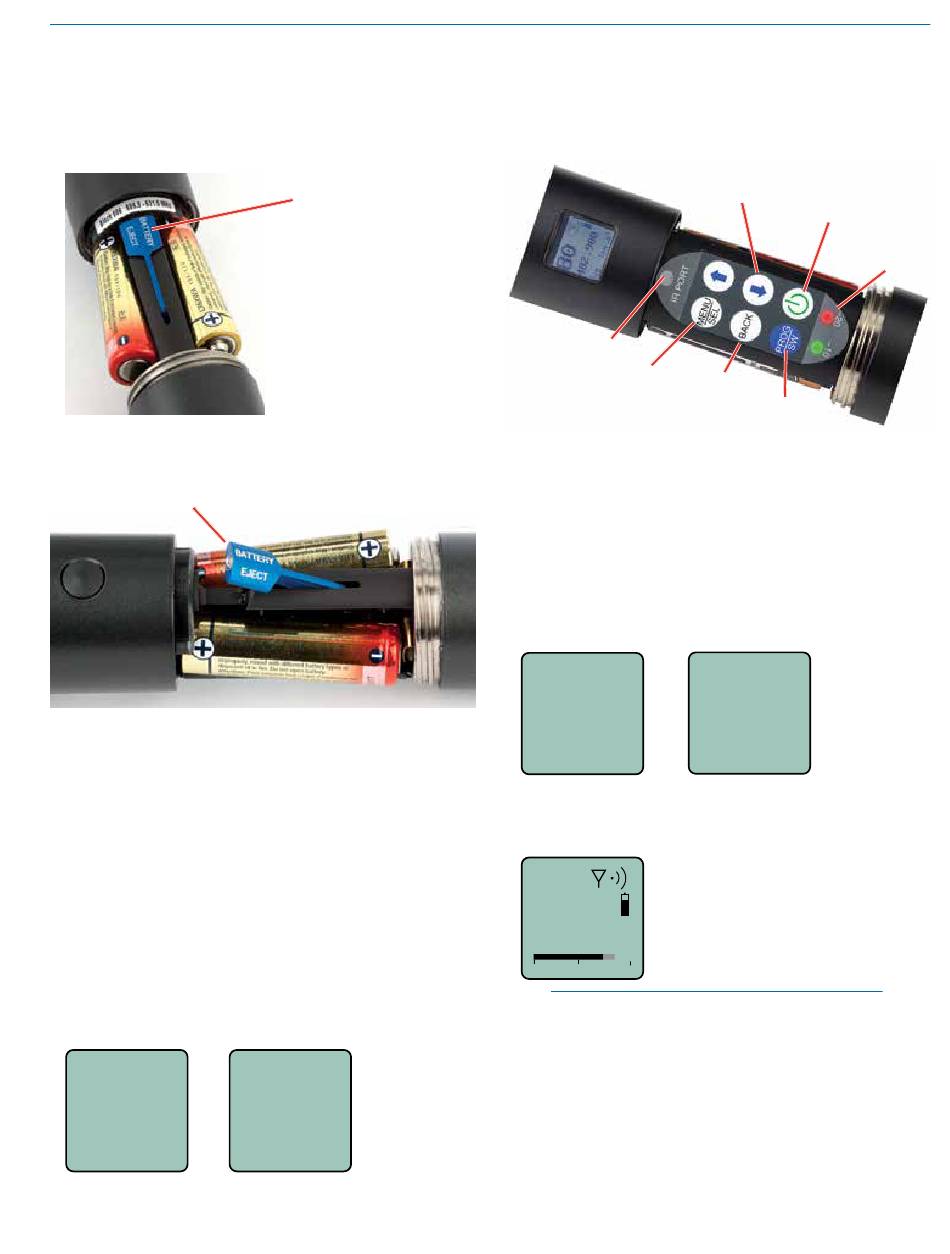

Battery Installation

To insert batteries, close the eject lever and insert the
upper contacts first (closest to the mic capsule). Polar-
ity is marked on the label in the bottom of the battery
compartment.
To remove the batteries, pull the eject lever outward.
The battery tips will move outward, making them
easier to grasp.
Pull eject lever outward to release batteries from contacts
The contacts are very tight to prevent the batteries
from "rattling" as the transmitter is being handled.

IR Sync

The IR SYNC (infrared sync) port is used with receiv-
ers that offer this feature. Settings stored in the receiv-
er for frequency, step size and compatibility mode are
transferred to the transmitter via the infrared ports. To
use this feature, open the housing on the transmitter to
expose the control panel. Hold the transmitter near the
receiver (less than 3 feet away) so the IR ports face
each other. The transfer is triggered by a switch on the
receiver. The LCD on the transmitter will display a
message confirming that the settings were success-
fully transferred, or an error message that identifies the
problem that occurred.
IR Sync
OK
Rio Rancho, NM
Close
eject lever
to install
batteries
IR Sync
COMPAT
Mismatch
Wideband Hand Held Transmitter

Control Panel

Six membrane switches on the control panel are used
to set up the transmitter by navigating the menus on
the LCD and selecting the desired values.
IR Sync Port
Enter Menu and
Previous
Select Item

Setup and Adjustments

Powering On

Press and hold the Power Button for several seconds
until a countdown on the LCD is completed. The
countdown from 1 through 3 will appear on the LCD,
followed by a display of the model, firmware version,
frequency band and compatibility mode.
Hold
for
Rf On
...3
When you release the button, the unit will be opera-
tional with the RF output turned on and the Main
Window displayed.
b 23
7
A
The Main Window
601.000
-40 -20
0
NOTE: If the Power Button is released before the
countdown is completed, the unit will boot up in
the "standby" mode with the RF output turned off.
UP/DOWN Buttons for
Menu Item Selection
Power Button
Modulation
Screen
Side Button
Setup Switch
HHa
1.03
Band B1
IFB Mode
LEDs
