Summary of Contents for Lectrosonics HHa/E01

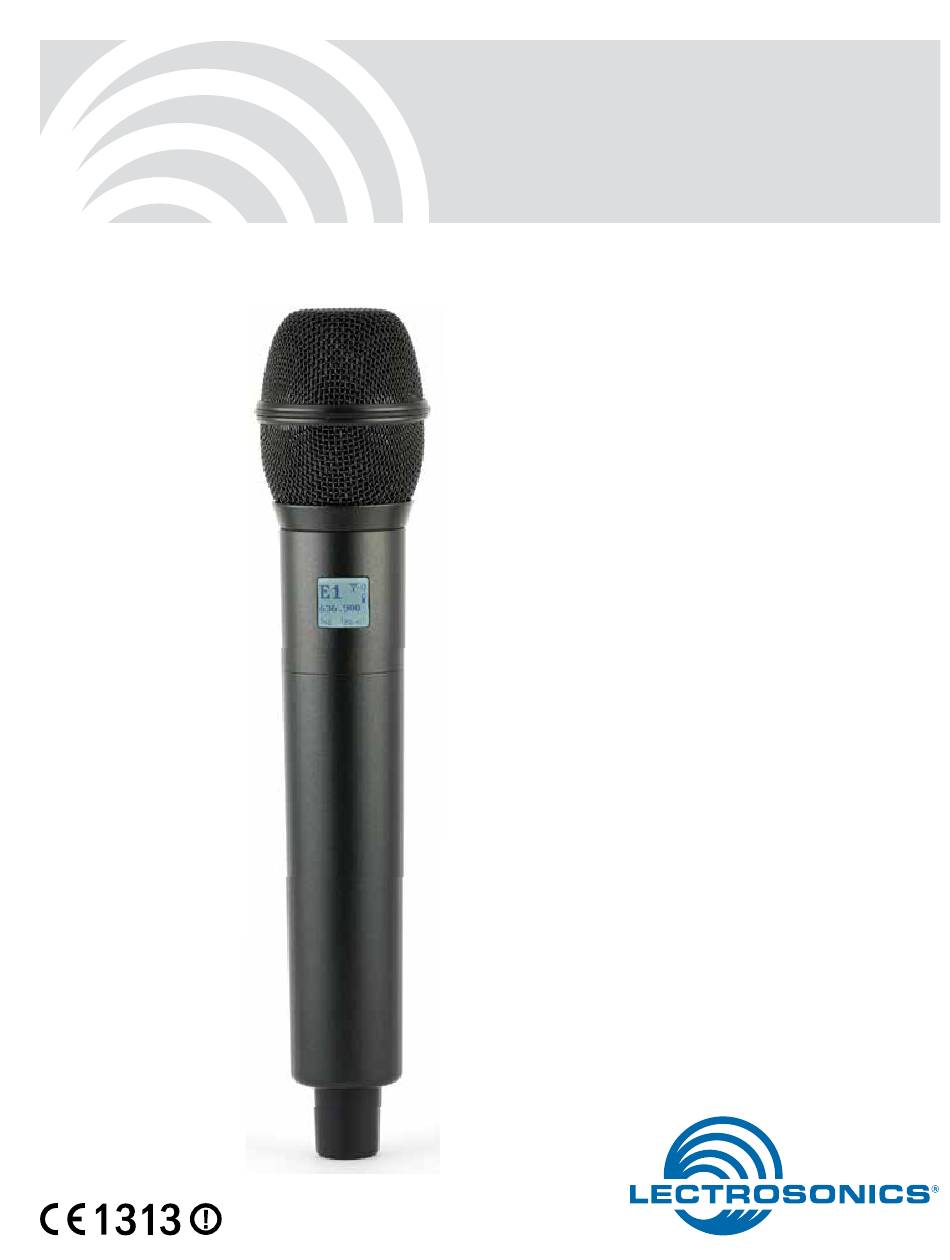

- Page 1 INSTRUCTION MANUAL HHa/E01 Handheld Transmitter Digital Hybrid Wireless ® US Patent 7,225,135 Rio Rancho, NM, USA www.lectrosonics.com...
- Page 2 HHa/E01 LECTROSONICS, INC.
- Page 3 Wideband Hand Held Transmitter Table of Contents General Technical Description ..........4 Microphone Capsules: ............6 Mechanical Assembly ............6 Battery Installation ..............7 IR Sync ................... 7 Control Panel ................. 7 Setup and Adjustments ............7 Powering On ................ 7 Powering Off ................
- Page 4 Lectrosonics IFB and certain non-Lectrosonics analog receivers in Wide Deviation special compatibility modes. (Contact the Lectroson- ±50 kHz deviation is used in the Digital Hybrid system...
- Page 5 USB Port for Firmware Updates Wideband Tuning Range Firmware updates are enabled by simply downloading a file and utility program from the Lectrosonics web The transmitter can tune across band of up to 76 MHz site, connecting the transmitter to a computer via the in either 100 kHz or 25 kHz steps.
- Page 6 28 threads per inch and three contact rings Microphone Capsules: Lectrosonics offers two types of capsules. The HHC is the standard capsule and the HHVMC is the Variable Mic Capsule which includes adjustments for Bass, Midrange and Treble.
- Page 7 LCD is completed. The countdown from 1 through 3 will appear on the LCD, followed by a display of the model, firmware version, frequency block and compatibility mode. HHa/E01 Hold 1.02 Rf On The contacts are very tight to prevent the batteries Band A1 from “rattling”...
- Page 8 HHa/E01 Powering Off About: Displays the model, firmware version, • frequency block and compatibility mode. Press and hold the Power Button (or the side button The unit can also be turned off from any menu or if it is configured for turning the power on and off) for...
- Page 9 100 kHz is the standard tion software. The frequency is shown on the transmit- increment for Lectrosonics wireless systems, but 25 ter LCD display in MHz and with a hexadecimal code kHz increments may be needed for use with systems that is used on most Lectrosonics receivers.
- Page 10 HHa/E01 Input Gain Adjustment Phase The phase (polarity) of the audio can be inverted to The two bicolor Modulation LEDs (located at the bot- match other microphone capsules as needed. tom of the control panel) provide a visual indication of the audio signal level entering the transmitter.
- Page 11 Wideband Hand Held Transmitter Programmable Switch Cough is a momentary mute switch. Button Audio is muted while the button is Functions held in. Cough NOTE: The Power and Cough functions were added starting with serial number 1001. A special button (the Side Button) on the outside of Mute is a “push on/push”...
- Page 12 HHa/E01 Mic Capsule Adjustments Resonance tuned HHVMC capsule (EXPERT LEVEL ADJUSTMENT) suspension These adjustments significantly alter the gain and tonal quality of the microphone, and are to be used only in special circumstances. Caution: Always make the final decision about sound quality with the windscreen in place.
- Page 13 USB port. UPDATE Go to http://www.lectrosonics.com/europe/ and click on SUPPORT in the top bar. Follow the links to the firm- ware update page. Download the Firmware Updater program zip file and extract it to a temporary folder on your computer.
- Page 14 HHa/E01 Parts and Accessories #CCHH - Zippered Pouch HHXTND Padded zipper pouch for handheld transmitter Extender to for use with microphone flags commonly used in ENG for network or station ID to keep the flag from covering the side switch and LCD...
- Page 15 Wideband Hand Held Transmitter Troubleshooting SYMPTOM POSSIBLE CAUSE TRANSMITTER WILL NOT POWER ON 1) Batteries are inserted backwards. 2) Batteries are dead, or too low to be used. HH MODULATION LEDs OFF 1) Audio Gain set too low. 2) Battery is inserted backwards. Check LCD for power indication. 3) Mic capsule is damaged or malfunctioning.
- Page 16 -3 dB selectable @35, 50, 70, 100, 125 Hz, 36 dB/octave (varies slightly w/ selection) Specifications subject to change without notice. † Not all frequency blocks are available in all countries. Consult your local representative or contact Lectrosonics for more information. LECTROSONICS, INC.
- Page 17 Wideband Hand Held Transmitter Declaration of Conformity Notified Body Statement of Opinion Rio Rancho, NM...
- Page 18 There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In-warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a mod- est flat rate plus parts and shipping.
- Page 19 Wideband Hand Held Transmitter Rio Rancho, NM...
- Page 20 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
