Step 3:

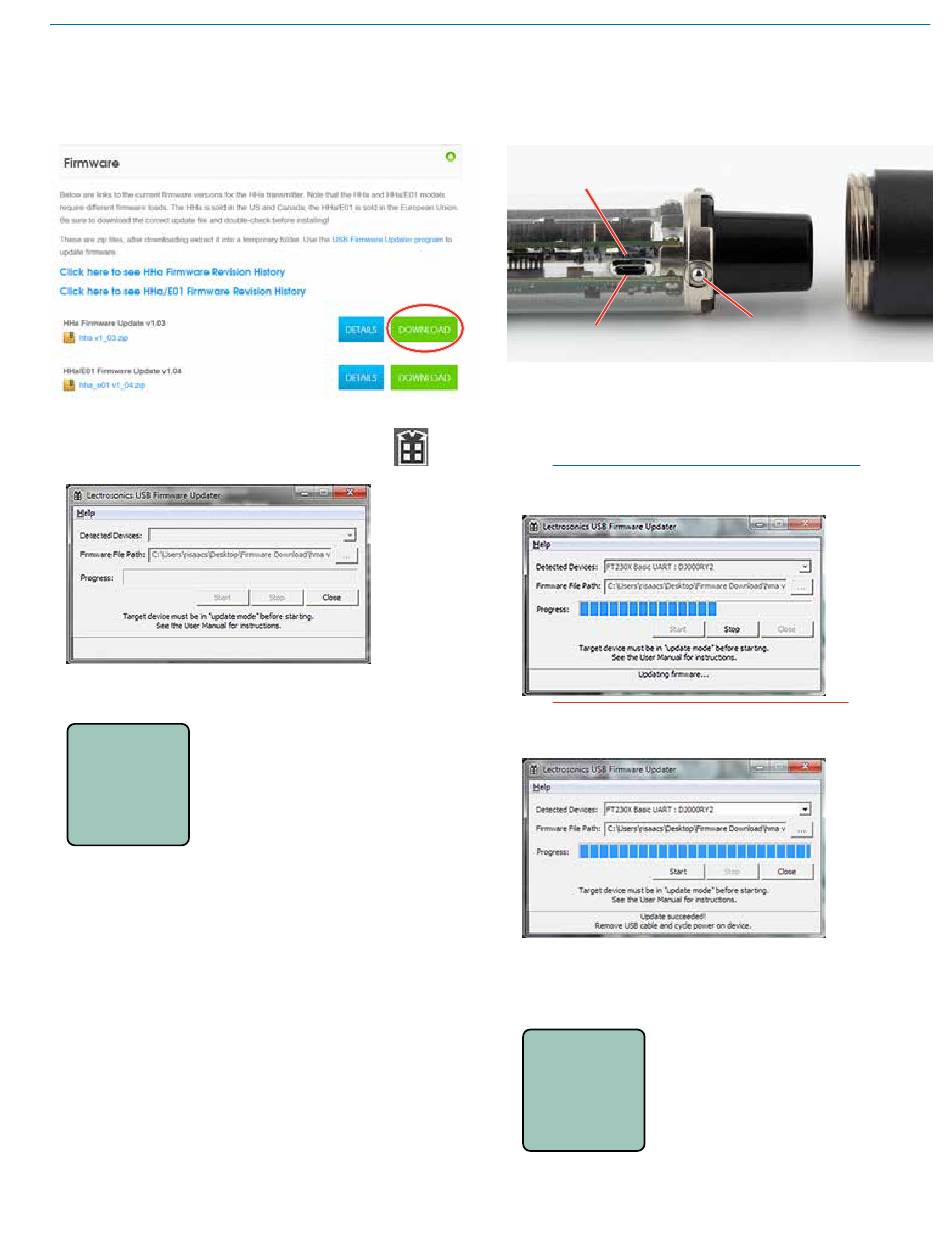

Refer to Step 1 to return to Firmware web page. Down-
load Firmware Update and save to a local file on your
PC for easy locating when updating.
Step 4:
Open Lectrosonics USB Firmware Updater.
Step 5:
Put the transmitter in UPDATE
mode by simultaneously holding
down the BACK and UP arrow
UPDATE
buttons on the transmitter control
panel while powering it up.
Step 6:
Using a microUSB cable, connect the transmitter to
your PC.
Remove the lower housing of the transmitter by un-
screwing it from the housing attached to the capsule
and pulling it straight off the body of the transmitter to
expose the circuitry. Spring-loaded ball detents provide
a "stop" with only the control panel exposed. Continue
to pull the lower housing farther to remove it. Simply
push the lower housing back onto the transmitter body
to re-install it.
Rio Rancho, NM
Wideband Hand Held Transmitter
The USB port on the transmitter requires a micro-B
male plug on the connecting cable. The other end of
the cable would normally be a USB A-Type male con-
nector to fit the most common type of USB jack used
on computers.
Opening in clear
plastic sleeve
USB Port
Step 7:
In Lectrosonics USB Firmware Updater, choose the
detected device, browse to local Firmware File and
click Start.
NOTE: It may take up to a minute or so for the
Updater to recognize the transmitter.
WARNING: Do not disrupt the microUSB cable
during updating.
The Updater alerts with progress and completion.
Step 8:
Once the Updater has completed,
HHa
turn off the transmitter, then turn it
1.03
back on to verify that the firmware
version on the transmitter LCD
Band B1
matches the firmware version
IFB Mode
shown on the web site.
Spring-loaded balls
engage detents in housing
