Attach The Rear Wheels - HOMCOM BMW S1000 RR Owner's Manual

Gear side
Driving wheel
4

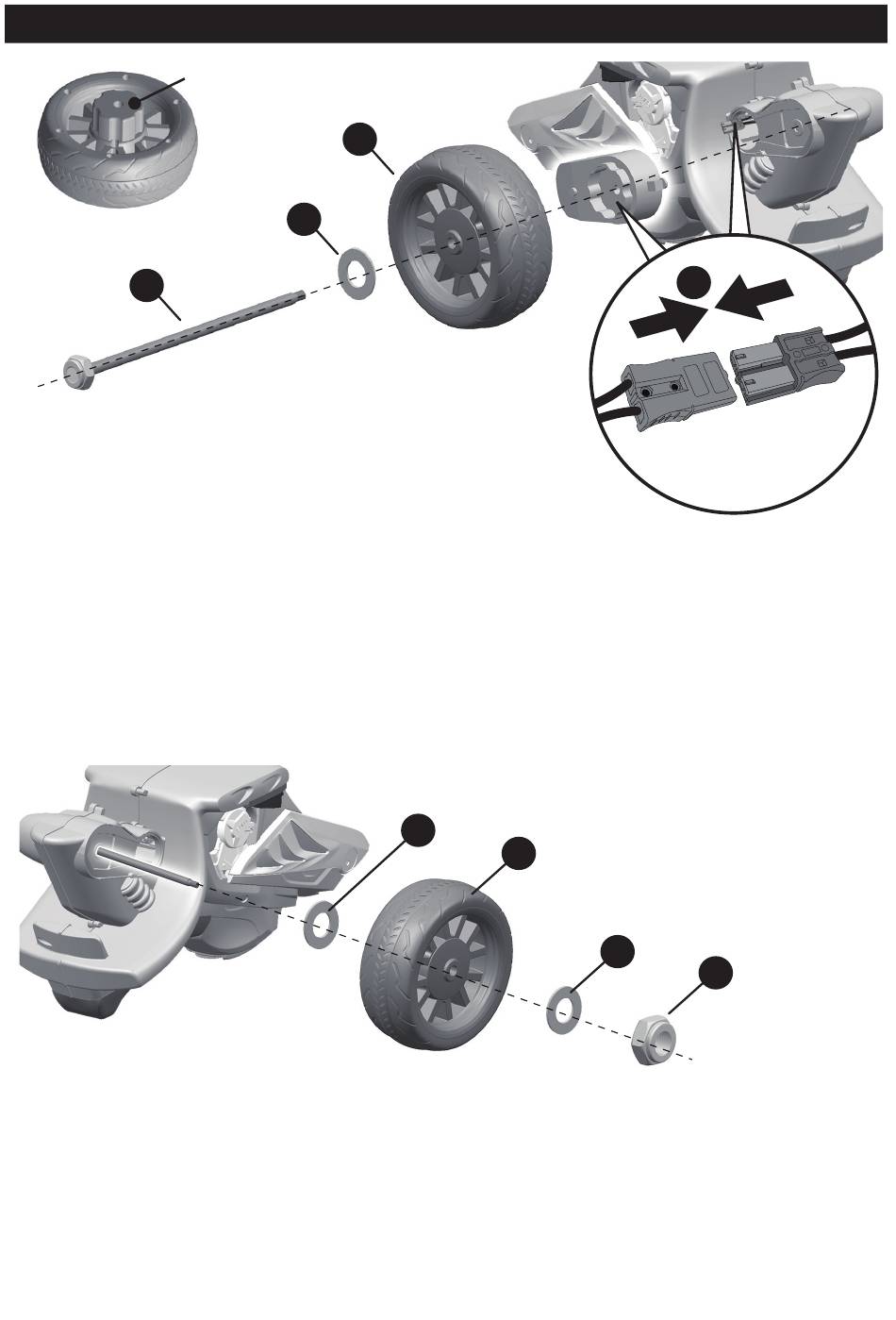

Remove all the parts from the rear axle. Turn the vehice body upside down.
1. Slide a Ø8 washer onto the rear axle.
2. Slide a driving wheel (gear side inward) onto the rear axle.
3. Plug the connector on the vehicle into the connector on the motor.
4. Slide rear axle through the hole on the gear box, (ensure the driving wheel
match up with the gear box), and out through the hole on the other side of the
vehicle body.
5. Slide a Ø8 washer onto the rear axle.
6. Slide a rear wheel (gear side first) onto the rear alxe.
7. Slide a Ø8 washer onto the rear axle.
8. Tighten a lock nut to the end of the rear axle with a spanner.
HINT: An extra spanner has been provided to hold the Lock Nut on the
other side of the rear alxe while tightening the Lock Nut on the other side.
Attach the Rear Wheels │ 5
