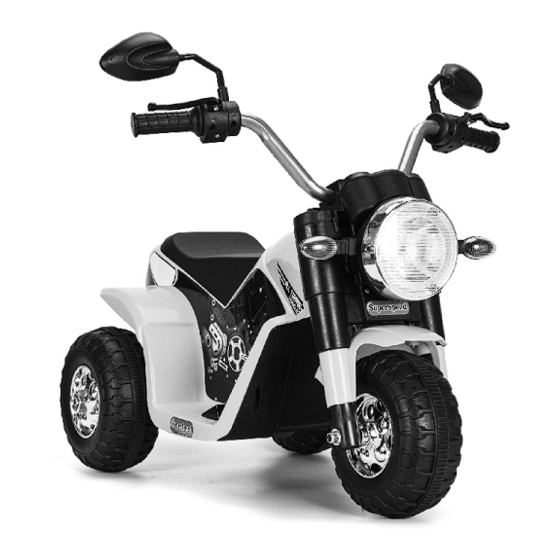

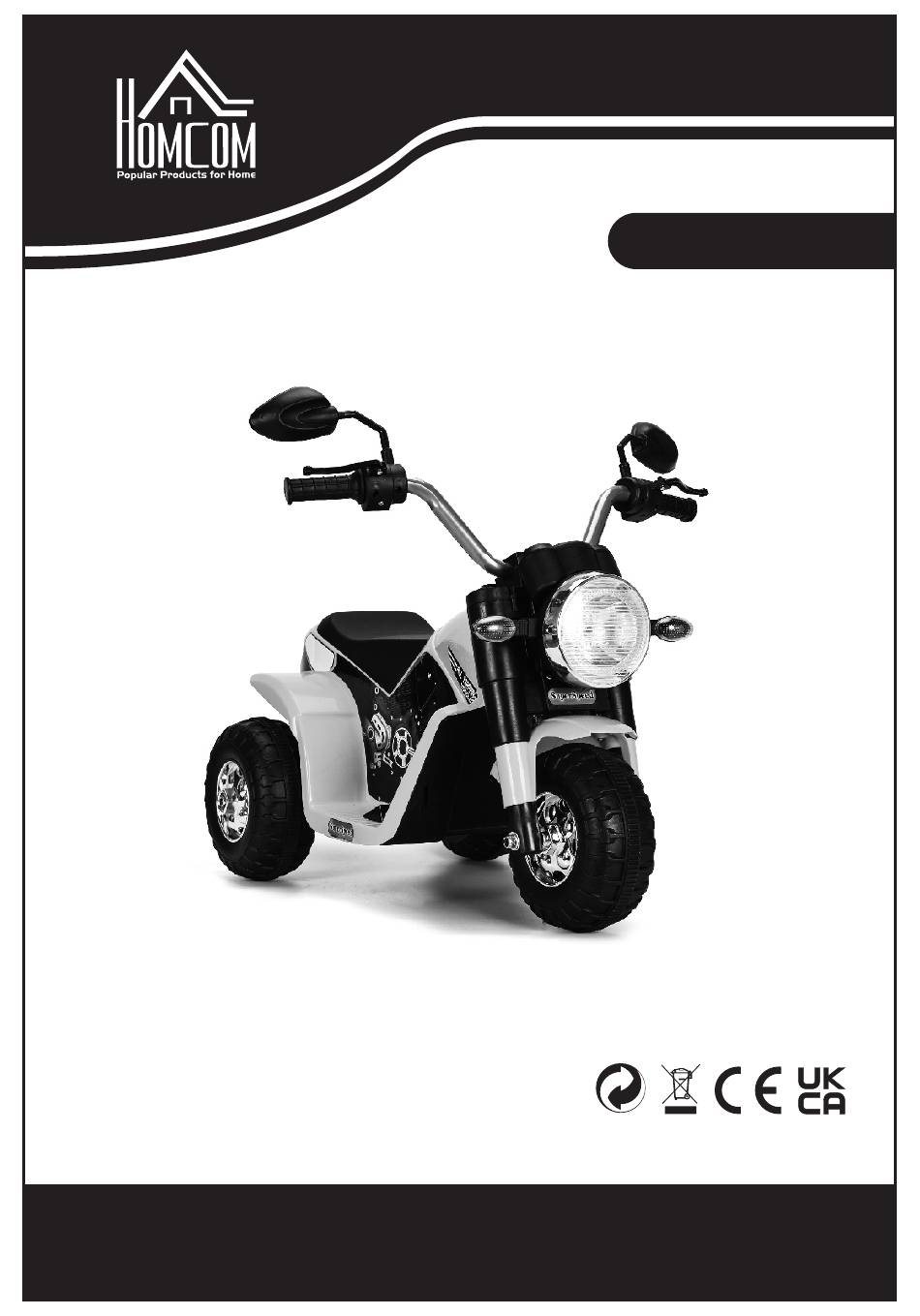

- Page 1 INfab062_UK 370-188V70 Battery Operated Tricycle *Suitable for children of 18-36 months. *Max weight: IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY ASSEMBLY INSTRUCTION...
- Page 2 Specifications: Battery： 6V,4.5Ah*1 Motor: 6V,20W,#380*1 Suitable ages: 18-36 months 25 kg Maximum weight: Speed : 2Km/h Power way: Charging type Charg: 12 hours ; Use: hours Use of time: Input AC 120~240V, 50/60Hz,0.2A ; Charger: output DC 6 V, 0.5A WARNING 1.The pictures in this instruction is only for explaining the operation and structure of the product, when there's any difference with the real product, please confirm...
- Page 3 STORAGE BATTERY INFORMATION AND MAINTENANCE ●Please charge hours before first time use. ●Please use the suitable adapter to charge storage battery, otherwise the ride-on will be damaged. ●Please charge the car once the speed is slower than normal, otherwise it will decrease storage battery life.
- Page 4 PREVENT FIRE AND ELECTRIC SHOCK: - Use the only rechargeable battery and charger supplied with your vehicle. -NEVER substitute the battery or the charger with another brand. Using another battery or charger may cause a fire or explosion. -Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
- Page 5 In order to show how to operate the car and the instruction of product we use picture to guide you. Maybe what you bought is different from the picture, please see the real one. In order to improve our quality, we will change the appearance and instruction without notification, please understand.
- Page 6 Part Name part name part name part name headstock guide book car body rearview mirror bush front wheel front wheel cover handlebar M8 wrench rear wheel brake M8 nut rear wheel cover small washer front light rear axle big washer turning light 12+1 motor...
-
Page 7: How To Assemble
How to assemble 1. Assembling front light according to arrowhead, using 2pcs 4x12 screw to tighten. 2. Passing light line through front fork(1), putting front light into front fork(2). 3. using 4pcs 4x12 screw to tighten. 4. Assembling brake according to arrowhead(1), using 2pcs 4x12 screw to tighten(2), assembling rearview mirror according to arrowhead(3). - Page 8 How to assemble and use platform fornt fork screw bush fender front axle 6. Inserting light line(1). Assembling front fork(2). Assembling bush, screw(3). Assembling platform, using 2pcs 4x12 screw to tighten(4). 7. Assembling fender(1). Using 2pcs 4x12 screw to tighten(2). Assembling front wheel cover first, putting front wheel into fender, inserting front axle through front wheel(3), then one gasket each side, using screw to tighten.
- Page 9 How to use and maintain 9. Connecting red line to battery and motor line to motor, then assembling seat. Turning on the power, pressing forward/backward switch to forward, stepping pedal switch, tricyle moves forward, turns to backward, it moves back. Car stops when you leave pedal switch. 10.
- Page 10 How to maintain, warning and charging notification 1. battery old 1. replace new battery 2. no power 2. recharge speed slow 3. overload 3. normal weight 20kg 4. rough road 4. smooth road loud motor noise gear broken factory repair 1.
