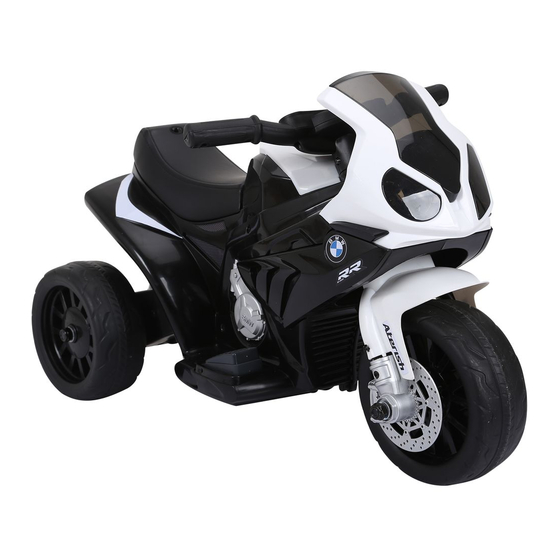

BMW S1000 RR
Children Battery Powered Trike
IN220800265V02_UK_ 370-064V01
Owner's Manual
with Assembly Instructions
Styles and colo(u)rs may vary.
Made in China.
The owner's manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
Advertisement
Table of Contents
Related Manuals for HOMCOM BMW S1000 RR
Summary of Contents for HOMCOM BMW S1000 RR
- Page 1 BMW S1000 RR Children Battery Powered Trike IN220800265V02_UK_ 370-064V01 Owner’s Manual with Assembly Instructions Styles and colo(u)rs may vary. Made in China. The owner’s manual contains important safety information as well as assembly, use and maintenance instructions. The Ride-on Car must be assembled by an adult who has read and understands the instructions in this manual.
- Page 2 About Your New Ride-On │ 1 On the purchase of your new Trike This ride-on car will provide your child with many miles of riding of enjoyment. To help assure you and your rider a safe ride we ask you to please read this manual carefully, and keep it for future reference.
-
Page 3: Parts List
Parts List │ 2 PART PART NAME Q’ty (pcs) REMARKS Vehicle body Faceguard Handle bar M5x35 machine screw Ø5 nut Charger Gear box Rear wheel Ø8 washer Lock nut Front wheel assembly Spanner Rear axle... -
Page 4: Parts Diagram
Parts Diagram │ 3... -
Page 5: Before Assembly
Before Assembly │ 4 WARNING! • ADULT ASSEMBLY REQUIRED. • Always remove protective material and poly bags and dispose before assembly. • Make sure that the power switch is turned “OFF” before assembling the ride- • Before first time use, charge the battery for at least 4 to 6 hours. •... -
Page 6: Attach The Rear Wheels
Attach the Rear Wheels │ 5 Gear side Driving wheel Motor connector Vehicle connector Remove all the parts from the rear axle. Turn the vehice body upside down. 1. Slide a Ø8 washer onto the rear axle. 2. Slide a driving wheel (gear side inward) onto the rear axle. 3. -
Page 7: Attach The Handle Bar
Attach the Handle Bar │ 6 Front fork Remove the M5x35 machine screw and Ø5 nut from the end of the front fork. Turn the vehicle body upright. 1. Insert the front fork into the opening on the front of the vehicle body from the bottom side, and out through the hole on the top of the vehicle. - Page 8 Attach the Faceguard │ 7 If you your vehicle with the sound function, follow the steps 1-4 to add the batteries (not included). Refer to the battery information on page 3. 1. With a small screwdriver remove the screw on the battery cover on the faceguard.
- Page 9 Attach the Faceguard │ 8 Tab B Tab C Stoper Stoper Tab A Hole C Hole B Hole A 1. Plug the light wire connector on the faceguard into the connector on the vehicle. 2-3. Insert the tab A on the faceguard into the biggest hole (A) on the vehicle. Then fit the tab B &...
-
Page 10: Connect The Power Supply
Connect the Power Supply │ 9 1. Using a screwdriver to remove the screw on the seat back. 2. Remove the seat. 3. Plug the red connector into the terminal on battery as shown. 4. Replace the seat. -
Page 11: Rules For Safe Riding
Safety │ 10 WARNING! PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties. - Page 12 Use Your Trike │ 11 1. Sounds buttons(if equipped): Press for sounds playing. 2. Foot pedal: Applies power (speed) to the vehicle.
- Page 13 Charging │ 12 ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY! WARNING! • PREVENT FIRE AND ELECTRIC SHOCK: - Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger may cause a fire or explosion. - Do not use the battery or charger for any other product.
- Page 14 Charging │ 13 1. Plug the charger port into the input socket. (the socket is at the back of the vehicle) 2. Plug the charger plug into a wall outlet. The battery will begin charging. WARNING! This product with Charging Protection: when charging, all functions will be cut off! Only an adult can charge and recharge the battery!
-
Page 15: Battery Replacement And Disposal
Battery Replacement & Fuse │ 14 The battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for 20 seconds and then turned ON again. -
Page 16: Troubleshooting Guide
Troubleshooting Guide │ 15 Possible Cause Solution Problem Vehicle does not run Battery low on power Recharge battery. Thermal fuse has tripped Reset fuse, see <Fuse> Check that the battery connectors are firmly plugged Battery connector or wires into each other. If wires are loose around the motor are loose contact your distributor please. - Page 17 Maintaining │ 16 • It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential hazard, such as the battery, charge,cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.
