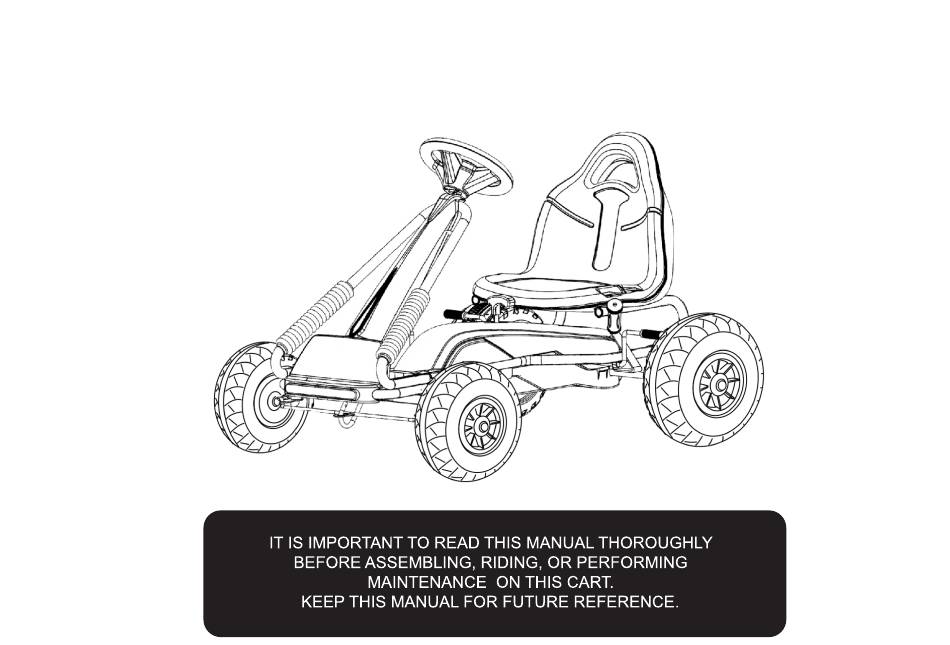

- Page 1 ITEM NAME: PEDAL GO CART KEYCODE: 43164462...
-
Page 2: Safety Instructions
WARNING: For the safety of your child, please read all warnings and assembly instructions carefully. Keep this manual for future reference. SAFETY INSTRUCTIONS • Never leave the child unattended while using the go cart. Adult supervision is required at all times. •... - Page 3 ADULT ASSEMBLY REQUIRED This product contains small parts that can be hazardous to children. Please keep children away during assembly. Please dispose of all packaging materials responsibly. RECOMMENDED AGE: 3-7 YEARS LOAD CAPACITY: 30 KGS NOTICE: Front Panel or wheel cover may vary from image shown. The owner’s manual contains important safety information as well as assembly, use and maintenance instructions.
- Page 4 NAME OF GO CART PARTS PRODUCT MAY VARY FROM IMAGE SHOWN BELOW. STEERING WHEEL STEEL FRAME SEAT FRONT PANEL NUMBER PLATE PEDAL BODY STEERING ROD WHEEL...
-
Page 5: Hardware List
CHECK THE PART LIST BELOW BEFORE ASSEMBLY BODY FRAME - 1PC SEAT - 1PC FRONT PANEL- 1PC NUMBER PLATE - 1PC STEEL FRAME - 1PC STEERING WHEEL - 1PC STEERING ROD - 1PC HARDWARE LIST TOOLS REQUIRED M5 WASHER M5 x 40mm M5 x 12mm SELF LOCKING WRENCH... - Page 6 STEEL FRAME TO BODY ASSEMBLY Attach the steel frame to the Go Cart body and secure with 4 pcs of M5 x 40mm bolts, 4 pcs washer and 4 pcs of nut.
- Page 7 ASSEMBLE THE FRONT PANEL AND STEERING WHEEL 1. Insert the steering rod through the hole (bottom of the body) and make sure it comes through the centre hole of the frame. 2. Attach the steering rod hook to the steel frame as shown in the picture. Lock the front panel to the body and then make the steering rod going through the steel frame and front panel.
-
Page 8: Assemble The Seat
ASSEMBLE THE SEAT Attach the seat to the body with 4 pcs of M5 x 40mm bolts, 4pcs of washers and 4 pcs of nuts as shown in the picture. - Page 9 NOTICE ON MAINTENANCE • It is the responsibility of the adult/parent to check the main parts of the go cart before use. Regularly examine for potential hazard such as loosen screws and parts. If the go cart is damaged, it must not be used until it is repaired. •...
Need help?
Do you have a question about the PEDAL GO CART and is the answer not in the manual?
Questions and answers

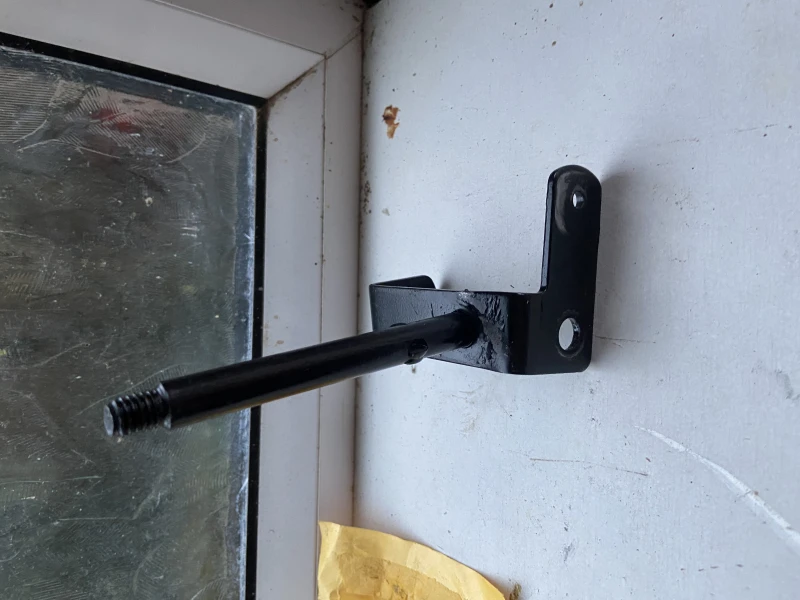

Where can I get a replacement for this part
