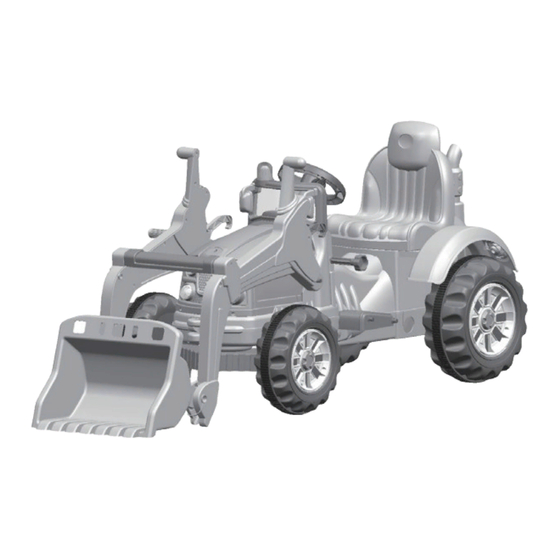

CHILDREN'S ELECTRIC RIDE-ON
Styles and colours may vary.
Made in China.
The owner's manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
TYPE A
TYPE C
Owner's Manual
with Assembly Instructions
TYPE B
TYPE D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHILDREN’S ELECTRIC RIDE-ON A and is the answer not in the manual?

Questions and answers

Related Manuals for HOMCOM CHILDREN’S ELECTRIC RIDE-ON A

Summary of Contents for HOMCOM CHILDREN’S ELECTRIC RIDE-ON A

  • Page 1 CHILDREN’S ELECTRIC RIDE-ON TYPE A TYPE B TYPE D TYPE C Owner’s Manual with Assembly Instructions Styles and colours may vary. Made in China. The owner’s manual contains important safety information as well as assembly, use and maintenance instructions. The Ride-on Car must be assembled by an adult who has read and understands the instructions in this manual.
  • Page 2 About Your New Ride-On │ 1 On the purchase of your new Ride-On. This ride-on car will provide your child with many miles of riding of enjoyment. To help assure you and your rider a safe ride we ask you to please read this manual carefully, and keep it for future reference.
  • Page 3 Parts List of vehicle body │ 2 Q’ty (pcs) PART PART NAME REMARKS Gear box 1pc labeled “L”, and 1pc labeld “R” Rear driving wheel Ø12 washer Steering plate Inner bushing Front wheel Outer bushing Ø10 Locknut Vehicle body Steering column Front axle Rear axle Seat...
  • Page 4 Parts Diagram of Vehicle Body │ 3...
  • Page 5 Parts Diagram of Bucket │ 4 TYPE A The follow illustration is only for TYPE A. 1. Ø10 locknut *2 7. Boom linkage *1 2. Inner bushing *2 8. Bucket tip *2 3. Ø12 rod *1 9. Bucket cover *2 4.
  • Page 6 TYPE B Parts Diagram of Thumb Bucket │ 5 The follow illustration is only for TYPE B. 1. Ø10 locknut *2 7. Boom linkage *1 2. Inner bushing *2 8. Bucket tip *2 3. Ø12 rod *1 9. Bucket cover *2 4.
  • Page 7 Parts Diagram of Tipper │ 6 TYPE C The follow illustration is only for TYPE C. 1. Tipper lock *1 2. Tipper *1 3. Ø8 rod *1 4. Ø8 washer *2 5. Ø8 locknut *2 6. Vehicle body of Type C *1 Longest: Rear axle Shorter: Front axle Shortest: Ø8 rod...
  • Page 8 Before You Begin Assembly │ 7 WARNING! WARNING! FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE. ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE. •...
  • Page 9 Attach the Rear Axle │ 8 Remove all the parts from the rear axle. 1. Slide a Ø12 washer onto the rear axle from the longer end. 2. Insert the rear axle with a Ø12 washer into the hole on the vehicle body from the right hand side.
  • Page 10 Attach the Rear Wheels │ 9 HINT: If your vehicle is Two Wheels Driving Type, see the next page please. Rear axle Rear wheels are more bigger than front wheels Rear driving wheel 1,2. Slide the gear box onto the rear axle (Left Side). Plug the connector on motor into the connecotr on the vehicle body.
  • Page 11 Attach the Rear Wheels │ 10 Rear wheels are more bigger Rear axle than front wheels Rear driving wheel 1,2. Slide the gear box onto the rear axle (Left Side). “R” labeled gear box should be fit to the “R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle body.
  • Page 12 Attach the Steering Plate │ 11 1,2. Turn the steering plate until it can be fit to the vehicle body. 3. Turn the steering plate to line up the holes in the steering plate and the holes in the vehicle body. 4.
  • Page 13 Attach the Front Wheels │ 12 Front wheel, more smaller than Rear wheel. Front axle Tools required: Spanner Remove all the parts from the front axle. 1. Slide a Ø12 washer onto the front axle. 2. Slide the inner bushing onto the front axle. 3.
  • Page 14 Attach the Steering Column │ 13 Steering Steering column plate groove A groove B groove A 1. Turn the vehicle body on its side, insert the steering column through the groove A on the steering plate, the hole in the vehicle body and out through the hole on the dash. 2.
  • Page 15 Attach the Steering Wheel │ 14 End of the steering column ● Turn the vehicle body over. Remove the M5x40 machine screw and Ø5 nut from the steering wheel with a screwdriver. 1. Place the steering wheel over the steering column, protruding from the middle of the steering wheel base.
  • Page 16 Connect the Powr Supply │ 15 Fuse box BATTERY 1. Plug the red fuse connector into the terminal on battery.
  • Page 17 Attach Seat & Rear Exhaust │ 16 1. Fit the tabs at back of the seat to the holes on the vehicle body. 2. Insert two Ø4x16 screws and tighten with a screwdriver. 3. Insert the tabs on the rear exhaust into the holes on the vehicle body, and push until you hear it “click”...
  • Page 18 Assemble the Bucket-1 │ 17 TYPE A The follow steps are only for TYPE A. 1. Fit the bucket into boom (right), 2. Fit the bucket cover to the bucket, 3. Fit the bucket lock (ring end) against to the bucket, 4.
  • Page 19 Assemble the Bucket-2 │ 18 TYPE A The follow steps are only for TYPE A. 5. Insert the bucket tip through the hole in holes in the boom (right), the holes in the bucket lock, the hole in the bucket and out the hole in the boom (right), 6.
  • Page 20 Assemble the Bucket-3 │ 19 TYPE A The follow steps are only for TYPE A. 1. Fit the both ends of boom linkage into the slots in each boom. 2. Insert the Ø4x16 screw through the hole on the boom and into the boom linkage, tighten the screw.
  • Page 21 Assemble the Bucket-4 │ 20 TYPE A The follow steps are only for TYPE A. Ø10 lock nut Ø12 washer Ø12 rod Inner bushing Inner bushing 1. Insert the Ø12 rod through hole on boom (right). 2. Slide a inner bushing onto the Ø12 rod. 3.
  • Page 22 Assemble the Thumb Bucket-1 │ 21 TYPE B The follow steps are only for TYPE B. 1. Fit the bucket into boom (right), 2. Fit the bucket cover to the bucket, 3. Fit the bucket lock (ring end) against to the bucket, 4.
  • Page 23 Assemble the Thumb Bucket-2 │ 22 TYPE B The follow steps are only for TYPE B. 5. Insert the bucket tip through the hole in holes in the boom (right), the holes in the bucket lock, the hole in the bucket and out the hole in the boom (right), 6.
  • Page 24 Assemble the Thumb Bucket-3 │ 23 TYPE B The follow steps are only for TYPE B. 1. Fit the both ends of boom linkage into the slots in each boom. 2. Insert the Ø4x16 screw through the hole on the boom and into the boom linkage, tighten the screw.
  • Page 25 Assemble the Thumb Bucket-4 │ 24 TYPE B The follow steps are only for TYPE B. Ø10 lock nut Ø12 washer Ø12 rod Inner bushing Inner bushing 1. Insert the Ø12 rod through hole on boom (right). 2. Slide a inner bushing onto the Ø12 rod. 3.
  • Page 26 Assemble the Tipper │ 25 TYPE C The follow steps are only for TYPE C. 1. Fit the tipper onto the front end of the vehicle body. 2. Insert a Ø8 rod through the hole in the tipper, the hole in the vehicle body and out the hole in the tipper.
  • Page 27 Saftely │ 26 WARNING! PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
  • Page 28 Use Your Ride-on │ 27 IMPORTANT! Always stop vehicle when changing the speed or direction to avoid damage the gears and motor. 1. TYPE 1WD: None switch here. TYPE 2WD: Power button. Turns the vehicle on and off. 2. Forward/reverse switch: Changes the direction that vehicle moves from forward to reverse.
  • Page 29 Charging │ 28 ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY! WARNING! • PREVENT FIRE AND ELECTRIC SHOCK: - Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger may cause a fire or explosion. - Do not use the battery or charger for any other product.
  • Page 30 Charging │ 29 • If your ride-on with a the magnitude of voltage Digital voltmeter(IF EQUIPPED), will tell you how much power is remaining in the battery when you must recharge the battery. Make sure the vehicle is stop! BATTERY MAGNITUDE OF VOLTAGE BATTERY STATE ≥...
  • Page 31 Battery Replacement & Fuse │ 30 The battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for 20 seconds and then turned ON again.
  • Page 32 Troubleshooting Guide │ 31 Possible Cause Solution Problem Vehicle does not run Battery low on power Recharge battery. Thermal fuse has tripped Reset fuse, see <Fuse> Check that the battery connectors are firmly plugged Battery connector or wires into each other. If wires are loose around the motor are loose contact your distributor please.
  • Page 33 Maintaining │ 32 • It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential hazard, such as the battery, charge,cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.
  • Page 34 Our products are suitable for ASTM F963; GB6675; EN71 and EN62115 standard.

This manual is also suitable for:

Children’s electric ride-on bChildren’s electric ride-on cChildren’s electric ride-on d
