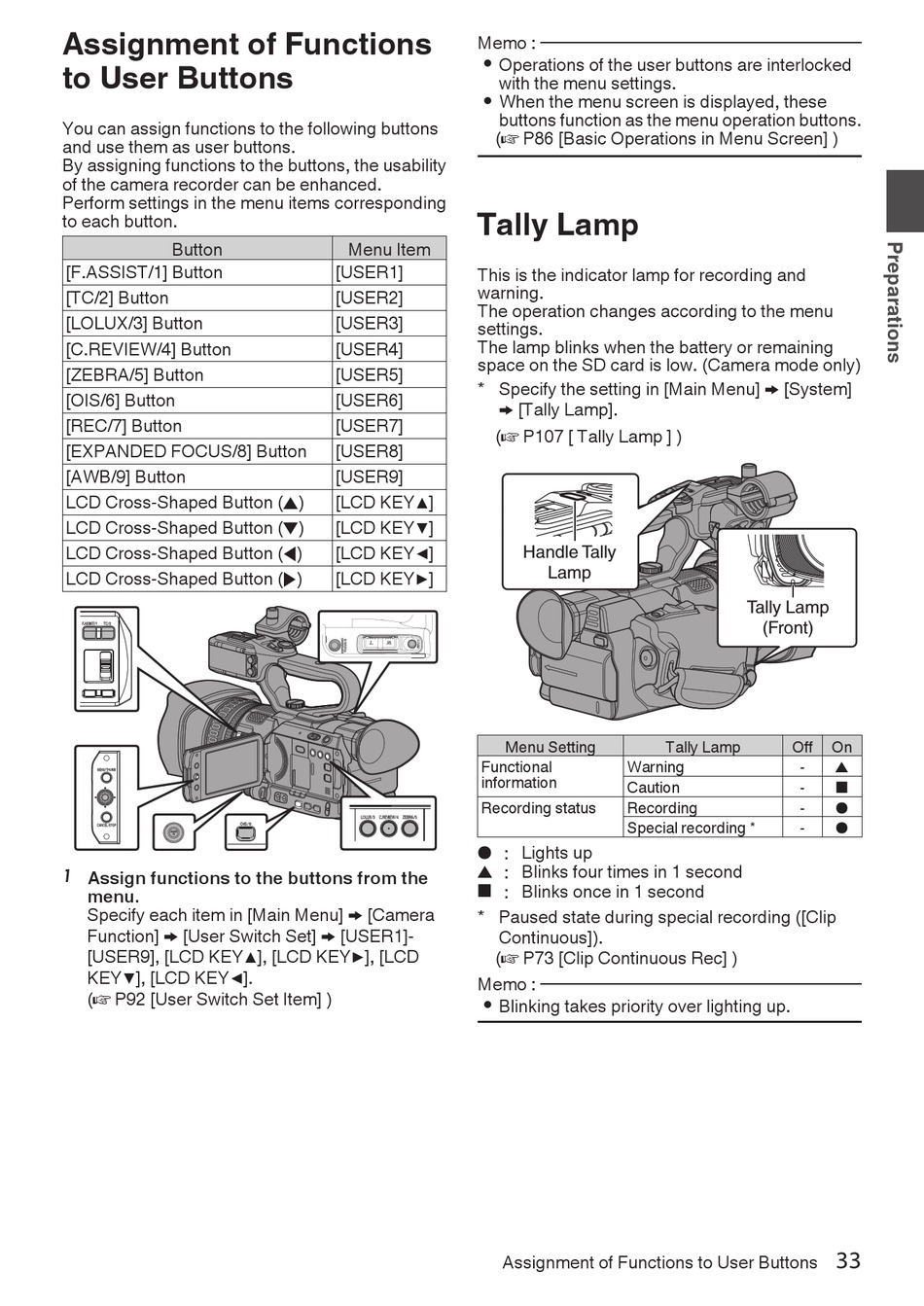

Assignment of Functions
to User Buttons
You can assign functions to the following buttons
and use them as user buttons.
By assigning functions to the buttons, the usability
of the camera recorder can be enhanced.
Perform settings in the menu items corresponding
to each button.
Button
[F.ASSIST/1] Button
[TC/2] Button
[LOLUX/3] Button
[C.REVIEW/4] Button
[ZEBRA/5] Button
[OIS/6] Button
[REC/7] Button
[EXPANDED FOCUS/8] Button
[AWB/9] Button
LCD Cross-Shaped Button (J)
LCD Cross-Shaped Button (K)
LCD Cross-Shaped Button (H)
LCD Cross-Shaped Button (I)
.
1 Assign functions to the buttons from the
menu.
Specify each item in [Main Menu] B [Camera
Function] B [User Switch Set] B [USER1]-
[USER9], [LCD KEY▲], [LCD KEY▶], [LCD
KEY▼], [LCD KEY◀].
(A P92 [User Switch Set Item] )
Memo :
Operations of the user buttons are interlocked
0
with the menu settings.
When the menu screen is displayed, these
0
buttons function as the menu operation buttons.
(A P86 [Basic Operations in Menu Screen] )

Tally Lamp

Menu Item
[USER1]
This is the indicator lamp for recording and
warning.
[USER2]
The operation changes according to the menu
[USER3]
settings.
The lamp blinks when the battery or remaining
[USER4]
space on the SD card is low. (Camera mode only)
[USER5]
* Specify the setting in [Main Menu] B [System]
[USER6]
B [Tally Lamp].
[USER7]
(A P107 [ Tally Lamp ] )
[USER8]
[USER9]
[LCD KEY▲]
[LCD KEY▼]
[LCD KEY◀]
[LCD KEY▶]
.
Menu Setting
Functional
information
Recording status
R : Lights up
J : Blinks four times in 1 second
o : Blinks once in 1 second
* Paused state during special recording ([Clip
Continuous]).
(A P73 [Clip Continuous Rec] )
Memo :
Blinking takes priority over lighting up.
0

Assignment of Functions to User Buttons

Handle Tally
Lamp
Tally Lamp
Warning
Caution
Recording
Special recording *
Tally Lamp
(Front)
Off
On
-
J
-
o
-
R
-
R
33
