NIVELCO EchoTREK S-300 User Manual

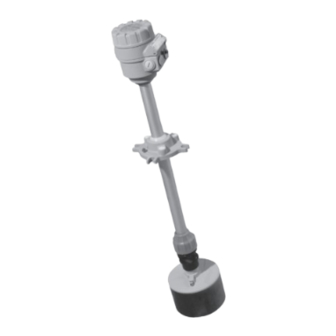

Compact ultrasonic level transmitter series for free flowing solids
Hide thumbs
Also See for EchoTREK S-300:
- Installation and programming manual (48 pages) ,
- User and programming manual (50 pages)
Related Manuals for NIVELCO EchoTREK S-300
Summary of Contents for NIVELCO EchoTREK S-300
- Page 1 USER’S MANUAL Programming of the units is to perform according to the 3d edition of the INSTALLATION and PROGRAMMING MANUAL...
- Page 2 PRINCIPLES ULTRASONIC LEVEL MEASUREMENT Angle of repose DIST=distance (measured) LEV=( level calculated H-DIST) VOL= volume (calculated from LEV)
- Page 3 EchoTREK! A Total beam angle of 5° at –3 dB is a feature of all Nivelco’s ultrasonic sensors designed for the level measurement of free flowing solids. This uniquely narrow beam angle ensures reliable measurement in narrow silos with uneven side walls or sometimes even in the presence of dusting.
-
Page 4: Technical Data
2. TECHNICAL DATA ENERAL DATA Product name EchoTREK STD/SBD-300 series Sensor material Closed cell Polyurethane foam sensor face (PUR), Polypropylene sensor housing, Aluminium mounting accessories Housing material Powder paint coated Aluminium Process temperature -30°C ... +75°C Ambient temperature -30°C ... +60°C, with SAP-100 programming module -25°C ... +60°C Pressure (Absolute.) 0.7 ... - Page 5 SAP-100 PROGRAMMING AND DISPLAY MODULE Field indication 6 digits, icons and bargraph, Custom LCD Ambient temperature -25°C … +60°C Housing material PBT fibre-glass reinforced plastic, flame-retardant (DuPont 2.1 A CCESSORIES • User’s Manual • Installation and Programming Manual 3d edition •...
- Page 6 2.3 D IMENSIONS Ball-joint housing S D-33J- S D-33X- S D-31J S D-31X- (view from above) S D-34J- S D-34X- Ball-joint Ball-joint housing housing...
-
Page 7: Installation
3. INSTALLATION OSITIONING Sunshade Selecting optimal location for the transmitter various considerations should be made. If the measured material is granule (material size > 5 mm) and the tank roof is dome shaped or conical, do not install the transmitter in the centre of the tank/silo. In general the transmitter can be installed on the radius r= (0,3 …... - Page 8 Mounting EchoTREK versions S -33J and S -34J 1. Check the split flange for matching the bore-holes with that of the counter-flange on the silo 2. Remove the split insertion from the flange and put the flange around the aiming arm between the sensor and the Alu-base. 3.
- Page 9 Diameter of the opening Thickness of the roof 160 mm 110 mm 190 mm 150 mm 230 mm 200 mm 300 mm 280 mm 340 mm 300 mm Illustration for mounting IMING OF THE CHOTREK To reduce week signal reflection from the material surface caused by an angle of repose building due to the filling and/or emptying process, it is recommended to tilt the sensor by the aiming arm of the transmitter.
-
Page 10: Electrical Connections
Aiming should also be tested with full silo, since due to the great angle of repose the echo might be weak despite of the fact that level is near to the sensor. In such cases a reasonable compromise of aiming should be achieved that provide acceptable echo in every state of the filling. -
Page 11: Maintenance & Repair
5. PROGRAMMING Modification of the parameters (programming) is required to customise the transmitter to the actual parameters of the tank/silo. Programming of the EchoTREK is described in the Installation and Programming Manual (3d edition)! Programming can be performed by the plug-in programming and indicator module SAP-100 (See chapter 5.2 and 6 of a.m. manual). EchoTREK of the series SB - is containing this module. -
Page 12: Warranty
8. WARRANTY All Nivelco products are warranted free of defects in materials or workmanship for a period of two years from the date of purchase. Repairs under guarantee are carried out at the Manufacturer's premises. The Purchaser is liable for costs of dismantling and re-installation as well as transport costs.
