Porting X-CUBE-SBSFU onto another board

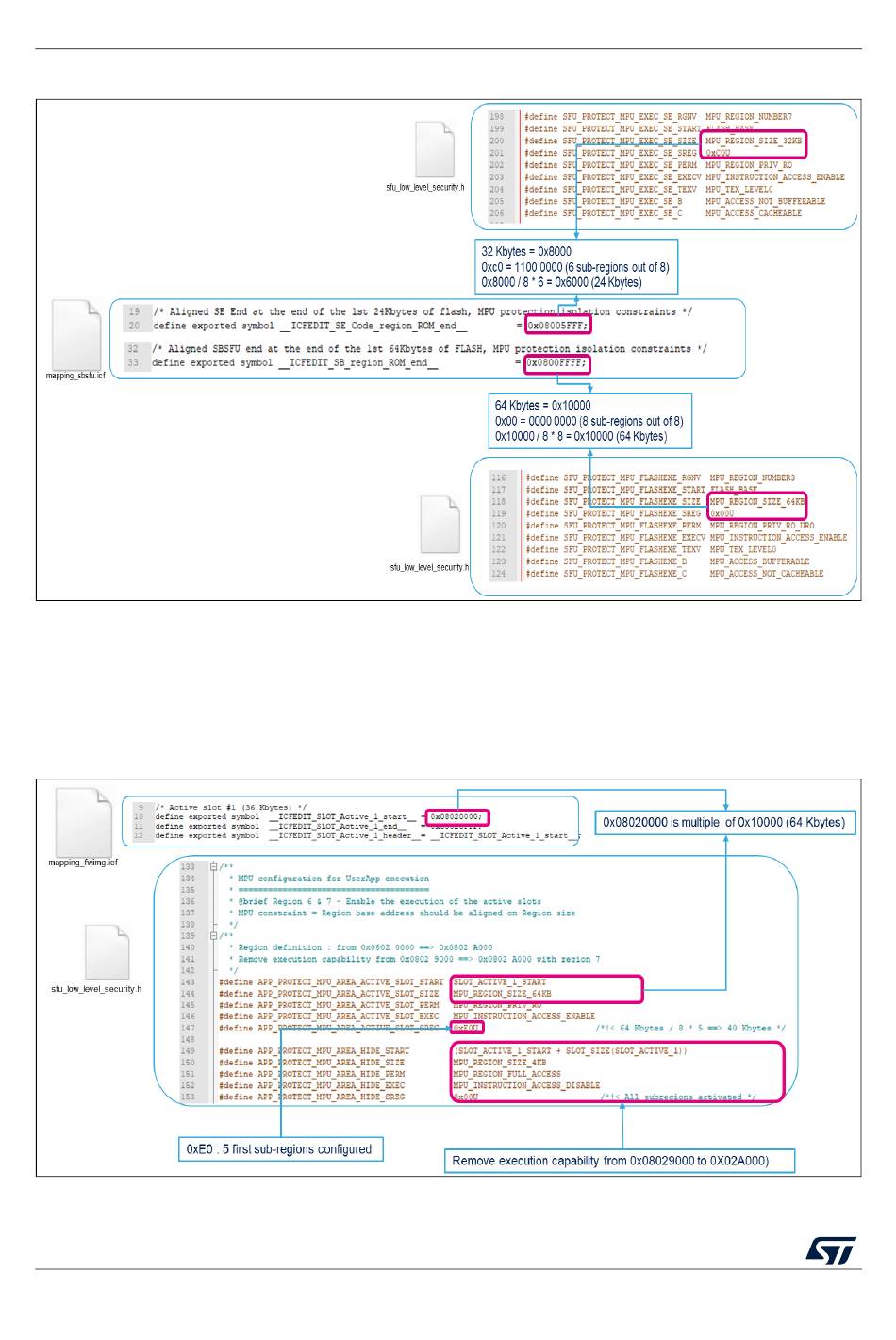

Figure 4. Mapping constraints with MPU isolation (NUCLEO-G071RB example)

Another typical use case is the MPU configuration of the active-slot region to authorize user

application execution.

L073RZ.

12/49

Figure 5

shows how to respect the MPU constraints on NUCLEO-

AN5056 Rev 8

AN5056
