Tips for debugging
The impact of memory mapping adaptation on security peripheral configurations must be
checked even though it is automatically computed. For example, check the WRP
configuration using STM32CubeProgrammer (STM32CubeProg) as shown in
6.3

Debugging SECoreBin

To debug inside SECoreBin, the SBSFU project option must be changed to load SECoreBin
symbols. This is performed in the debugger menu as presented in
Browse to select file Project.out
Set Offset to 0
Check the Debug info only box
32/49

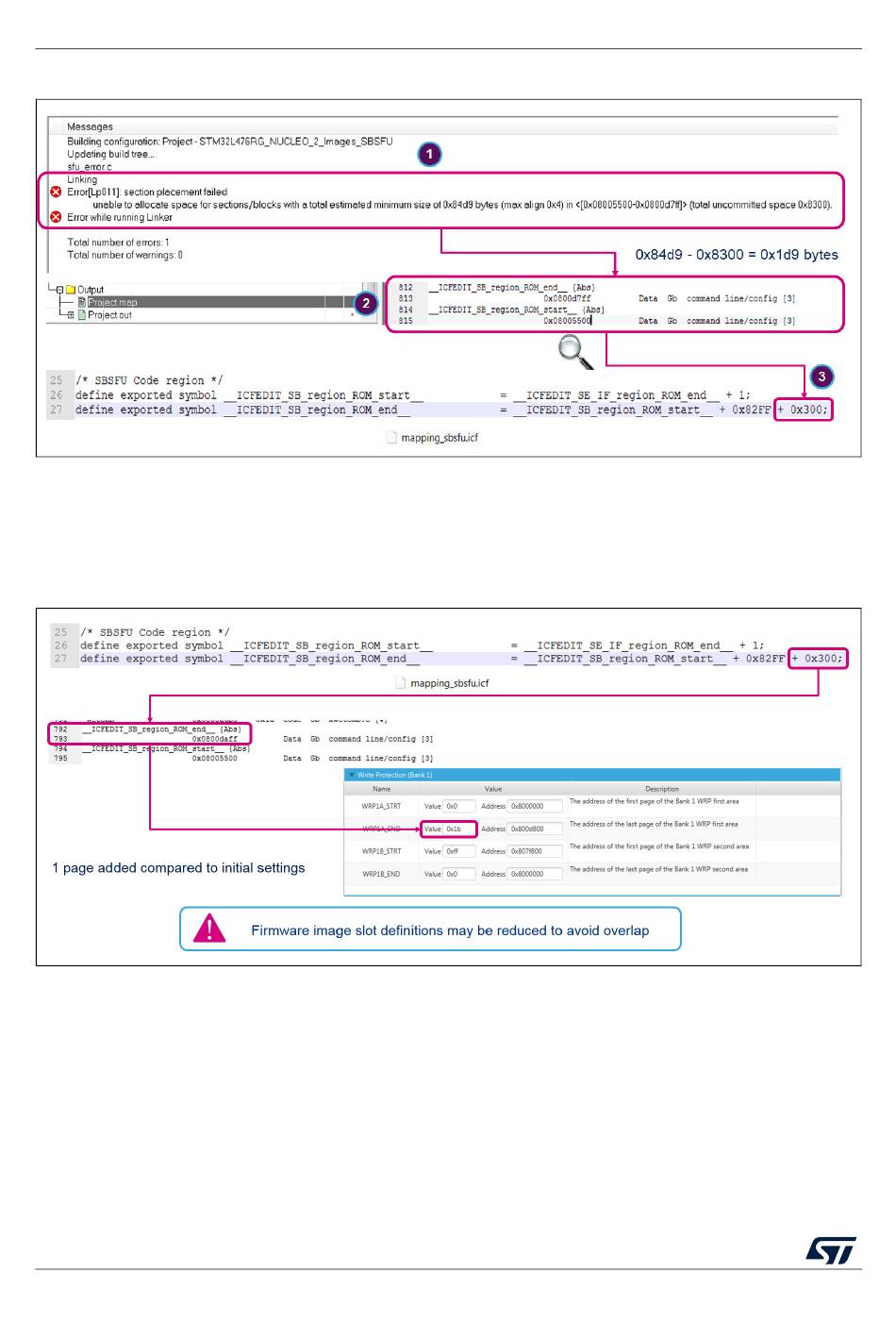

Figure 28. Memory mapping adaptations

Figure 29. Checking the WRP protection

AN5056 Rev 8
AN5056
Figure
29.
Figure
30:
