Usage and Maintenance Instructions
Thank you for purchasing your CareCo Daytona Scooter.
We are delighted you have chosen CareCo (UK) Ltd for your mobility needs.
Standard Packing List:
1 Owner's Manual
•
2 Keys
•
2 x 50 amp Batteries
•
Battery Charger
•
1 Basket
•
2 Armrests
•
1 Headrest
•
2 Mirrors
•
1 Scooter Power Unit
•
www.careco.co.uk

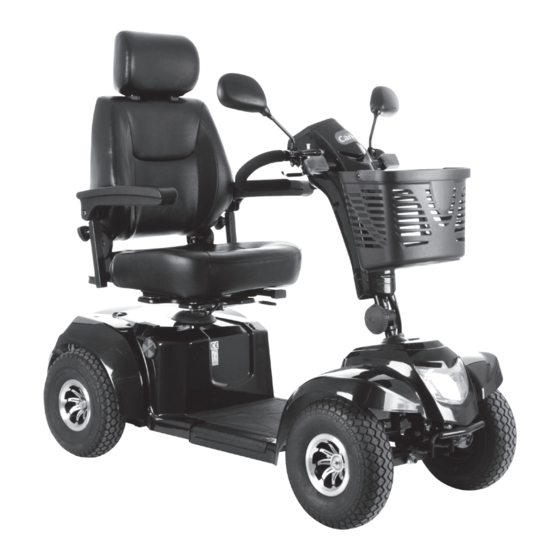

Daytona XLR Mobility Scooter - MS03038
Product Code: MS03038
CareCo, Hubert Road, Brentwood, Essex, CM14 4JE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CareCo Daytona XLR
Summary of Contents for CareCo Daytona XLR
- Page 1 Usage and Maintenance Instructions Daytona XLR Mobility Scooter - MS03038 Product Code: MS03038 Thank you for purchasing your CareCo Daytona Scooter. We are delighted you have chosen CareCo (UK) Ltd for your mobility needs. Standard Packing List: 1 Owner’s Manual •...
- Page 2 Disclaimer We ask that you read this manual completely before operating your new Daytona Scooter. CareCo (UK) Ltd cannot be held responsible for any damage or injury incurred due to improper or unsafe use of the CareCo Daytona Scooter. CareCo (UK) Ltd specifically disclaims responsibility for any bodily injury or property damage that may occur during any use that does not comply with applicable laws Congratulations on the purchase of your new Daytona Scooter.
-
Page 3: Table Of Contents
Daytona XLR Mobility Scooter - MS03038 Contents Preface and introduction Safety notice 2.1 Before driving 2.2 While driving 2.3 Labelling Parts information Parts description Operation 4.1 Control panel 4.2 How to operate your scooter Battery charging and care 5.1 Charging the battery 5.2 Battery 13... -
Page 4: Preface And Introduction
Daytona XLR Mobility Scooter - MS03038 1. Preface and introduction Please carefully read this owner’s manual before using your Daytona Scooter. Improper use of the vehicle could result in injury and/or traffic accidents. This owner’s manual includes operating instructions for every aspect of the scooter including assembly instructions. -
Page 5: Safety Notice
Daytona XLR Mobility Scooter - MS03038 2. Safety notice 2.1 Before driving The user needs to be familiar with the usage and operation of this vehicle before driving. Therefore, please always keep the following safety notices in mind:- The same traffic rules apply to the use of this vehicle as apply to pedestrians For your safety, please therefore follow the rules that apply to pedestrians. - Page 6 Daytona XLR Mobility Scooter - MS03038 Electrical equipment Do not use a mobile phone or other wireless communication devices whilst driving. • Always switch off the scooter and remove the ignition key before using a mobile phone. • Do not charge a mobile phone or any other electrical device from your scooter’s battery.
-
Page 7: Labelling
Daytona XLR Mobility Scooter - MS03038 Attention Do not push both RH & LH sides of the speed control lever simultaneously – control of your scooter will be affected. Do not turn the power switch to OFF while driving as this will lead to an emergency stop and possible risk of accident and injury. - Page 8 Daytona XLR Mobility Scooter - MS03038 Warning: Radio waves may affect scooter control. Radio wave sources, such as radio stations, amateur radio (HAM) transmitters, two-way radios, and mobile phones, can affect powered motorised scooters. Following the warning listed below should reduce the chance of unintended brake release or powered scooter movement which could result in serious injury.
-
Page 9: Parts Information
Daytona XLR Mobility Scooter - MS03038 3. Parts information 3.1 Parts description 1. Indicator Lamp 2. Charger Socket Cover 3. Basket Bracket 4. Tiller Adjust Lever 5. Head Lamp 6. Seat 7. Side Reflector 8. Rear Lamp 9. Anti-tip Wheel 10. -
Page 10: Operation
Daytona XLR Mobility Scooter - MS03038 4. Operation 4.1 Control panel Speed dial Horn button Indicator lamp switch Head light / rear light button Battery indicator Emergency lamp switch Indoor / outdoor switch 4.2 How to operate your scooter Power switch... - Page 11 When the batteries’ range is approximately 50% of that when new, it is time for replacements. Please contact CareCo regarding replacement batteries. If you continue to use the old batteries, the performance of your scooter may be affected.
- Page 12 Daytona XLR Mobility Scooter - MS03038 Braking Electro-magnetic brake: Release the speed control lever completely - the electromagnetic brake will be activated automatically and the scooter will stop. Warning When on a slope NEVER switch the vehicle to the freewheel mode. The electromagnetic brakes will NOT be applied and this may result in injury.
- Page 13 Daytona XLR Mobility Scooter - MS03038 Tiller Adjustment The tiller can be adjusted to suit each driver:- Loosen the lever to adjust the tiller to the required position. Then tighten the lever to secure the tiller. Main Circuit Breaker (Reset Button) When the voltage in your scooter’s batteries becomes low or the scooter is heavily strained because of excessive...
-
Page 14: Battery Charging And Care
There is a red LED present on the charger to illustrate operation. If this LED does not illuminate the charger is • defective - please contact CareCo Customer Service on 0845 611 8022 or email: cs@careco.co.uk Attention While gripping or folding the handle bar, beware of trapping fingers or hands in the handle area. - Page 15 Attention - Please follow the rules below to avoid accidents while charging:- Please use the CareCo charger only, and recharge the batteries to their full capacity every time You may damage the batteries and scooter if you use a charger which is not to the correct specification.
-
Page 16: Battery
Be sure the battery wires are connected to their correct battery terminal. Suggestions If necessary, ask for help from CareCo for advice about maintaining and replacing the battery. Contact Customer Services on 0845 611 8022 or email: cs@careco.co.uk ... -
Page 17: Inspection And Maintenance
6.2 Regular checking record To make sure your scooter is correctly serviced, contact CareCo regarding regular maintenance checks. This should be at intervals of six months following an initial inspection after one month. These checks may be chargeable. -
Page 18: Battery, Fuse And Tyres
If the battery charger is turned on and no LEDs are lit, check the fuse. Suggestions Ask for help from CareCo to inspect or replace the fuse, as the tiller shroud has to be removed before the fuse can be replaced. Contact Customer Services on 0845 611 8022 or email: cs@careco.co.uk Tyres The condition of the tyres depends on how you drive and use your scooter. -
Page 19: Manually Moving The Scooter
Store your Daytona scooter out of direct sunlight, rain and damp conditions. When storing for a length of time, please charge the battery to full power and then disconnect the battery terminal. For details contact CareCo Customer Services on 0845 611 8022 or email: cs@careco.co.uk 6.3 Manually moving the scooter... -
Page 20: Trouble Shooting And Specification
Daytona XLR Mobility Scooter - MS03038 7. Trouble shooting and specification Symptom Remedy The scooter will not switch on: Try recharging the batteries. Check the fuse and circuit breaker in the scooter. The scooter switches on, but the scooter will Ensure there is enough power in the batteries;... - Page 21 Daytona XLR Mobility Scooter - MS03038 activated CareCo, Hubert Road, Brentwood, Essex, CM14 4JE www.careco.co.uk...
- Page 22 Daytona XLR Mobility Scooter - MS03038 Model Reference CareCo Daytona Dimension 135 x 66 cm (L x W) Total Weight 117 kg Battery 50AH Charger Front Tyre 13” Rear Tyre 13” Driving System Direct drive the rear wheels (with differential gear)
-
Page 23: Warranty
The scooter or part having been altered from the manufacturer’s specifications or repairs having been attempted before the service agent is notified Please note CareCo’s contact details in the box below. In the event of your scooter requiring attention, contact them and give all relevant details so they can act quickly.
