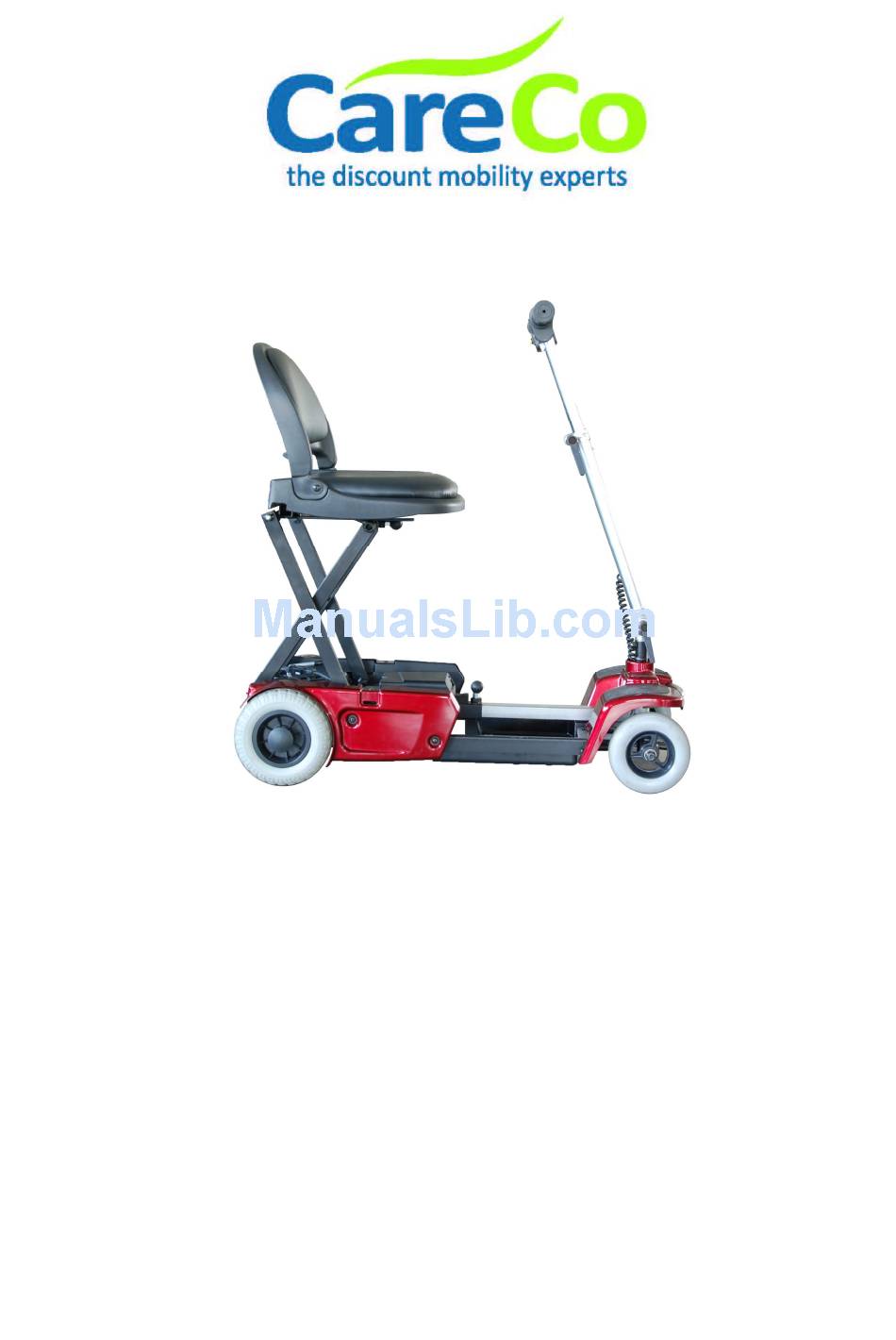

  • Page 1 SCOOTCASE Owner’s Manual CareCo (UK) Ltd Hubert Road Brentwood Essex CM14 4JE...
  • Page 2 DISCLAIMER We ask that you read this manual completely before operating your new Scootcase scooter. CareCo (UK) Ltd cannot be held responsible for any damage or injury incurred due to improper or unsafe use of the CareCo Scootcase scooter. CareCo (UK) Ltd specifically disclaims responsibility for any bodily injury or property damage that may...
  • Page 3 We at CareCo (UK) Ltd know that you have chosen a scooter that will give you years of dependable operation and will also enhance the quality of your life by providing you with the mobility to experience an active daily lifestyle.

  • Page 4: Table Of Contents

    5. How to assemble & disassemble the lithium battery-----------------------------16-17 6. Routine Maintenance / Daily Checks / Trouble Shooting-----------------------18-20 7. Controller Error Messages----------------------------------------------------------- 21 8. Scootcase Specification ------------------------------------------------------ ---------22 9. Warranty Declaration----------------------------------------------------------------- 23 Warning: To avoid danger, please always use the “ORIGINAL CHARGER”...

  • Page 5: Preface

    I. Preface： ： ： ： • This handbook is for the CareCo Scootcase. • The following symbols are used in the handbook; we strongly recommend that you thoroughly review the following notifications of symbols. Warning: Wrong operation may cause injury or death.

  • Page 6: How To Operate Your Scooter

    Connect the lithium battery cable to the scooter power plug Scooter power Lithium battery to power the scooter. plug cable Charge batteries immediately after connecting <<<<<<>>>>>> Control box： ： ： ： Power Signal Model：Scootcase Key Switch Horn Button Forward/Backward Switch Button...
  • Page 7 Operation： ： ： ： Light off Light on Key not fully inserted in the keyhole Key inserted in the keyhole Flash indicates low battery power： ： ： ： (Refer to figures below) 2 seconds When LED flashes, it means 30% battery power is left and scooter can run about 1 mile.
  • Page 8 How to use the accelerator (1)： ： ： ： Direction to release the accelerator The accelerator Direction to speed How to use the accelerator (2)： ： ： ： To speed up the scooter, turn the accelerator in the direction of the green arrow. How to use the accelerator (3)：...

  • Page 9: Functions (Including Battery Charging)

    4. Functions： ： ： ： Tiller adjustment mechanism： ： ： ： Loosen the adjustment mechanism to alter the tiller to the preferred height, and then tighten the bolt. Tiller folding mechanism： ： ： ： The tiller be rotated to the preferred angle finally Loosen the adjustment handle tighten the handle after adjustment.
  • Page 10 How to fold the scooter： ： ： ： Release the locking levers and lower the tiller to its lowest height Adjustable handle position Adjustable handle position after it has been adjusted. Pull out the safety pin under the seat base to lift the chair from the X structure frame –...
  • Page 11 Fold down the chair Pull up the safety knob situated Slide the scooter frame in the centre of the frame together until the safety knob clicks into position...
  • Page 12 Then fold down the tiller and adjust the locking handle until level...
  • Page 13 How to put the scooter into the suitcase： ： ： ： Loosen buckles in turn Open the suitcase Put the scooter into the suitcase Pull out the Close the suitcase and tighten buckles Press the button handle...
  • Page 14 Other functions： ： ： ： Freewheel lever position： ： ： ： ---- ‘D’ (Drive) position Attention: Please ensure freewheel lever is in ‘D’ position before you start driving. Freewheel lever position： ： ： ： ---- ‘N’ (Neutral) position When out of battery, shift the freewheel lever to ‘N’...
  • Page 15 Warning: To avoid danger please always use the “ORIGINAL CHARGER” to charge lithium batteries, and never use a lead-acid based charger. Battery charging： ： ： ： Please charge the battery in the correct procedure and check the voltage to ensure it is fully charged.

  • Page 16: How To Assemble & Disassemble The Lithium Battery

    5. How to remove & replace the lithium battery: Loosen the cable clamp and remove the battery lead Note！ Please detach the battery lead from the power lead on the scooter Detach battery cable and power lead as shown Remove or replace the lithium battery...
  • Page 17 Warning! The metal loop must be at the front edge when fastening the battery with the battery straps Tighten battery straps...

  • Page 18: Routine Maintenance / Daily Checks / Trouble Shooting

    6. Routine Maintenance / Daily Checks / Trouble Shooting 1. Daily check： ： ： ： Suggestion： Please check the following items before driving the scooter. If you have any problem, contact your dealer for a further inspection. Check Item Contents •...
  • Page 19 Check List： ： ： ： Suggestion：To maximize the service life of scooter, please make a through inspection regularly each half year according to the check list. Sixth Check Item 1 yr Month month Speed lever (forward/backward) Operation Function of button and knob Plug / Charging cable / Connector Running status / Sounds...
  • Page 20 3. Maintenance： Battery：Please contact your local authorized dealer for battery replacement. Fuse security switch：Please contact your authorized dealer for information. Tyres：The tread wear of tyres is subject to two factors - usage & environmental. Please check the depth of tyre pattern or tyre stripe, when the pattern is less than 0.5mm. Please replace it with a new tyre.

  • Page 21: Controller Error Messages

    * PG S-Drive Code Error Messages Flash Description The battery needs charging or there is a bad connection to the battery. 1 Bar Check the connections to the battery. If the connections are good, try charging the battery. There is a bad connection to the motor. Check all connections 2 Bar between the motor &...

  • Page 22: Scootcase Specification

    8. Scootcase Specification: Colour of the Optional plate Lithium battery 24V 9.5AH Battery Spec. Length of the 835 mm scooter Width of the 375 mm scooter 8 KM (Max) Per charge range Brake distance 5 KPH±1KPH Speed 980 mm Turning Radius...

  • Page 23: Warranty Declaration

    Products are to be fit for purpose and of excellent quality and performance. For valid warranty claims CareCo (UK) Ltd will, at their discretion, replace / repair / refund items mutually agreed to be defective. The scooter’s warranty is as follows:- •...
