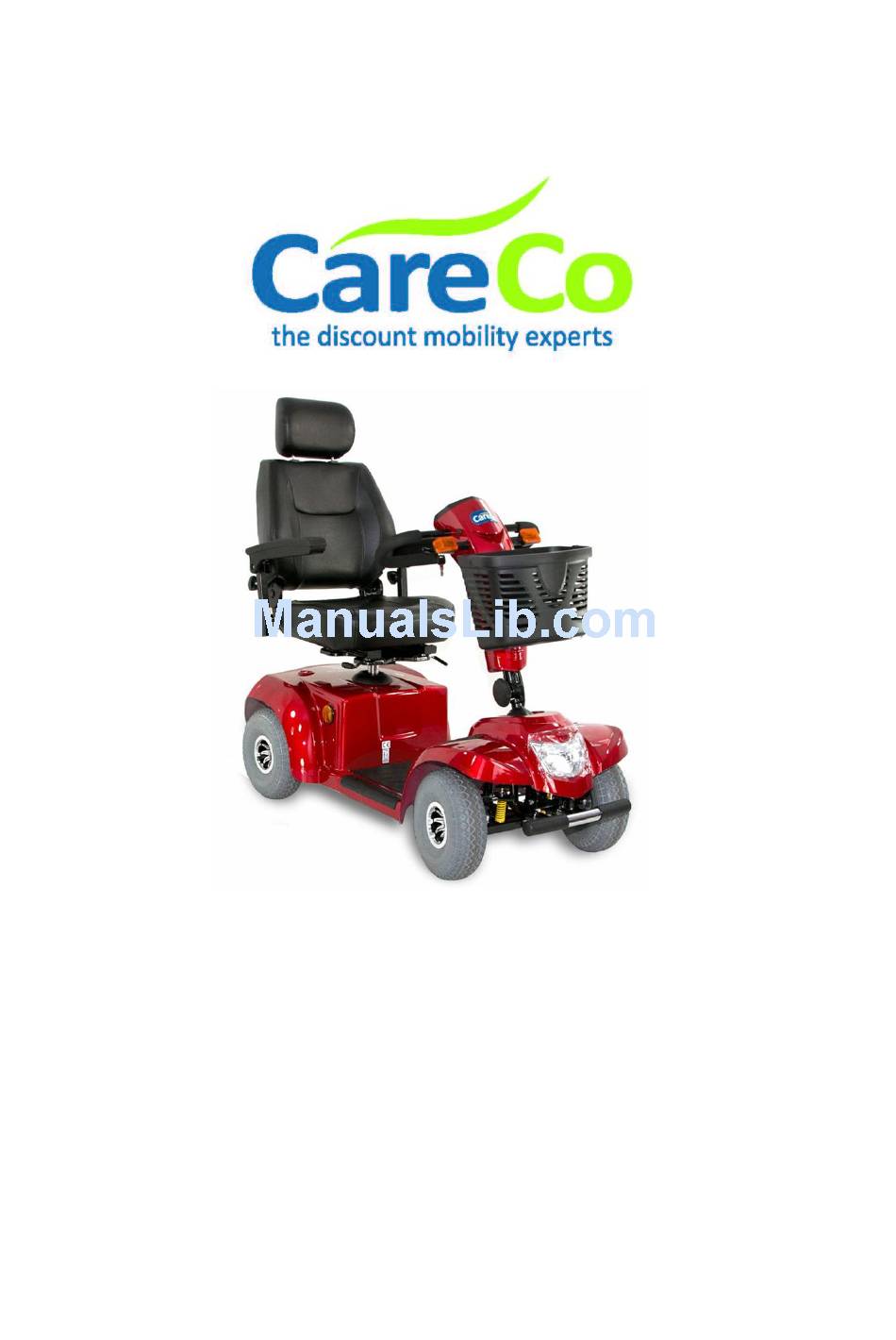

- Page 1 TITAN Owner’s Manual CareCo (UK) Ltd Hubert Road Brentwood Essex CM14 4JE...
- Page 2 We ask that you read this manual completely before operating your new TITAN scooter. CareCo (UK) Ltd is not, and cannot be held responsible for, any damage or injury incurred due to improper or unsafe use of the CareCo TITAN scooter.
- Page 3 Congratulations on the purchase of your new TITAN scooter. The TITAN combines cutting edge technology with attractive design which is highly functional in today’s world. We at CareCo (UK) Ltd know that you have chosen a scooter that will give you years of dependable operation and will also enhance the quality of your life by providing you with the mobility to experience an active daily lifestyle.
-
Page 4: Table Of Contents
CONTENTS PREFACE AND INTRODUCTION ……………………………………. SAFETY NOTICE…………………………………………………………. 2.1 Before driving 2.2 While driving 2.3 Labelling PARTS INTRODUCTION……………………………………………….. Parts description OPERATION………………………………………………………………. 4.1 Control panel 4.2 How to operate your scooter BATTERY CHARGING AND CARE…………………………………… 5.1 Charging the battery 5.2 Batteries INSPECTION AND MAINTENANCE………………………………… 6.1 Inspection 6.2 Regular checking record 6.3 Battery, fuse and tyres... -
Page 5: Preface And Introduction
1 . P R E F A C E A N D I N T R O D U C T I O N Please carefully read this owner’s manual before using the vehicle. Improper use of the vehicle could result in harm, injury and/or traffic accidents. This owner’s manual includes operation instructions for every aspect of the vehicle. -
Page 6: Safety Notice
2 . S A F E T Y N O T I C E 2.1 BEFORE DRIVING The user should become familiar with the usage and operation of this vehicle before driving. Please follow the recommendations in this safety notice. ■... -
Page 7: While Driving
2.2 WHILE DRIVING ■ Do not alight from the vehicle while moving Such action may cause you to lose balance and risk injury from falling. Ensure that your clothes do not tangle in the wheels. ■ Do not use your vehicle under the following conditions:- ... - Page 8 4. Turn the power switch to ‘ON’. If necessary, turn on the headlights. 5. Check battery indicator to see whether there is enough power for your journey. If you have any doubt about the remaining power, please recharge the batteries before departure. 6.
- Page 9 This will limit the scooter to a maximum speed of 4 mph. It is an offence to travel at more than 4 mph on the pavement. The limit switch can be set to the fastest setting for use on the road or on private ground.
-
Page 10: Labelling
(Note: There is no easy way to evaluate their effect on a powered scooter.) 5. Report all incidents of unintended movement or brake release to CareCo, and note whether there is a radio wave source nearby. -
Page 11: Parts Introduction
3 . PA R T S I N T R O D U C T I O N 3.1 PARTS DESCRIPTION 1. Indicator Lamp 2. Charger Socket Cover 3. Basket 4. Tiller Adjust Lever 5. Head Lamp 6. Seat 7. Side Reflector 8. -
Page 12: Operation
4 . O P E R AT I O N 4.1 CONTROL PANEL 1. Speed Dial 2. Horn Button 3. Indicator lamp switch 4. Head light / Rear Light Button 5. Battery Indicator 6. Emergency lamp switch 7. Indoor/Outdoor switch 4.2 HOW TO OPERATE YOUR SCOOTER ■... - Page 13 Therefore, when you find the range is about 50% of the range when the batteries were new, it is time to replace them. Please contact CareCo on cs@careco.co.uk or call 0845 611 8022 for replacement batteries.
- Page 14 The seat can be turned to 45 degrees or 90 degrees. Pull the seat adjustment lever forward and swivel the seat. Release the lever, then continue swivelling the seat until it locks in position. Attention Return the seat to the forward position before driving. ...
-
Page 15: Battery Charging And Care
Overheating of the charger may result which could lead to a fire. There is a red LED present on the charger to illustrate operation. If this LED does not illuminate the charger is defective, please contact CareCo Customer Services. Attention ... -
Page 16: Batteries
Attention - Please follow the rules below to avoid accidents while charging. 1. Please use the CareCo charger only, and recharge the battery to its full capacity every time. You may damage the battery and scooter if you use a charger, which is not to the correct specification. - Page 17 Suggestions If necessary, ask for help from CareCo for advice about maintaining and replacing the battery. Contact Customer Services on 0845 611 8022 or email: cs@careco.co.uk Suggestions 1. Make sure the terminals are installed properly and replace the cover.
-
Page 18: Inspection And Maintenance
6.2 REGULAR CHECKING RECORD To make sure your scooter is correctly serviced, contact CareCo regarding regular maintenance checks. This should be at intervals of six months following an initial inspection after one month. These checks may be chargeable. -
Page 19: Battery, Fuse And Tyres
If the battery charger is turned on and no LEDs are lit, check the fuse. Suggestion Ask for help from CareCo to inspect or replace the fuse, as the tiller shroud has to be removed before the fuse can be replaced. Contact Customer Services on 0845 611 8022 or email: cs@careco.co.uk... -
Page 20: Manually Moving The Scooter
6.5 MANUALLY MOVING THE SCOOTER Turn the power switch to OFF before moving. Lift the scooter by the chassis, and not by the bumpers. Lifting the scooters by the bumpers could cause damage or injury. For your safety, always ask for help. 2 or 3 persons will be needed when moving or lifting the vehicle. -
Page 21: Trouble Shooting And Specification
Switch the scooter off and on. Recharge the batteries. If problem persists contact CareCo. The LED lights will ‘blink’ if there is a problem with your Titan scooter. The list below will assist you in identifying any possible malfunction. 1 blink... - Page 22 S P E C I F I C AT I O N Model Reference TITAN Dimension (L x W x H mm) 1310×610×1160mm Weight with batteries 94.7kg(208.3lbs) without batteries 65.4kg(143.8lbs) Battery 36Ah x 2 /50Ah x2 Charger 8A Off-Board Front Tyre 5"×13"×2/127×320mm...
-
Page 23: Warranty
Quality / Warranty Declaration Products are to be fit for purpose and of excellent quality and performance. For valid warranty claims CareCo (UK) Ltd will, at their discretion, replace / repair / refund items mutually agreed to be defective. The scooter’s warranty is as follows:- ...
