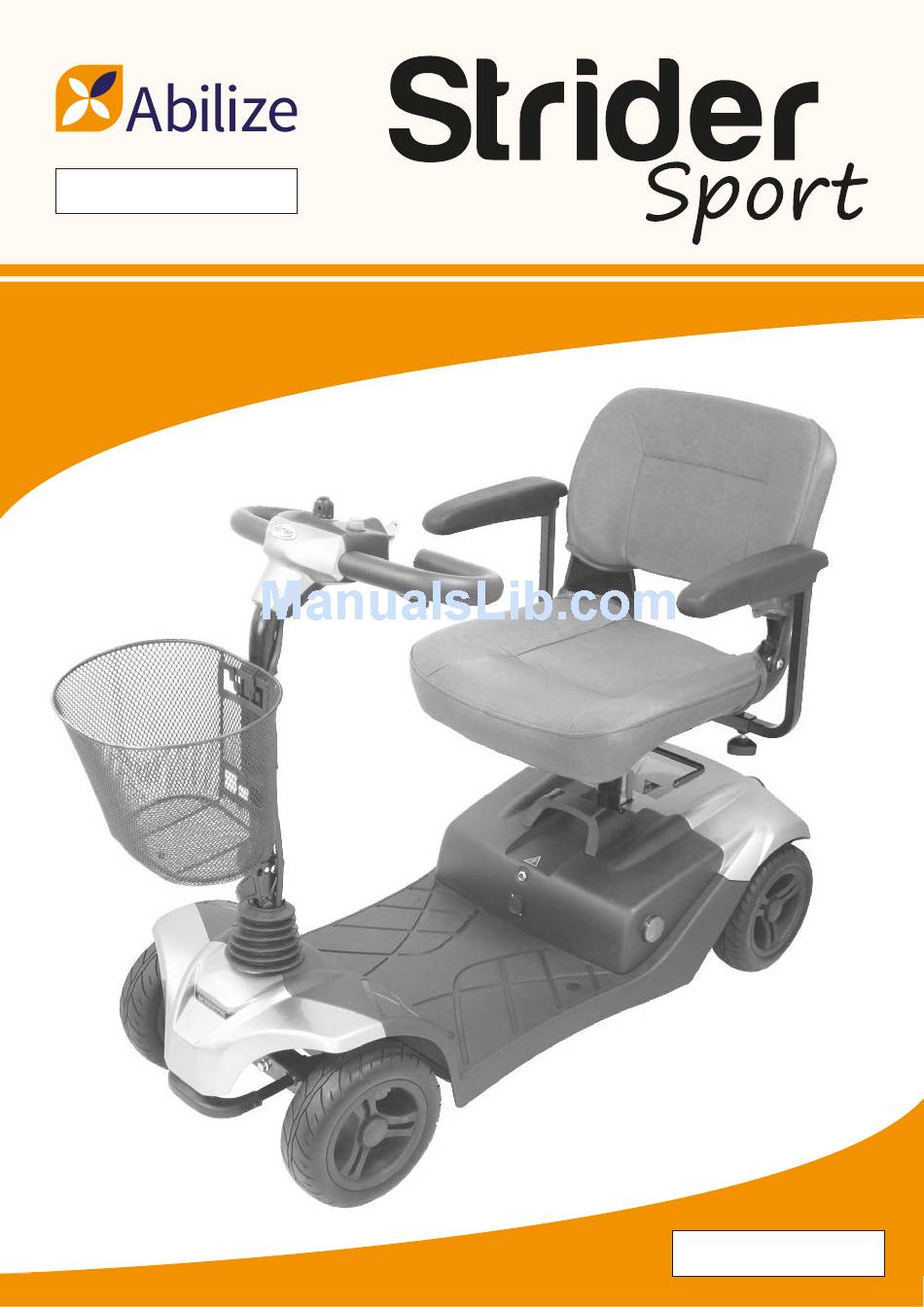

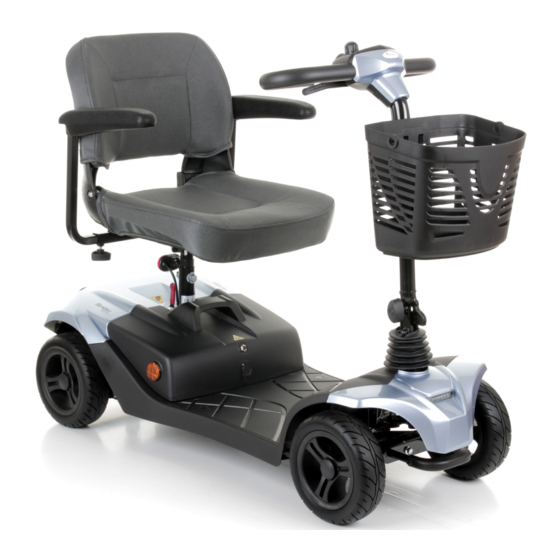

- Page 1 Instruction Booklet Code: MS01066...
-
Page 2: Table Of Contents
Instruction Booklet: Contents Table of Contents Introduction Important Precautions Identification of Parts Charging the Batteries Disassembling your Scooter Troubleshooting Caution Safety Information on Electromagnetic Interference (EMI) Specifications Warranty... -
Page 3: Introduction
Please read and observe all warnings and instructions provided in owner’s manual before you operate the various functions of this scooter. Also, please retain this booklet for future reference. IF YOU HAVE ANY QUESTIONS, YOU CAN CONTACT: UK Authorised Dealer CareCo UK Ltd Hubert Road Brentwood Essex CM14 4JE Tel: (+44) 01277 237001 Email: CS@careco.co.uk... -
Page 4: Important Precautions
Instruction Booklet: Important Precautions • Only one person at a time can ride the Scooter. • Maximum load is 136 kg / 300 Ibs pounds. • Turn key off before getting on or off. • Always drive carefully and be aware of others using the same area. •... -
Page 5: Identification Of Parts
Instruction Booklet: Identification of Parts Before attempting to drive this scooter on your own, it is important that you familiarize yourself with the controls and how to operate them. Padded Foldable Seat Easy-To-Operate Control Flip-Up Armrests Panel and Delta Handlebar Front Basket Seat Rotation Lever... - Page 6 Instruction Booklet: Identification of Parts Before operation, please remove the Lock Nut (A) and press button of Circuit Breaker (B) to activate the system. Function of Parts: Main Key Switch (C) • Turn the key to the right to turn the scooter on. •...
- Page 7 Instruction Booklet: Identification of Parts Tiller Angle Adjustment:. • Turn the Cap (I) outward upward to disengage the pin. • Simultaneously, adjust the tiller fore-and-aft to the most comfortable angle. Release Cap (I) and ensure the pin is fully engaged to lock the tiller in position. Seat Rotation Adjustment:.
- Page 8 Instruction Booklet: Identification of Parts Basket assembling and disassembling: • Place the Front Basket (M) to the bracket on the tiller. • Remove the Front Basket (M) and place it aside. Armrest assembling and angle adjustment: • Adjust armrest to most comfortable length, then lock the Knob (N).
-
Page 9: Charging The Batteries
Instruction Booklet: Charging the Batteries Your Abilize scooter is equipped with two sealed, maintenance free 12V. 22Ah. Rechargeable batteries and one 24V/3A charger. Batteries must be charged before using scooter for first time and should be recharged after each day’s use. Be sure power switch is in OFF position and free-wheeling lever is not in freewheel mode. -
Page 10: Disassembling Your Scooter
Instruction Booklet: Dissembling your Scooter 1. Seat Disassembling: Remove seat by lifting Seat Rotation Lever (J). Then rotate Seat (K) and lift up away from scooter. 2. Battery Pack Disassembling: As indication, pull Battery Pack Handle (R) to remove Battery Box (S) from scooter. Caution : Battery Box is heavy. -
Page 11: Troubleshooting
Instruction Booklet: Troubleshooting Flash Description Meaning Battery Low or The batteries are running low. • Recharge the batteries for a minimum of 12 hours. Low Battery Fault Battery voltage is too high. This may occur if overcharged &/or traveling down a long slope. High Battery •... -
Page 12: Caution
Instruction Booklet: Caution Obstacle Climbing: • Your scooter can climb obstacles and curbs of up to 40mm / 1.6” in height. Never attempt to overcome an obstacle when on an uphill or downhill gradient! • Always approach obstacles straight on! Ensure that the front wheels and rear wheels move over the obstacle in one stroke, do not stop halfway! •... -
Page 13: Safety Information On
Instruction Booklet: Safety Infomation on Electronic Interference (EMI) CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. -
Page 14: Electromagnetic Interference (Emi)
Instruction Booklet: Safety Infomation on Electronic Interference (EMI) Motorized Scooter Electromagnetic Interference: Because EM energy rapidly becomes more intense as one move closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. -
Page 15: Specifications
Instruction Booklet: Specifications Specification Overall Length 1120 mm / 44” Overall Width 620 mm / 24.4” Overall Height 935 mm / 36.8” Front Wheels 225 mm / 9” Rear Wheels 225 mm / 9” Weight W/Batteries 55 kg / 121.3 lbs Weight of Heaviest Piece 17 kg / 37.5 lbs Max. -
Page 16: Warranty
Instruction Booklet: Warranty There is a comprehensive twelve-month warranty from the date on which your new scooter is delivered. The warranty covers the scooter for repairs or replacement during this period. For more details, please see the Warranty Conditions below. Warranty Conditions: •...
