Sf-S18; Mount The Lock Plate; Mount The Support Guide - Sharp SF-2025 Service Manual

(5) SF-S18

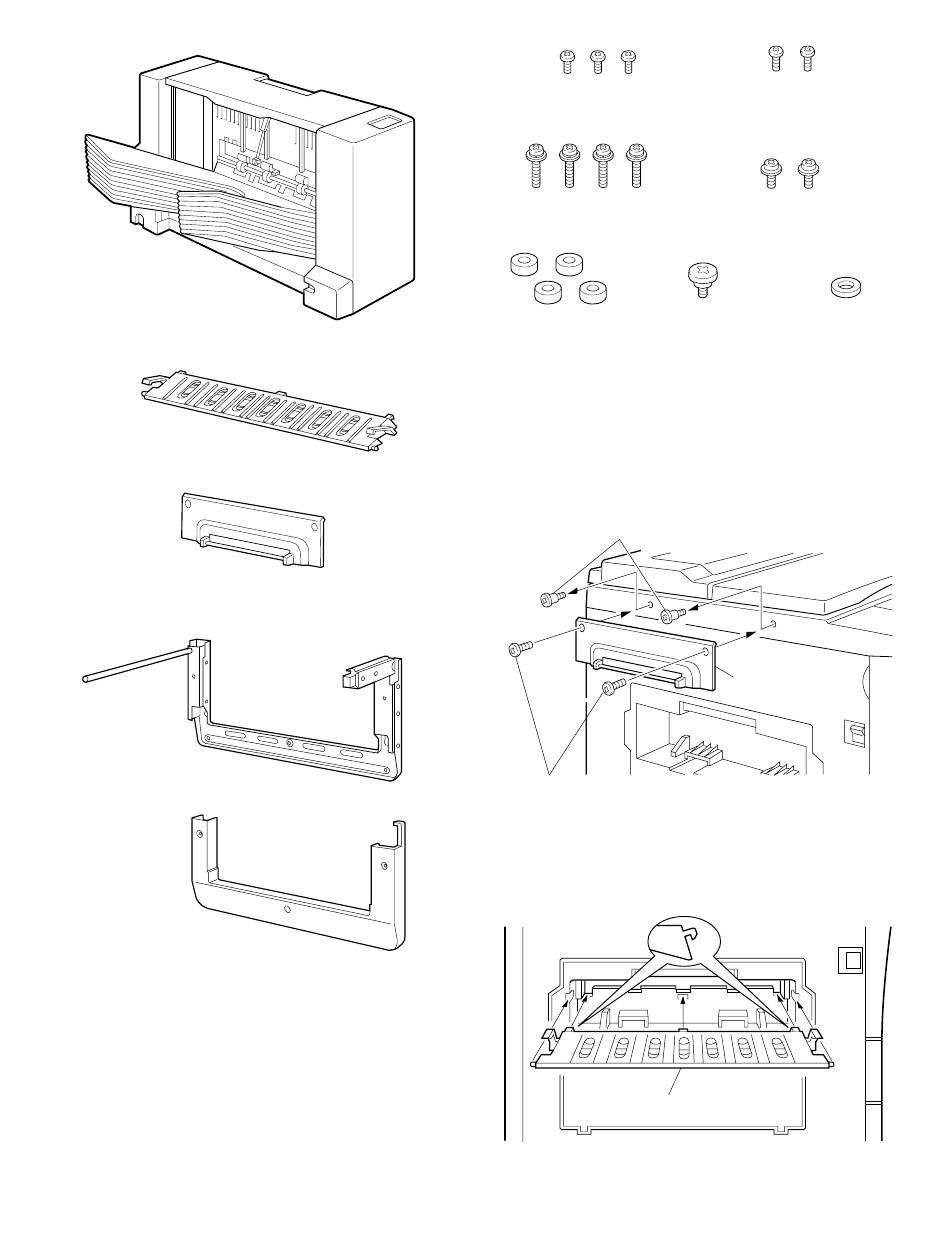

Included parts
Support guide
(1 pc.)
Lock plate
(1 pc.)
Sorter seat cover
Sorter seat
(1 pc.)
(1 pc.)
Sorter seat cover securing screws
(3 pcs.)
Sorter seat securing screws
(4 pcs.)
Spacers
(4 pcs.)
Unplug the copier and follow the procedure below.

1. Mount the lock plate.

Remove the screws (2) from the upper side of the copier's left cabinet
panel.
Mount the lock plate to the upper side of the copier's left cabinet
panel and secure it with the M4 x 8 lockplate screws (2).
Upper left cabinet panel screws
Lock plate screws

2. Mount the support guide.

Hang the two hooks of the support guide on the exit area of the
copier to mount the support guide.
Support guide
5 – 24
Lockplate screws (M4 x 8)
(2 pcs.)
Sorter securing screws (M4 x 8)
(2 pcs.)
Stopper screw
Felt washer
(1 pc.)
(1 pc.)
Lock plate
Hooks
