6. Confirm that papers are stapled correctly.
Place a set of papers in the 2nd bin (below the non-sort bin), check
the stapling location, and then press the manual staple key when it
lights up.
Next, remove the papers that were placed in the 2nd bin and confirm
that they have been stapled correctly.
At this time, if the papers still have not been stapled, repeat this
procedure once again.
Copy papers
Stapling location
Copy papers
This completes the staple sorter installation.

(4) SF-S52

Parts list
Handle support plate,
Handle (1 pc.)
front (1 pc.)
Sorter mounting Sorter mounting
angle, rear (1 pc.) angle, front (1 pc.)
Connec ting plate
Cover (1 pc.)
(1 pc.)
Paper guide
Maintenance pouch
(1 pc.)
Paper guide mounting
screws (2 pcs.)
Mounting screws (12 pcs.)
Staple position indicating Staple position indicating
label for the copier label for the ADF
Copier
Handle support plate,
rear (1 pc.)
Support plate (1pc.)
Sorter mounting angle
screws (4 pcs.)
Spacers (4 pcs.)
(1 pc.)
Bracket mounting screws
(2 pcs.)
Staple position indicating
label for the RADF

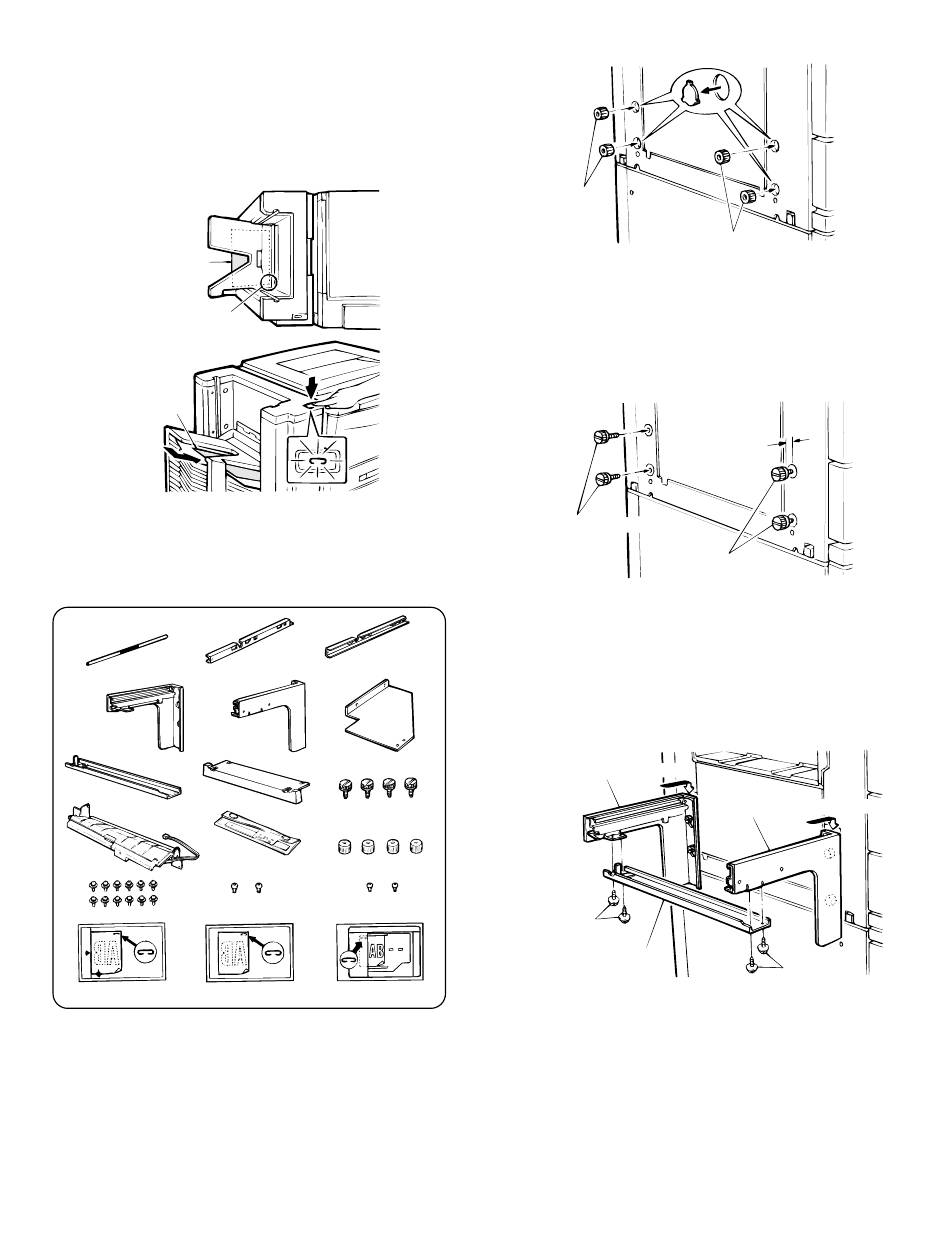

a. After unpacking, check that all the parts are provided as follows:
Spacers
b. Disconnect the power plug of the copier body.
c. Remove the cut-outs in the cabinet panel at the spacer holes on
the left side of the copier and fit the sorter mounting angle spacers
into the holes.
d. Attach the sorter mounting angle screws (4 pcs). Allow a space of
2 - 3 mm between the screws and the spacers.
Sorter mounting
angle screws
e. Attach the sorter mounting angle and the connecting plate.
•
Hook the front and rear sorter mounting angles into the spaces
between the sorter mounting angle screws and the spacers,
and tighten the four sorter mounting angle screws.
•
Next, use the four connecting plate mounting screws to secure
the connecting plate to the front and rear sorter mounting
angles.
Sorter mounting angle, rear
Mounting
screws
Connecting plate
5 – 19
Cut-outs in the cabinet panel
Spacers
2~3mm
Sorter mounting
angle screws
Sorter mounting angle, front
Mounting
screws
