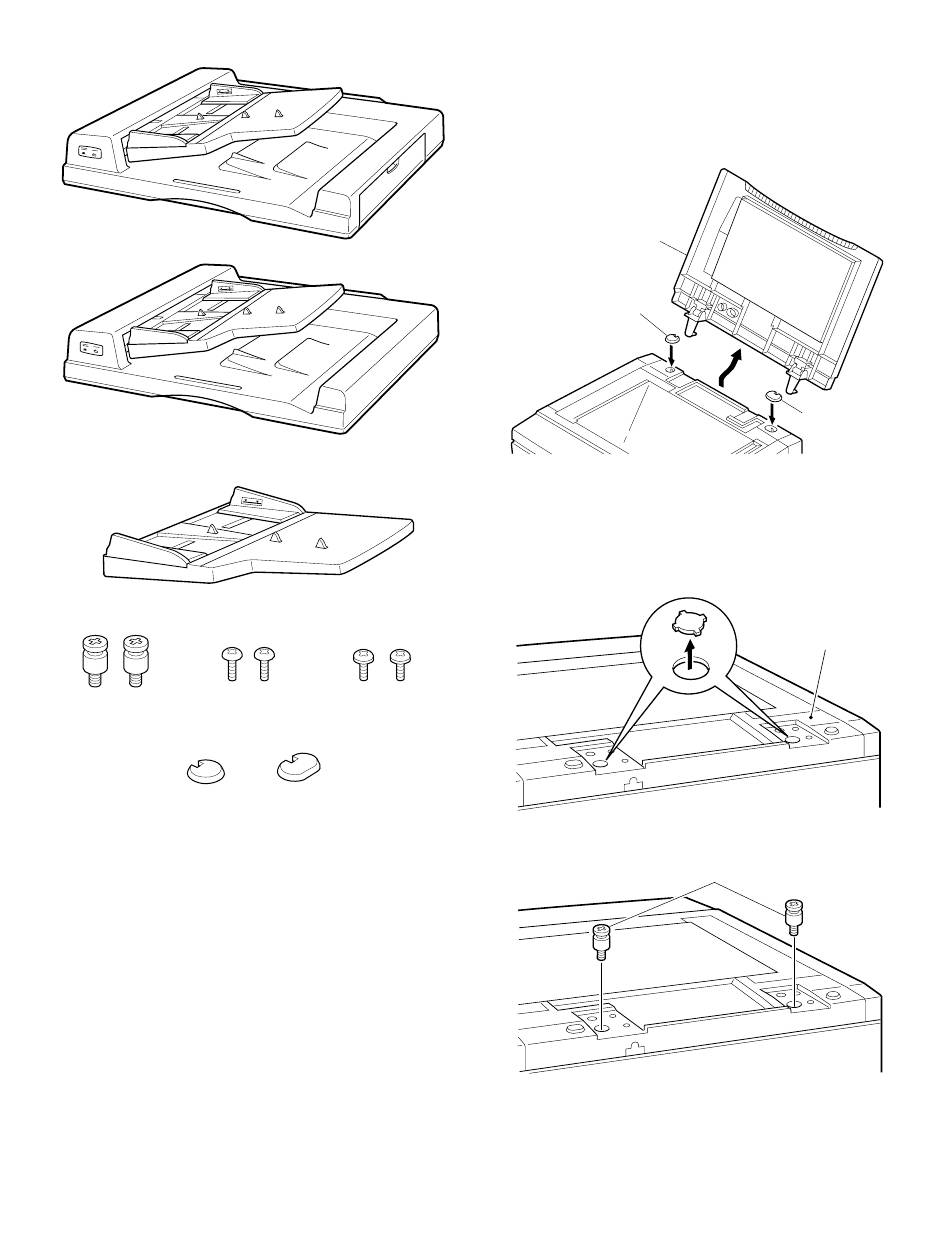

(2) SF-A17/56
SF-A56
SF-A17
Included parts
ADF mounting screws ADF securing screws
(2 pcs.)
Right cover
(1 pc.)
ADF tray
Tray securing screws
(2 pcs.)
(2 pcs.)
Left cover
(1 pc.)
Unplug the copier and follow the procedure below.

1. Remove the document cover.

Open the document cover and lift it at a slight backward angle to
remove it.
Insert the left and right covers (included parts) into the holes from
which the document cover has been removed.
Document cover
Right cover

2. Mount the ADF onto the copier.

Remove the two cut-outs from the rear part of the upper cover of the
copier.
Install the two ADF mounting screws.
5 – 10
Left cover
Cut-outs
Rear part of
upper cover
ADF mounting screws
