Unplug the copier's power cord before carrying out
the following procedure.

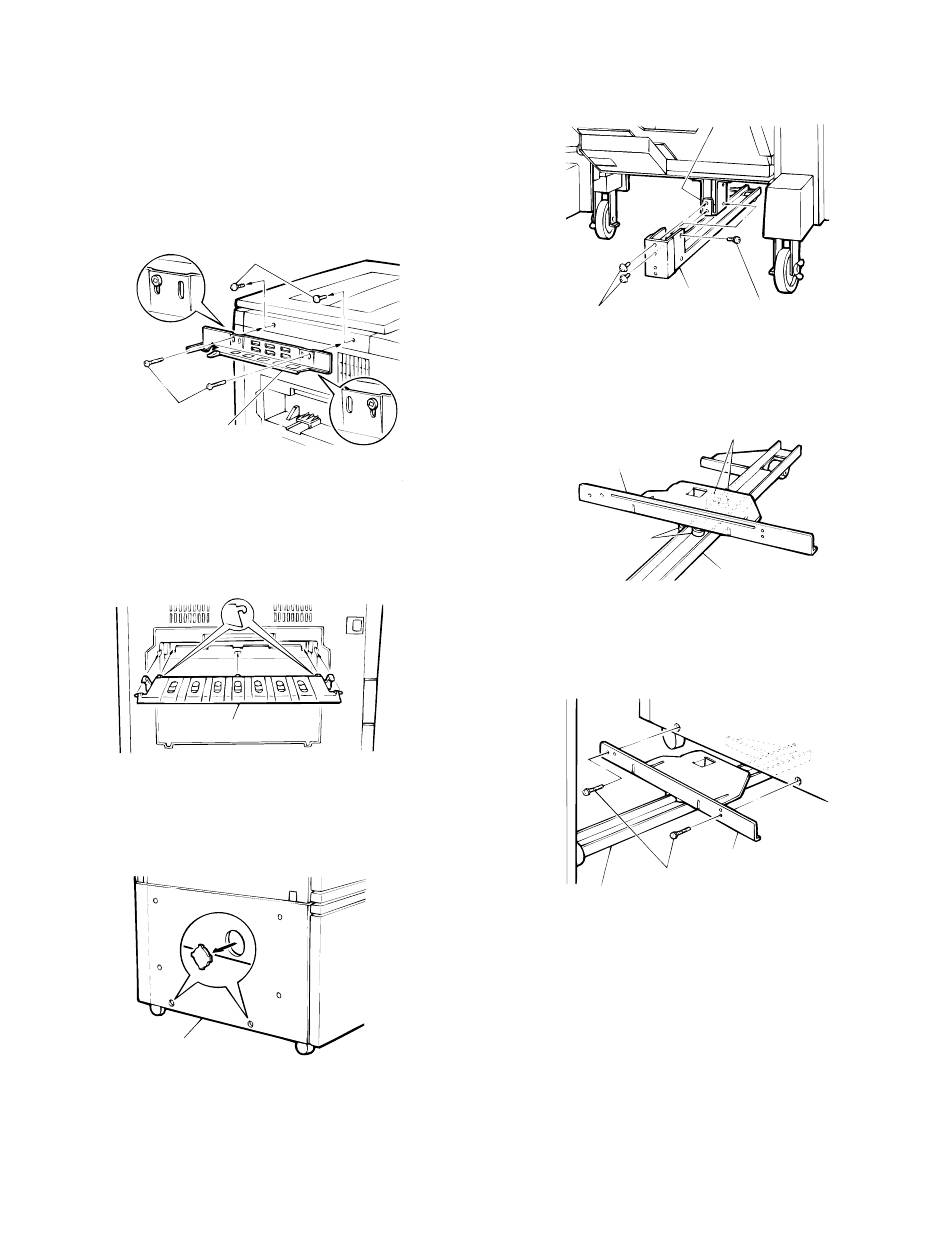

A. Mounting of the staple sorter onto the copier.
1. Attach the sorter mounting plate.
Remove the screws (2) from the copier's upper left cabinet panel.
Attach the sorter mounting plate with the 2 sorter mounting plate
screws (M4 x 12).
The sorter mounting plate screw holes are elongated; tighten the
screws so that the sorter mounting plate hangs down in its lowest
position.
Upper left cabinet panel screws
Sorter mounting
plate screws
Sorter mounting
plate
2. Attach the support guide.
Attach the support guide by attaching its pawls (2 locations) to the
inside of the copier's paper output section.
Pawls
Support guide
3. Cut off the cut portions of the desk's left cabinet
panel.
Cut off the 2 cut portions of the desk's left cabinet panel.
Cut portions
Desk
4. Attach the rail to the sorter.
Insert the rail into the rail mounting anchor, on the bottom of the
sorter, and attach them with the 2 rail screws A (M4 x 6) and 1 rail
screw B (M4 x 6).
Rail screws A
5. Fit the rail mounting plate onto the rail.
Insert the rail between the rollers on the rail mounting plate as shown
in the figure.
Rail mounting plate
Rollers
6. Attach the rail mounting plate to the copier desk.
Slide the rail, which was just attached to the sorter, under the copier
as shown in the figure. Attach the rail mounting plate to the copier
with the 2 rail mounting plate screws (M4 x 14).
Rail mounting plate screws
Rail
5 – 15
Rail mounting anchor
Rail
Rail screws B
Rollers
Rail
Desk
Rail mounting plate
