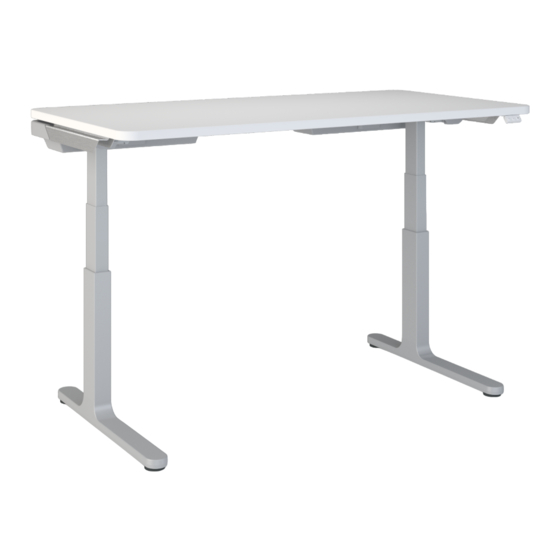

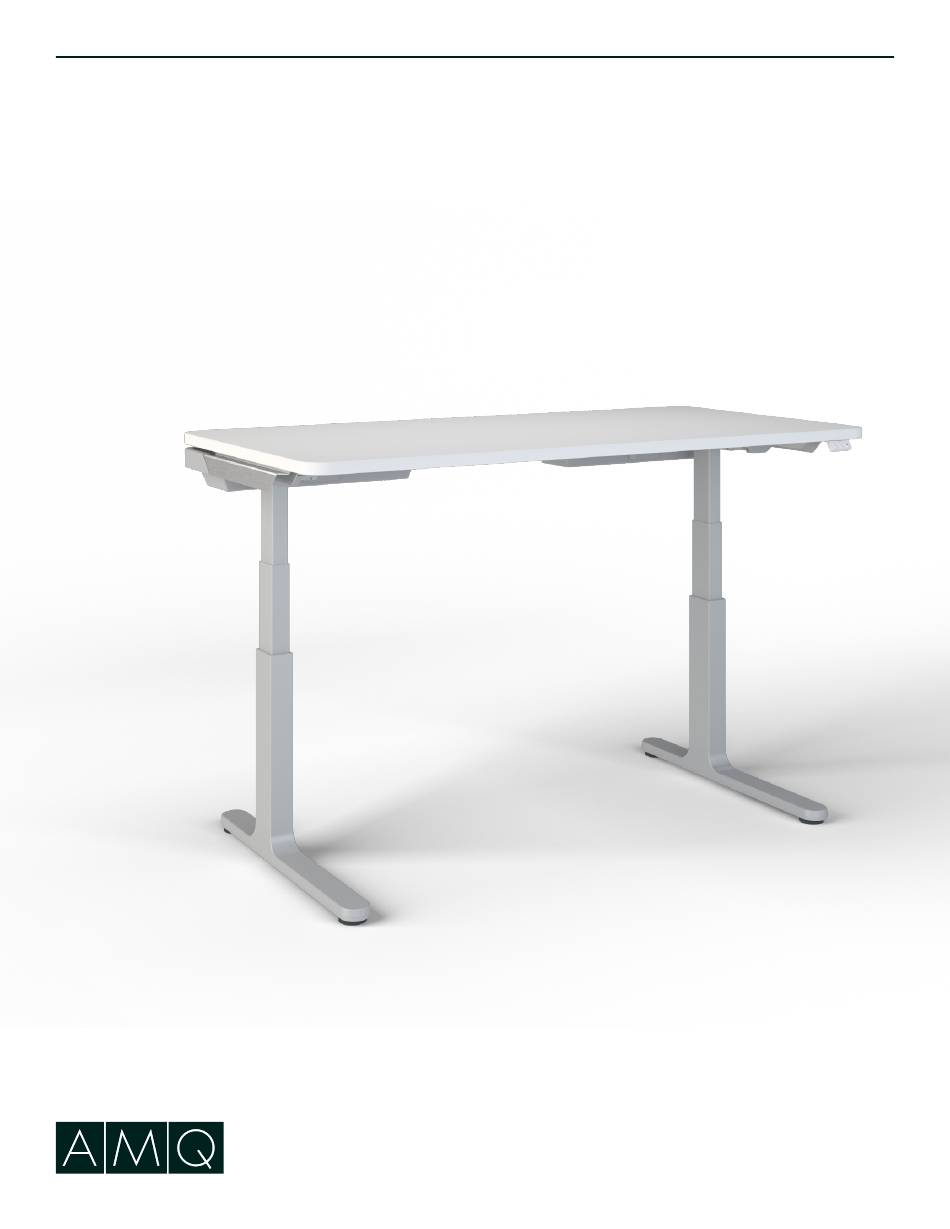

- Page 1 Cluvo Assembly Guide For Commercial use only...
-
Page 2: Table Of Contents
Attaching Column Sleeve (Optional) ......26-27 Replacing Glides with Castors (Optional) ..... 28-29 Cluvo Assembly Guide | 2 amqsolutions.com... -
Page 3: Safety Statement
To disconnect, turn all controls to the off position, then remove plug from outlet. Use only SJT, minimum 18/3 AWG, 105 degree C cord. Maximum load 250 lbs including worksurface and accessories assembled onto worksurface for Cluvo 2 stage height adjustable desk and base. - Page 4 Repairs are to be made using only factory authorized parts and methods. For information on furniture maintenance, or to report furniture which requires service, call AMQ toll-free at (877) 801-0370 FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY.
- Page 5 AMQ adjustable-height bases may NOT be accepted as compliant to municipal electrical codes or OSHA federal workplace standards, because this use does not create an NRTL (UL, ETL, etc.) listed product. AMQ is not responsible for the ultimate determinations of compliance for height-adjustable bases with non-AMQ worksurfaces.
-
Page 6: Fcc Statement
Important: Changes or modifications to this product not authorized by AMQ could void your authority to operate the product. Cluvo Assembly Guide | 6... -
Page 7: Hardware, Components & Optional Accessories
• Castors and deluxe handset are included in UL962 listing. • Other accessories are not included in UL962 listing. • Cluvo Height Adjustable Desk, model CLS2, CLS3. Cluvo Height Adjustable Base, model CLS2B, CLS3B. • RATING: 120Vac, 60Hz, 4.5A. • Max. Load including worksurface for 2 stage base and desk at 250 lbs, for 3 stage base and desk at 300 lbs. -
Page 8: Preparing For Assembly
Min 46’’ ~ Max 84” (6” overhang) in width, 24” & 30” in depth, 1" in thickness Maximum weight of AMQ worksurface is 70 lbs. The maximum load allowed on Cluvo 2 stage desk model CLS2 is 180 lbs. The maximum load allowed on Cluvo 3 stage desk model CLS3 is 230 lbs. -
Page 9: Stretcher Frame & Column Preassembly
Phase 2 | Stretcher Frame & Column Preassembly Step 1 Step 2 Remove the Cluvo HAD protective material as shown Take out the Stretcher Frame & Column below. Preassembly. Note: When the assembly is performed by only one person, please grab the main body diagonally at A and B. -
Page 10: Adjusting The Stretcher Frame & Columnon Preassembly
If it falls off, reinstall it at the correct position. Note: The control box is oriented towards the worksurface TSCA VI compliant label. Facing Direction Worksurface TSCA VI compliant label Cable Organizer Cluvo Assembly Guide | 10 amqsolutions.com... - Page 11 Note: Hinged legs remained locked after the installation; only to be unlocked by qualified personnel. Unlock Lever You should hear a clicking sound NOTE: Unhanded columns can be installed on either side. Cluvo Assembly Guide | 11 amqsolutions.com...
-
Page 12: Attaching The Cantilevers
30" depth cantilever does have arrows to distinguish directions. (When matching the C-Type feet, the arrow should be facing forward. When matching the T-Type feet, the arrow should be facing backwards.) Step Screw Cluvo Assembly Guide | 12 amqsolutions.com... -
Page 13: Attaching Stretcher Frame
10 frame screws sequentially. Note: There are 2 pilot holes on each side of the worksurface for Cantilevers alignment and installation. ST5*25 (10) Align with the Pilot Hole Cluvo Assembly Guide | 13 amqsolutions.com... - Page 14 46" to 84" in width, 24" to 30" in depth, 1" in thickness The maximum load allowed on Cluvo 2 stage desk model CLS2 is 250 lbs (including weight of worksurface and any additional weight). The maximum load allowed on Cluvo 3 stage desk model CLS3 is 300 lbs (including weight of worksurface and any additional weight).
- Page 15 24’’ to 30’’, make sure the distance from the cantilever to the rear edge of the worksurface is 6.5 inches. Facing Direction 72’’ ＜width ＜84’’ The control box is facing forward 6.5’’ Cluvo Assembly Guide | 15 amqsolutions.com...
- Page 16 Stretcher bar scale mark. centered screw brackets are aligned – tighten all inset screws. Note: Both the 72" and 84" Worksurfaces are aligned with the 72" scale markings. Use 3mm allen key to tighten pre-mounted inset screws Cluvo Assembly Guide | 16 amqsolutions.com...
-
Page 17: Attaching Standard Handset
ST5*16 Align with the Pilot Hole 1.8’’ 4’’ When the worksurface doesn't have the Pilot Holes, the handset should be installed according to the instructions provided above. Cluvo Assembly Guide | 17 amqsolutions.com... -
Page 18: Attaching Deluxe Handset
ST5*16 Align with the Pilot Hole 1.8’’ 4’’ When the worksurface doesn't have the Pilot Holes, the handset should be installed according to the instructions provided above. Cluvo Assembly Guide | 18 amqsolutions.com... -
Page 19: Feet Assembly
(When matching the C-Type cantilever, the arrow should be facing forward.) M6*12 Foot Trim *Torque setting of 2 to 2.4 Nm is recommended when using a power tool Cluvo Assembly Guide | 19 amqsolutions.com... -
Page 20: Handle Cover Assembly
(Cross section view as shown in below figure.) Cross Section View Handle Cover Handle Holder Cluvo Assembly Guide | 20 amqsolutions.com... -
Page 21: Connecting Handset And Power
Connect each plug according to the above diagram. The wire of the Handset passes through the Handset Orient yourself to the table assembly by facing as a Hole, connected to the Control box. user to identify the left and right motors. Cluvo Assembly Guide | 21 amqsolutions.com... -
Page 22: Attaching Utility Hook
Phase 10 | Attaching Utility Hook Step 1 Hang the Utility Hook on the Cantilever as shown. Note: The maximum load capacity of utility hook is 17.6 lbs (8 kgs). Cluvo Assembly Guide | 22 amqsolutions.com... -
Page 23: Attaching Cable Tray (Optional)
Note: The maximum weight capacity of each cable tray unit is 22 lbs, and the maximum weight capacity for a set of cable trays is 44 lbs. ST5*16 Hinge Worksurface Align with the Pilot Hole Hinge close to worksurface edge. Cluvo Assembly Guide | 23 amqsolutions.com... - Page 24 Note: The maximum weight capacity of each cable tray unit is 22 lbs, and the maximum weight capacity for a set of cable trays is 44 lbs. ST5*16 Cable Tray Hinge Worksurface Worksurface Cable Tray close to worksurface edge. Hinge close to worksurface edge. Cluvo Assembly Guide | 24 amqsolutions.com...
- Page 25 Cable Tray Hook with two ST5*16 screws. Note: Make sure the Cable Tray is properly hung on the Cable Tray Hook. Cable Tray Hook ST5*16 Make sure the Cable Tray is properly hung on the Cable Tray Hook. Cluvo Assembly Guide | 25 amqsolutions.com...
-
Page 26: Attaching Column Sleeve (Optional)
Phase 12 | Attaching Column Sleeve (Optional) Step 1 Raise the desk. Step 2 Open the front column sleeve cover slightly and snap it onto the column. Cluvo Assembly Guide | 26 amqsolutions.com... - Page 27 Cover allows the Column Sleeve Trim to be installed by inserting it from the top and snapping it onto the front column sleeve cover. Column Sleeve Top Trim Column Sleeve Trim Front Column Sleeve Cover Column Sleeve Trim Power Cluvo Assembly Guide | 27 amqsolutions.com...
-
Page 28: Replacing Glides With Castors (Optional)
When flipping the desk, it is necessary for two people to operate simultaneously. Cluvo desk with 24" depth worksurface or 84" width worksurface can't be used with castors, and can only be used with glides. Cluvo Assembly Guide | 28... - Page 29 Step 4 Use a number 17 open wrench (which is not provided When the castor installation is complete, the by AMQ) to securely fasten the castors. castors need to be locked. 2 people are required to operate it simultaneously to turn the desk to its upright position.
- Page 30 Please contact cc@amqsolutions.com if you are missing any parts, have di culty with assembly, or have any product related questions. Part Number 1527153001 Rev.A - 07/06/2023...
