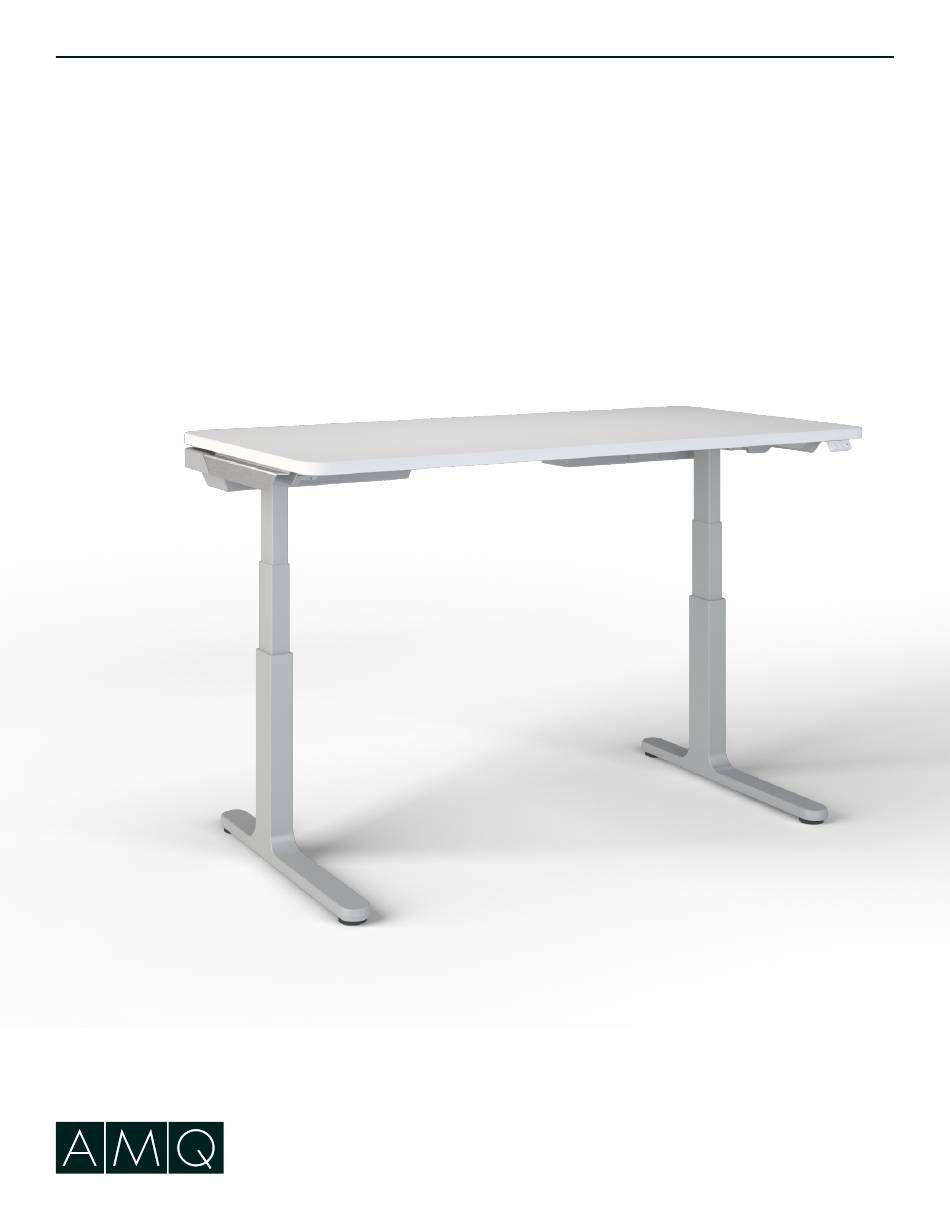

- Page 1 Cluvo User / Troubleshooting Guide For Commercial use only...
- Page 2 User Guide ..........7-12 Cluvo Deluxe Handset Troubleshooting Guide .....13 Cluvo User / Troubleshooting Guide | 2...
-
Page 3: Safety Statement
To disconnect, turn all controls to the off position, then remove plug from outlet. Use only SJT, minimum 18/3 AWG, 105 degree C cord. Maximum load 250 lbs including worksurface and accessories assembled onto worksurface for Cluvo 2 stage height adjustable desk and base. - Page 4 Repairs are to be made using only factory authorized parts and methods. For information on furniture maintenance, or to report furniture which requires service, call AMQ toll-free at (877) 801-0370 FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY.
- Page 5 AMQ adjustable-height bases may NOT be accepted as compliant to municipal electrical codes or OSHA federal workplace standards, because this use does not create an NRTL (UL, ETL, etc.) listed product. AMQ is not responsible for the ultimate determinations of compliance for height-adjustable bases with non-AMQ worksurfaces.
-
Page 6: Fcc Statement
Important: Changes or modifications to this product not authorized by AMQ could void your authority to operate the product. Cluvo User / Troubleshooting Guide | 6... -
Page 7: User Guide
If the power is turned off for the base and handset, the handset will be unlocked. Resetting the Base Press and hold the Down button for 5 seconds, when the base is at lowest height. Release the button then press the Down button until reset is complete. Cluvo User / Troubleshooting Guide | 7 amqsolutions.com... - Page 8 C. Memory Setting Knob D. Lock Button Handset Start Up When the power of base is turned on, the handset LED display shows AMQ logo for 3 seconds, then changes to standard display. Handset Standard Display The LED display includes custom sitting and standing height information in inches per chosen user, user information, handset lock status, date and time information.
- Page 9 Turn the knob to adjust hour, minute, AM/PM. Press the knob to confirm the selection. The user selected hour, minute and AM/PM will flash on LED display. Press “√” to confirm the selection. Cluvo User / Troubleshooting Guide | 9 amqsolutions.com...
- Page 10 Under standard display interface, press the knob to enter multiple selection interface. Press WELCOME/USER GUIDE menu to display barcode. Scan the barcode to direct users to AMQ website. Press knob to return to the previous menu. Cluvo User / Troubleshooting Guide | 10...
- Page 11 If CONTROLLER OVERHEAT H01 ERROR CODE LET HANDSET COOL DOWN-TRY LATER displays on LED, wait for a while before operating the handset. The LED display will work normally and exit the protection mode. Cluvo User / Troubleshooting Guide | 11 amqsolutions.com...
- Page 12 A pH-neutral product is ideal. Note: Please do not move the desk without help. Refer to the guidelines at the end of the assembly instructions, or contact your facilities group for assistance. Cluvo User / Troubleshooting Guide | 12 amqsolutions.com...
-
Page 13: Cluvo Deluxe Handset Troubleshooting Guide
2. Check the tightness of the cables/connectors if resetting the base mechanism abnormal stop) does not work. 3. If the issue persists, please contact our AMQ Customer Care. E07/E08 Error Code Reset the base. 2. Check the tightness of the cables/connectors if resetting the base does not work.
