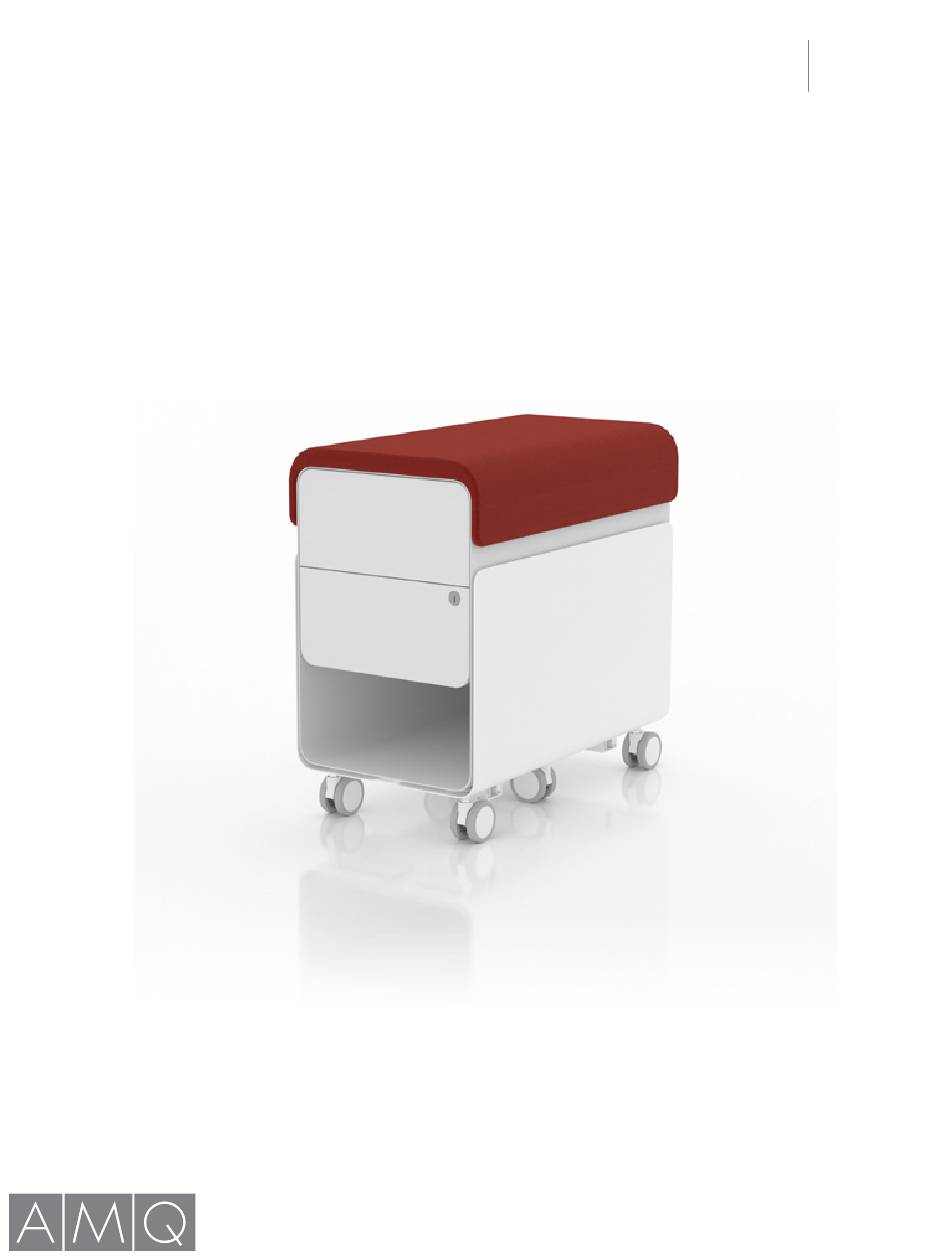

- Page 1 Revi installation guide...
- Page 2 COMPONENTS Main Housing Castor Castor with Brake OPTIONAL (EXPANDABLE BAG DROP) M4*5 Expandable Bag Drop Slide Expandable Bag M5*6 (1 set) Drop Castors OPTIONAL (MAGNETIC SEAT CUSHION) Magnetic Seat Cushion amqsolutions.com REVI INSTALLATION GUIDE | 2...
- Page 3 Screw on the castors using an adjustable wrench. Assemble the castors with brakes at the front of the pedestal, and assemble the castors without brakes at the rear of pedestal. Front amqsolutions.com REVI INSTALLATION GUIDE | 3...
- Page 4 Gently rest the pedestal on it’s back on a soft plate on each bag drop. surface. This will help level the expandable bag drop panels with the main housing. M5*6(x8) Step 5 Now fully tighten the screws. amqsolutions.com REVI INSTALLATION GUIDE | 4...
- Page 5 MAGNETIC SEAT CUSHION Step 1 Place magnetic seat cushion on assembled Revi. Magnets will hold in place. amqsolutions.com REVI INSTALLATION GUIDE | 5...
- Page 6 Please contact cc@amqsolutions.com if you are missing any parts, have difficulty with assembly, or have any product related questions.
