Service and Installation Manual

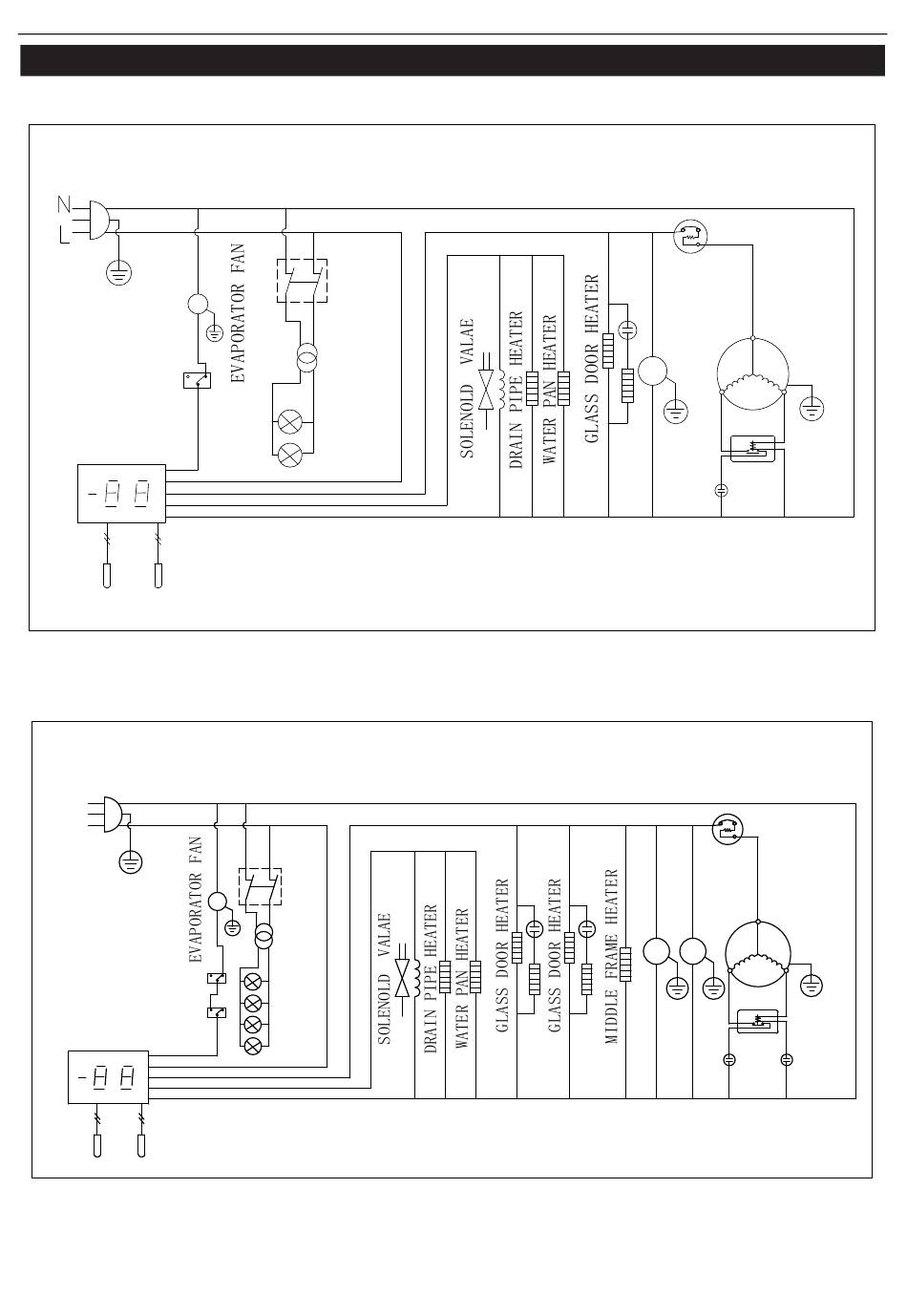

ELECTRICAL DIAGRAM
MODEL：IB27FG
PLUG
THERMOSTAT
DISPLAY
ROOM
EVAP
SENSOR
MODEL：IB54FG
N
L
PLUG
DOOR
SWITCH
THERMOSTAT DISPLAY
EVAP
ROOM
SENSOR
LAMP
SWITCH
M
LED
DRIVER
DOOR
SWITCH
LAMP
LAMP
SWITCH
M
LED
DRIVER
LAMP
OVERLOAD
PROTECTOR
CONDENSER
COMPRESSOR
FAN
M
CURRENT
RELAY
STARTING
CAPACITOR
OVERLOAD
PROTECTOR
CONDENSER
COMPRESSOR
FAN
M M
CURRENT
RELAY
STARTING RUN
CAPACITOR CAPACITOR
