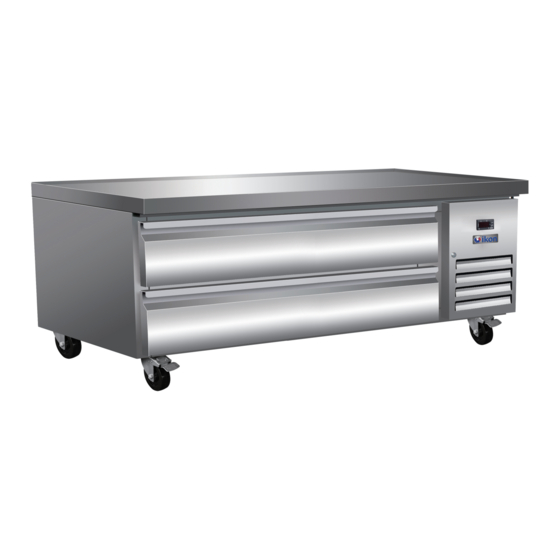

- Page 1 Chef Base Refrigerators Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
-
Page 2: Table Of Contents
Service and Installation Manual CONTENTS RECEIVING & INSPECTING EQUIPMENT .................. 2 SPECIFICATIONS ............................3 INSTALLATION ............................ 4 OPERATION…............................... 5 MAINTENANCE .......................... 7 WIRING DIAGRAM ....................... 9 All rights reserved. Reproduction without written permission is prohibited. SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators is located outside the unit on the left hand side near the top on the wall. -
Page 3: Specifications
Service and Installation Manual R-290 REFRIGERANT SPECIFICATIONS FULL STORAGE SHIP LOAD CAPACITY CHARGE WEIGHT NEMA MODEL# V/Hz/Ph Cu-ft AMPS PLUG ICBR50 2.82 115/60/1 5-15P ICBR62 2.82 115/60/1 5-15P ICBR74 2.82 115/60\/1 11.1 5-15P... -
Page 4: Installation
Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. -
Page 5: Operation
Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. CAUTION Refrigerated cabinets The factory setting for the temperature range is 34° to 38° F. Chef base units should operate with pans in place. - Page 6 Service and Installation Manual 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
-
Page 7: Maintenance
Service and Installation Manual MAINTENANCE The power switch must be turned OFF and the unit disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. DANGER The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. - Page 8 Service and Installation Manual MAINTENANCE Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are commonly found in hard water, salts, and household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse and dry thoroughly.
-
Page 9: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM MODEL: ICBR50/ICBR62/ICBR74 OVERLOAD PROTECTOR PLUG COMPRESSOR EVAP CONDENSER FAN THERMOSTAT DISPLAY CURRENT RELAY STARTING CAPACITOR ROOM EVAP SENSOR... - Page 10 Service and Installation Manual WIRING DIAGRAM MODEL: ICBR50/ICBR62/ICBR74...
- Page 11 Service and Installation Manual IKON WARRANTY Two Year Parts & Labor Warranty MVP Group (IKON) warrants, to the original purchaser, all of its new equipment to be free from defects in material and workmanship, under normal use and maintenance service, for a period of two (2) years from the date of original purchase or 15 months after shipment date from the manufacturer, whichever occurs first.
- Page 12 Service and Installation Manual...
