By
Reach Ins
Installation, Operation and Maintenance Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage! Inspect all components immediately. See page 2.
IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS!
Advertisement
Table of Contents
Related Manuals for Kool-It IKON Series
Summary of Contents for Kool-It IKON Series

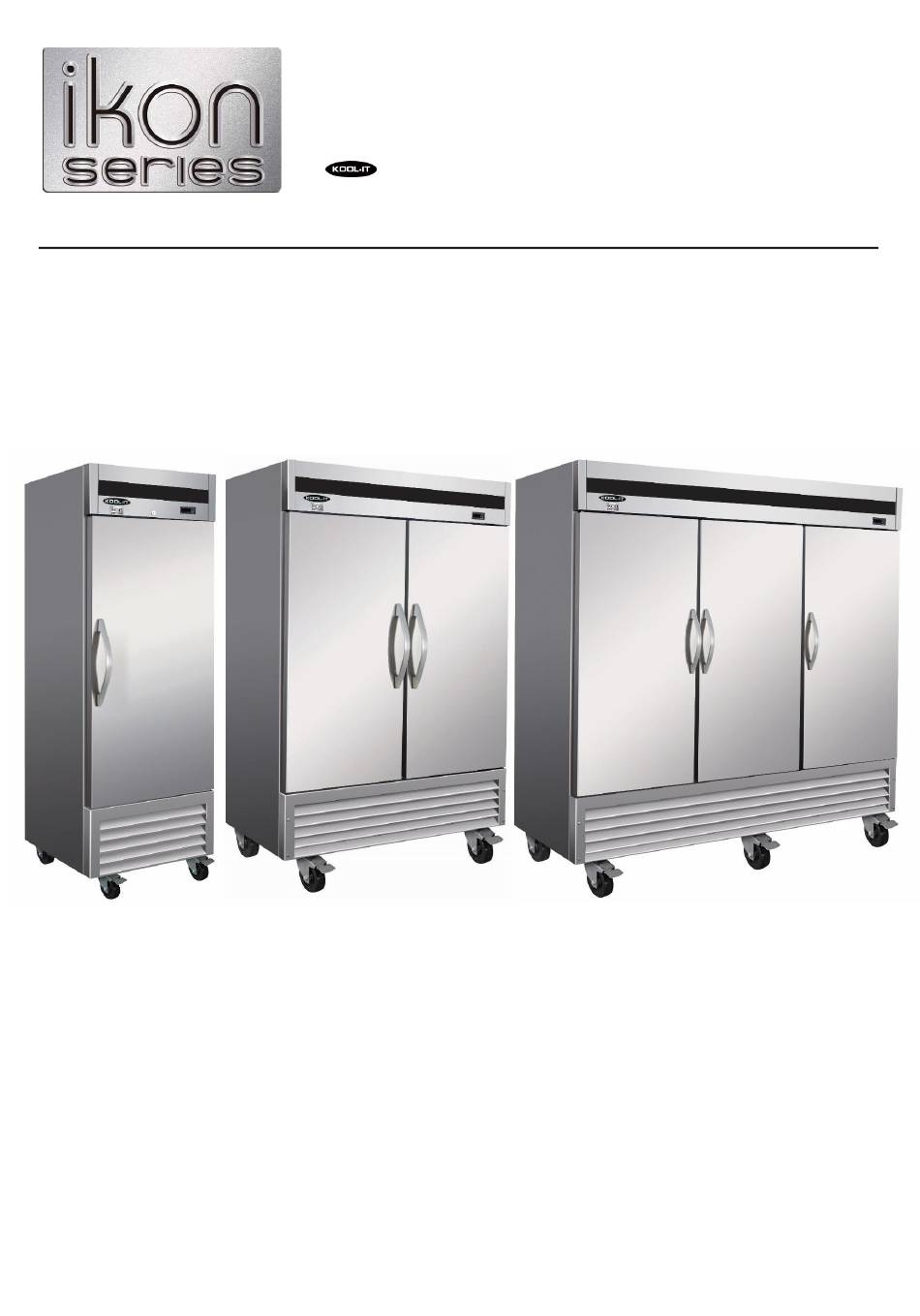

- Page 1 Reach Ins Installation, Operation and Maintenance Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. See page 2. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
-
Page 2: Table Of Contents
Service and Installation Manual CONTENTS RECEIVING & INSPECTING EQUIPMENT .................. 2 SPECIFICATIONS ............................3 INSTALLATION ............................ 4 OPERATION…............................... 5 MAINTENANCE .......................... 7 WIRING DIAGRAM ....................... 9 All rights reserved. Reproduction without written permission is prohibited. SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side near the top on the wall. -
Page 3: Specifications
Service and Installation Manual SPECIFICATIONS SOLID DOOR REFRIGERATORS STORAGE SHELF SHIP CAPACITY CAPACITY CHARGE WEIGHT NEMA MODEL# V/Hz/Ph AMPS Cu-ft PLUG Sq-ft 14.0 KB27R 115/60/1 3200 12.0 5-15P KB54R 115/60/1 28.1 5800 18.7 5-15P 42.1 KB81R 115/60/1 7625 21.2 5-15P GLASS DOOR REFRIGERATORS STORAGE SHELF... -
Page 4: Installation
Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. -
Page 5: Operation
Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. CAUTION Refrigerated cycle Refrigerators: During the refrigeration cycle, the evaporator fans will run continuously even when one or more doors are open. - Page 6 Service and Installation Manual 1.1 Function of LEDS MODE FUNCTION Compressor enabled Flashing -Programming Phase (flashing with - Anti-short cycle delay enabled Defrost enabled Flashing - Programming Phase (flashing with - Drip time in progress Fans enabled Flashing Fans delay after defrost in progress. An temperature alarm happened 2.
-
Page 7: Maintenance
Service and Installation Manual MAINTENANCE The unit must be turned OFF and disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. DANGER Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. - Page 8 Service and Installation Manual MAINTENANCE Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are commonly found in hard water, salts, and household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse and dry thoroughly.
- Page 9 Service and Installation Manual ELECTRICAL DIAGRAM MODEL：KB27R MODEL：KB54R...
- Page 10 Service and Installation Manual ELECTRICAL DIAGRAM MODEL：KB81R OVERLOAD PLUG CONTACTOR PROTECTOR LAMP CONDENSEN COMPRESSOR THERMOSTAT DISPLAY CURRENT RELAY ROOM EVAP SENSOR DOOR SWITCH MODEL：KB27RG OVERLOAD PROTECTOR PLUG CONDENSEN COMPRESSOR LAMP THERMOSTAT DISPLAY CURRENT RELAY STARTING EVAP ROOM DOOR SWITCH LAMP SWITCH CAPACITOR SENSOR...
- Page 11 Service and Installation Manual ELECTRICAL DIAGRAM MODEL：KB54RG OVERLOAD CONTACTOR PLUG PROTECTOR LAMP COMPRESSOR CONDENSEN LAMP THERMOSTAT DISPLAY CURRENT RELAY STARTING LAMP SWITCH CAPACITOR DOOR SWITCH EVAP ROOM SENSOR MODEL：KB27F OVERLOAD PROTECTOR PLUG CONTACTOR CONDENSEN FAN THERMAL LAMP COMPRESSOR CUT-OFF DOOR SWITCH CURRENT THERMOSTAT DISPLAY...
- Page 12 Service and Installation Manual ELECTRICAL DIAGRAM MODEL：KB54F OVERLOAD PROTECTOR PLUG CONTACTOR LAMP CONTACTOR THERMAL CONDENSEN COMPRESSOR CUT-OFF CURRENT THERMOSTAT DISPLAY RELAY STARTING CAPACITOR CAPACITOR EVAP ROOM SENSOR MODEL：KB81FDV CONTACTOR OVERLOAD PROTECTOR POWER THERMAL PLUG CUT-OFF CONDENSER EVAP CONTACTOR COMPRESSOR LAMP CURRENT RELAY STARTING...
-
Page 13: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM MODEL: KB27R... - Page 14 Service and Installation Manual WIRING DIAGRAM MODEL: KB 27RG...
- Page 15 Service and Installation Manual WIRING DIAGRAM MODEL: KB27F...
- Page 16 Service and Installation Manual WIRING DIAGRAM MODEL: KB 54R...
- Page 17 Service and Installation Manual WIRING DIAGRAM MODEL: KB54RG...
- Page 18 Service and Installation Manual WIRING DIAGRAM MODEL: KB54F...
- Page 19 Service and Installation Manual WIRING DIAGRAM MODEL: KB81R...
- Page 20 Service and Installation Manual WIRING DIAGRAM MODEL: KB 81FDV...
- Page 21 Service and Installation Manual IKON WARRANTY Two Year Parts & Labor Warranty MVP Group (IKON) warrants, to the original purchaser, all of its new equipment to be free from defects in material and workmanship, under normal use and maintenance service, for a period of two (2) years from the date of original purchase or 15 months after shipment date from the manufacturer, whichever occurs first.
Need help?
Do you have a question about the IKON Series and is the answer not in the manual?
Questions and answers

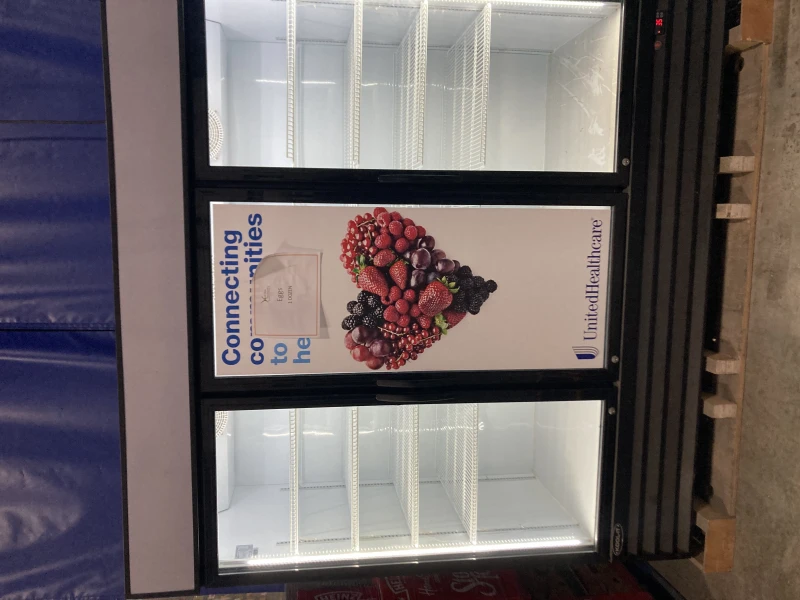

How to change the settings from refrigeration to freezer
