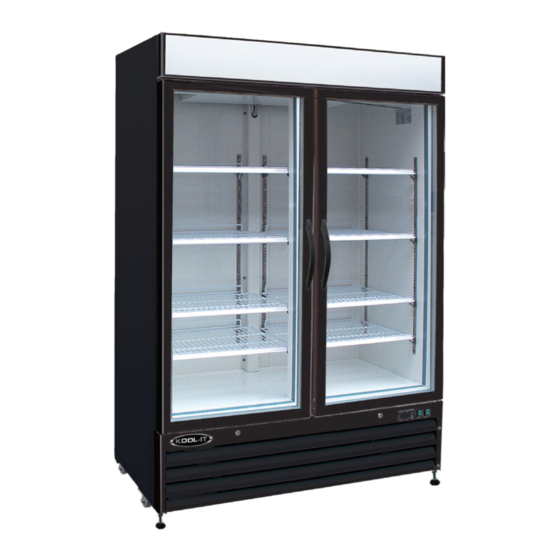

Kool-It KGF-23 Service, Installation And Care Manual

Kool-It KGF-23 Service, Installation And Care Manual

Glass door merchandiser refrigerator and freezer (swing and sliding door )

Advertisement

Glass Door Merchandiser
Refrigerator and Freezer
(Swing and Sliding Door )
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage! Inspect all components immediately.
IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS!

Advertisement

loading
Need help?

Need help?

Do you have a question about the KGF-23 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kool-It KGF-23

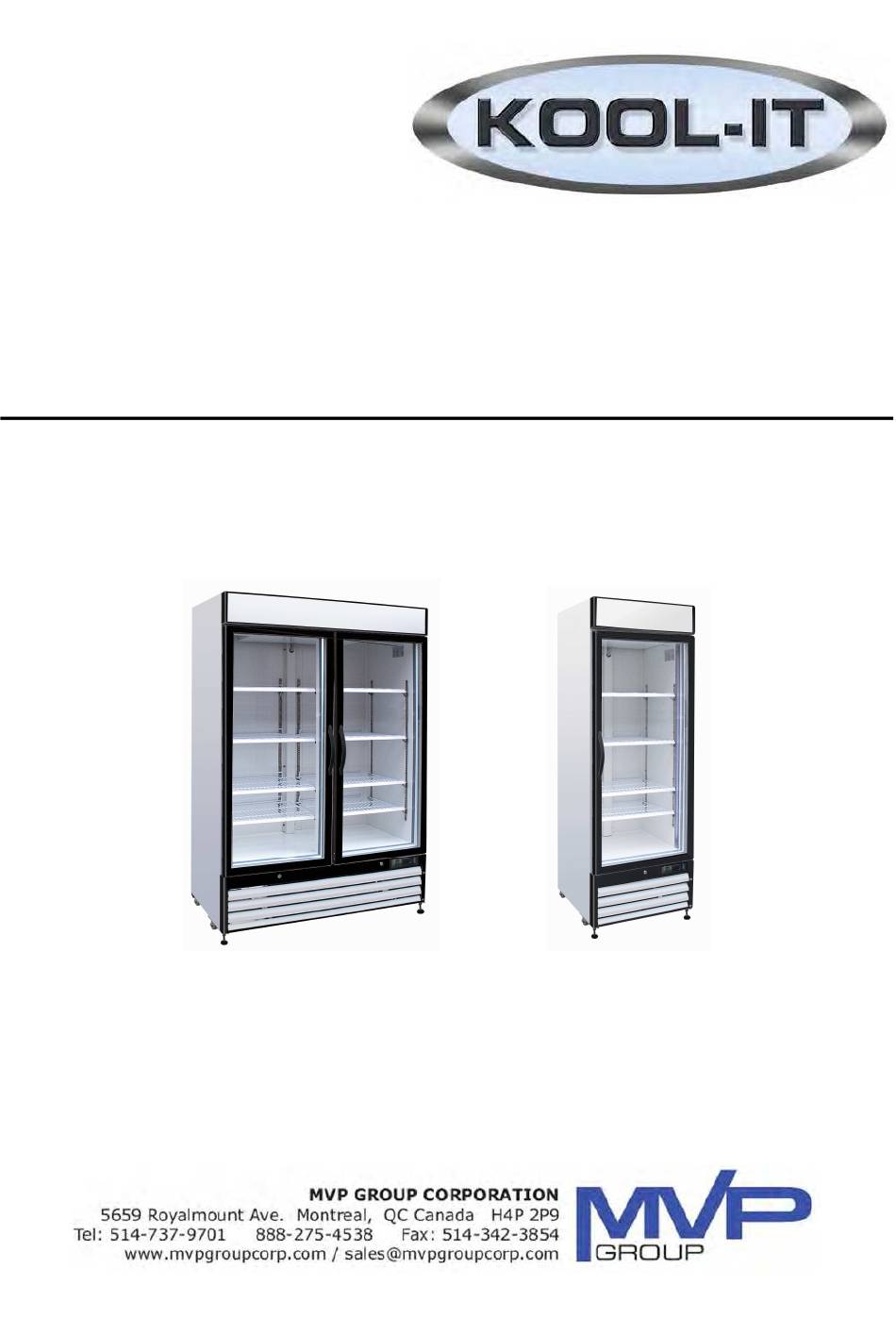

  • Page 1 Glass Door Merchandiser Refrigerator and Freezer (Swing and Sliding Door ) Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
  • Page 2: Table Of Contents

    Service and Installation Manual CONTENTS RECEIVING & INSPECTING EQUIPMENT SPECIFICATIONS INSTALLATION OPERATION MAINTENANCE STANDARD LABOR GUIDELINES. WIRING DIAGRAM All rights reserved. Reproduction without written permission is prohibited. SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side near the top on the wall.
  • Page 3: Specifications

    Service and Installation Manual SPECIFICATION SWING GLASS DOOR FREEZERS STORAGE SHIP CAPACITY CHARGE WEIGHT NEMA MODEL# V/Hz/Ph AMPS Cu-ft PLUG KGF-23 KGF-23 115/60/1 3000 14.1 5-15P 5-20P KGF-48 115/208-230/60/1 3650 25.0 KGF-72DV 115/208-230/60/1 1-1/4 4500 28.9 L14-20P SLIDING GLASS DOOR REFRIGERATORS...
  • Page 4: Installation

    Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds.
  • Page 5: Operation

    Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. CAUTION Refrigeration cycle Refrigerators: Every 6 hours, the unit will turn off to let the evaporator coil clear up the ice. The controller now displays the defrost symbol.
  • Page 6 Service and Installation Manual 1.2 Function of LEDS 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again. 2.2 HOW TO CHANGE THE SETPOINT 1.
  • Page 7: Maintenance

    Service and Installation Manual MAINTENANCE The power must be turned OFF and the unit disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. DANGER Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner.
  • Page 8: Standard Labor Guidelines

    Service and Installation Manual MAINTENANCE Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are commonly found in hard water, salts, and household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse repeatedly and dry thoroughly.
  • Page 9 Service and Installation Manual MAINTENANCE Swing Door Replacement and Adjustment 1. Open the bottom panel and hold the door. Then loosen the bottom hinge screw and take off the old door. 2. Prepare new door; insert top pin into top hinge, get one bottom hinge to hold the door with the bottom pin. Fasten bottom hinge securely to the door frame with three screws.
  • Page 10: Wiring Diagram

    Service and Installation Manual WIRING DIAGRAM MODEL: KSM-48 MODEL: KGM-72...
  • Page 11 Service and Installation Manual WIRING DIAGRAM MODEL:KGF-23 MODEL: KGF-48DV...
  • Page 12 Service and Installation Manual WIRING DIAGRAM MODEL: KGF-72DV...
  • Page 13 Service and Installation Manual WIRING DIAGRAM MODEL: KSM-48...
  • Page 14 Service and Installation Manual WIRING DIAGRAM MODEL: KGF-23...
  • Page 15 Service and Installation Manual WIRING DIAGRAM MODEL:KGF-48...
  • Page 16 Service and Installation Manual WIRING DIAGRAM MODEL:KGF-72DV...

This manual is also suitable for:

Kgf-48Kgf-72dv
