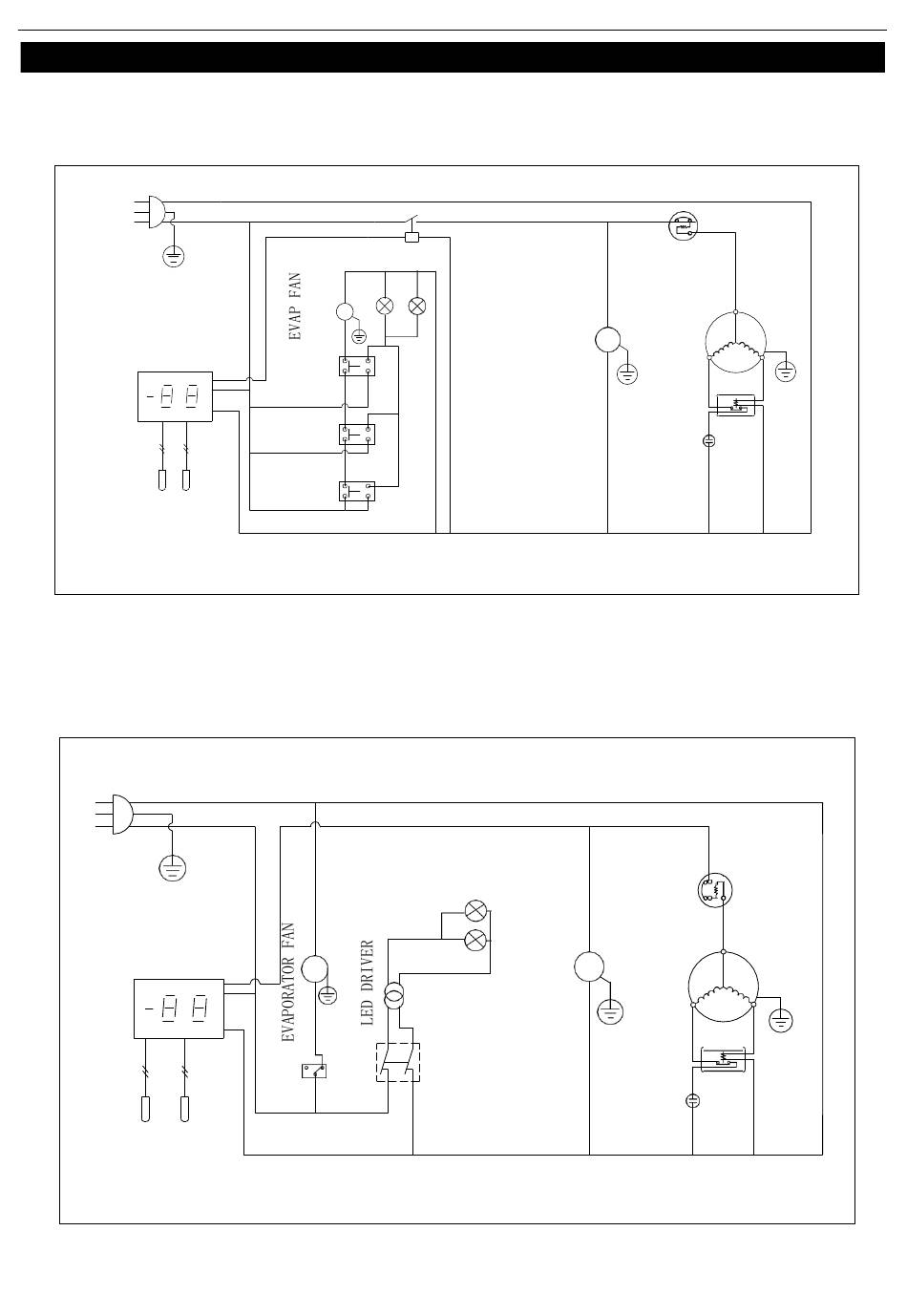

ELECTRICAL DIAGRAM
MODEL：IB81R
N
L
PLUG
THERMOSTAT DISPLAY
ROOM
SENSOR
MODEL：IB27RG
N
L
PLUG
THERMOSTAT DISPLAY
ROOM
SENSOR
10
CONTACTOR
LAMP
M
EVAP
DOOR SWITCH
M
EVAP
DOOR SWITCH
Service and Installation Manual
M
LAMP
M
STARTING
LAMP SWITCH
CAPACITOR
OVERLOAD
PROTECTOR
COMPRESSOR
CONDENSER
FAN
CURRENT
RELAY
OVERLOAD
PROTECTOR
CONDENSER
COMPRESSOR
FAN
CURRENT
RELAY
