Refrigerator
Freezer
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!

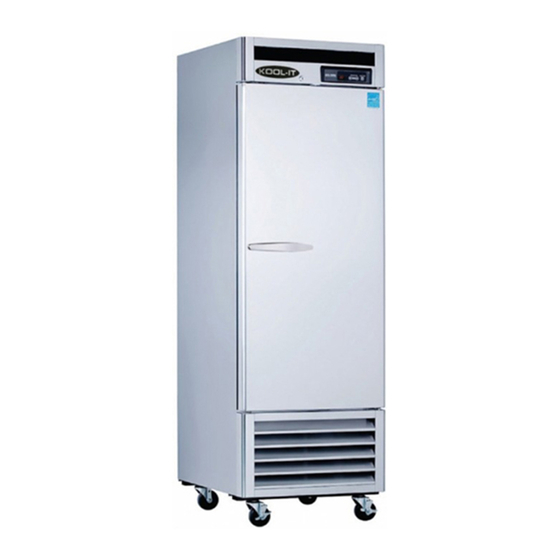

KBSR-1
KBSF-1
IMPORTANT SAFETY INSTRUCTIONS
KBSR-2
KBSF-2
CAUTION!
PLEASE KEEP POWER SWITCH ON
BEFORE OPERATING THE UNIT
ATTENTION!
GARDEZ EN BOUTON ALLUME
AVANT D'OPERER L'UNITE
KBSR-3
KBSF-3
R5109-162
Advertisement
Table of Contents
Related Manuals for Kool-It KBSR-1
Summary of Contents for Kool-It KBSR-1
- Page 1 BEFORE OPERATING THE UNIT Refrigerator Freezer ATTENTION! Installation and Operation Manual GARDEZ EN BOUTON ALLUME AVANT D’OPERER L’UNITE Please read this manual completely before attempting to install or operate this equipment! KBSR-1 KBSF-1 KBSR-2 KBSF-2 KBSR-3 KBSF-3 IMPORTANT SAFETY INSTRUCTIONS R5109-162...
-
Page 2: Table Of Contents
6-1. REFRIGERATOR 5 - 6 6-2. FREEZER 7 - 8 7. TROUBLE SHOOTING GUIDE SPECIFICATIONS Solid Door Refrigerators MODEL COMP. H.P REFRIGERANT AMPS WEIGHT 2.0A KBSR-1 R-290 271LBS 2.4A KBSR-2 R-290 370LBS 5.5A KBSR-3 R-290 507LBS Solid Door Freezers MODEL COMP. -
Page 3: Installation
INSTALLATION 1. GOOD AIR CIRCULATION - Be sure to avoid any object which will restrict exhausted air flow. - Be sure that there is ample space so that air can flow through the rear of the unit. - The back of the unit should be located no less than 5 inches from the wall. 2. -
Page 4: Cleaning
CLEANING 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water with soap. - Do not use an abrasive cleaner because it will scratch the surface. 2. CLEANING THE CONDENSER FINS - To maintain proper refrigeration performance, the Condenser coil must be free of dust, dirt, and grease. -
Page 5: Basic Operation
Please refer to the ENERGY STAR related information in www.energystar.gov for more details. BASIC OPERATION KBSR-1, KBSR-2, KBSR-3 REFRIGERATOR 1. Plug in and turn on the power switch located on the bottom of the top grill. - Page 6 DISPLAY PANEL DOOR OPENING INSIDE TEMP. TEMP. CONTROL BUTTON 1. UP / DOWN BUTTON (Temperature control button) - By pushing the up/down button, you can set the inside temperature. 2. DOOR OPENING INDICATOR - If door is opened, door opening indicator will be turned on. - If the door is left open for 3 minutes an alarm will sound continuously.
-
Page 7: Freezer
BASIC OPERATION KBSF-1, KBSF-2, KBSF-3 FREEZER 1. Plug in and turn on the power switch located on the bottom of the top grill. The Display panel will be lighted. The compressor will begin to run. 2. The default temperature setting is 0 (-18 ) 3. - Page 8 DISPLAY PANEL DOOR OPENING INSIDE TEMP. TEMP. CONTROL BUTTON 1. UP / DOWN BUTTON (Temperature control button) - By pushing the up/down button, you can set the inside temperature. 2. DEFROST - The electronic defrost controller is set at the factory to provide a defrost cycle every 8 hours.
-
Page 9: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE SYMPTOMS CAUSES SOLUTIONS Refrigerator/Freezer is The Temp. is set too low (high) Push the button to a warmer to maintain food freshness. (colder) position. freezing (thawing) food. Check the power cord to The unit does not There is a power make sure the unit is plugged connection failure problem. - Page 10 MEMO...
- Page 11 MEMO...
- Page 12 5659 ROYALMOUNT AVE 12000 BISCAYNE BLVD. STE 108 MONTREAL,QC H4P2P9 MIAMI,FL 33181 786-600-4687 514-737-9701 844-218-8477 888-275-4538...
