protech prox PA-A900 Quick Reference Manual

PA-A900
Quick
Reference
Guide

Specifications

CPU Support Intel
Memory 1 x DDR3L SO-DIMM slot (up to 8GB)
Network 10/100/1000Mbps Base-T Fast Ethernet
Power Supply 60~90 Watt Power Adapter
System
Audio 2W Speaker
System Weight with power adaptor approx. 4kg
Dimensions (WxHxD) 372 x 169 x 315mm
O.S. Support Windows 10
1 x 2.5" HDD or SSD
Storage
SATA
1 x M.2 2242 (SATAIII interface)
USB
Rear: 2 x USB 3.0 + 2 x USB 2.0
Side: 1 x USB 2.0
Serial Ports 3 x RJ45 (support +5V/12V selectable) + 1 (optional) x DB9
LAN 1 x RJ45
VGA 1 x DB15
I/O Ports
HDMI 1 x HDMI
Cash Drawer 1+1(option, with Y cable) x RJ11 (+12V or +24V selectable)
Audio 1 (optional) x Line Out phone jack
1 (optional) x Mic In phone jack
DC IN 1 x 4-pin DC Power Jack
Customer Display VFD, 20 columns and 2 lines, each column is 5 x 7 dots
Printer 2" or 3" easy loading thermal printer with auto-cutter
Add-ons
MSR & iButton JIS I,II , ISO Track1+2+3 (PS/2 interface)
Fingerprint 8-bit grayscale reader
LCD 15.6" TFT LCD
Resolution 1366 x 768
Display
Brightness 220 cd/m²
Touchscreen 15.6" P-CAP touch panel, USB interface
Tilt Angle 40 degrees
EMC & Safety CE / FCC
Operating Temp. 0°C ~ 35°C (32°F ~ 95°F)
Environment
Storage Temp. -5°C ~ 60°C (23°F ~ 140°F)
Humidity 20% ~ 90%
All Rights Reserved. Copyright 2019
PA-A900
® ®
Celeron J3355 / 3455 CPU
(optional) 2 x USB 2.0 +1 x power USB (+12V/+24V)

Packing Checklist

If you discover any item below are damaged or
lost, please contact your vendor immediately.
PA-A900
This Quick Reference Guide
AC Power Adaptor
COM Port to RJ45 Cable (L =150mm)
Manual/Driver CD
Ver. Q1

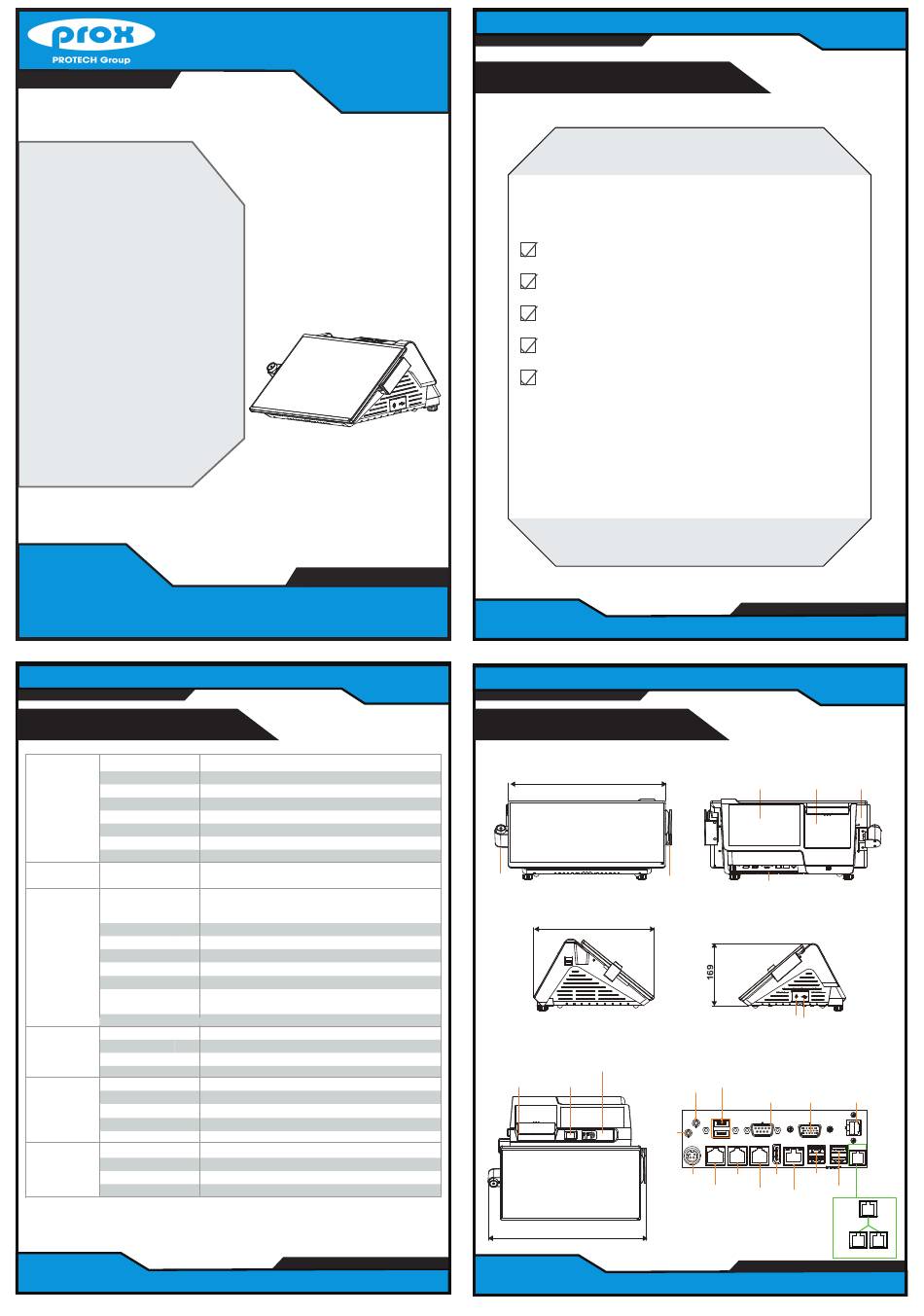

System View

Front View
iButton
Left Side View
Top View
Printer
Paper Out Fingerprint
419
Rear View
2nd Display
372
(optional)
Line
Out USB3/4 USB1/2
MSR
Right Side View
314
Power Button
I/O View
Power USB
RFID
(Option 2)
USB Port
Line Out
(Option 1)
(Option)
LINE
OUT
Mic In
Mic
(Option)
DC IN
COM1 COM2
DC IN COM2
COM1
COM3
PA-A900
x1
x1
x1
x1
x1
PA-A900
Unit: mm
Barcode
Printer Scanner
VGA CD-1 COM1 DC-In
I/O Ports
USB 2.0
COM4
VGA DWR2
(Option) (Option) (Option)
DWR2
COM4
VGA
HDMI
COM3 USB 1/2 USB 3/4
LAN
DWR
DWR
HDMI USB 3.0
USB 2.0
LAN
DRW1
extended with
Y cable
DRW1-1 DRW1-2
