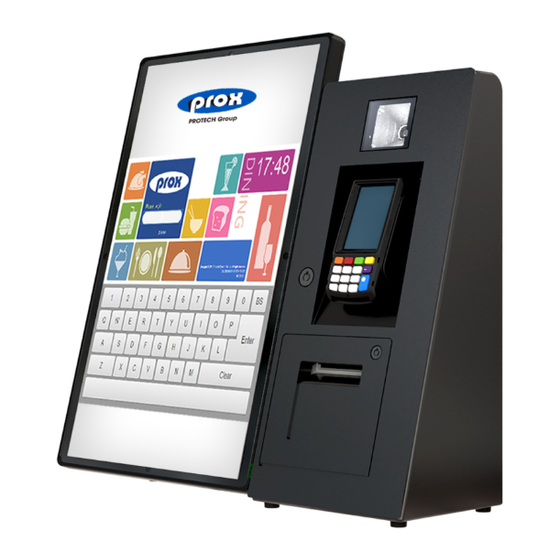

protech prox PA-R120 Quick Reference Manual

PA-R120
Quick
Reference
Guide

Specifications

CPU Support

Memory

Network

Storage

Audio
System
Printer
2D Scanner
Net Weight
Dimensions
O.S. Support

Power Supply

USB

Serial Ports

I/O Ports

LAN

Cash Drawer
2nd, 3rd display
support port
Sound
Power Switch
LCD

Max. Resolution

Monitor
Brightness

Touchscreen

Operating Temp.
Environment
Storage Temp.
Humidity
Power Supply
All Rights Reserved. Copyright 2020
All Rights Reserved. Copyright 2017
PA-R120
Intel ® Kaby Lake i5-7300U / i3-7100U / 4415U / 3965U
1 x DDR4 SO-DIMM socket, up to 16GB
1 x Giga LAN (RJ45) for 10/100/1000Mbps
1 x 2.5" HDD or SSD
1 x M.2 (2242 type, SATA Interface)
2W speaker
2"/3" Thermal printer
Paper roll size: 58mm/80mm(W) x 80 mm
Printing speed: 170mm/s
Fixed Mount Barcode Scanner
Image Sensor: 800× 800 CMOS
Resolution: ≥ 4mil
Symbologies:
2D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc.
1D: EAN-8,EAN-13,UPC-A,UPC-E,ISSN,ISBN, Codabar,
Standard 2 of 5,Code 128, Code93, ITF-6, ITF-14, GS1 Databar,
MSI-Plessey, Code 39, Interleaved 2 of 5, industrial 2 of 5,
Matrix 2 of 5, Code 11, Plessey, etc.
18kg
558 x 523 x 173 mm (W x H x D)
Windows 10
AC 100-240V available
PPC: 2 x USB 2.0 Type A (option)
Chassis: 2 x USB 3.0, Type A
PPC: 1+1(option) x COM ports
COM1: RS-232 D-sub, RI/5V/12V selectable under BIOS
COM4 (option): RS-232(RJ45), RI/5V/12V selectable
by jumper
Chassis: COM2 / COM3 ports (option)
COM2/3: RS-232 (D-sub), RI/5V/12V selectable by jumper
Chassis: 1 x Giga LAN (RJ45) for 10/100/1000Mbps
PPC: 1 x RJ11, 12V/24V selectable by jumper
PPC: 1 x VGA D-sub, 1080P &
1 x HDMI port, 4096 x 2304
PPC: 1 x Mic & Line Out (option)
Chassis: 1 x power switch
21.5" TFT LCD
1920 x 1080
250 cd/m²
Bezel-free projected capacitive touchscreen
0°C ~ 35°C (32˚F ~95˚F)
-5°C ~ 60° C (23˚F ~140˚F)
20% ~ 90%
Packing Checklist
If you discover any item below was damaged or lost,
please contact your vendor immediately.
PA-R120
This Quick Reference Guide
Power Adaptor
AC Power Cord
Driver DVD
Ver. Q2

System View

Front View
558
PPC I/O
Line
(option)
(option)
Out
MIC
Power
Switch
(for printer)
USB
USB
(option) COM4
(option)
Power Button and HDD
Power Button (inside, standard)
Side View
173
DRW VGA USB2 USB5
24V
DC-IN
USB1 USB3
The I/O ports with orange frames are for Chassis I/O usage.
The I/O ports with blue frames are PPC I/O ports.
Power Button (outside, option)
PA-R120
X 1
X 1
X 1
X 1
X 1
PA-R120
PIP1230 PA-3122
Unit: mm
Chassis I/O
USB
COM
(option)
LAN
Power Button
HDMI
COM2 COM1
LAN COM3
HDD
