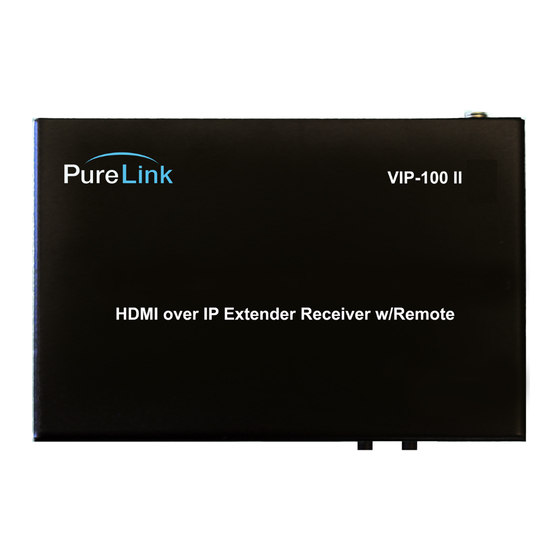

- Page 1 VIP-100 II H.264 HDMI Extender over IP Extender With LED, Remote, POE, RS232 User Manual...
- Page 2 VIP-100 II Series H.264 Encoder Decoder User Manual Introduction The VIP100 II series incorportates the advanced H.264 codec as the compression type, which makes it occupy lower bandwidth and transmit over the LAN more smoothly. It supports 120m over single cat5e/6 cable at point to point, as well as point to many and many to many over Ethernet switch.
- Page 3 VIP-100 II Series H.264 Encoder Decoder User Manual 2. 1 Specifications Performance Protocol H.264 encoder over TCP/IP Support Video format 480i/480p/576i/576p/720p/1080i/1080p@60HZ Support Audio format LPCM, Audio sampling rate 48KHZ Streaming Bit Rate 15Mbps HDCP Compliant IR Frequency 38 -56 KHZ...
- Page 4 VIP-100 II Series H.264 Encoder Decoder User Manual 2. 1 Supported input resolution Frequency Resolution 576i 576P 50Hz 720P 1080P 1080i 480i 480P 60Hz/59.94Hz 720P 1080P 30Hz/29.97Hz 1080P 24Hz 1080P 25Hz 1080P VESA Resolution Frequency Resolution 640×480 800×600 1024×768 1280×768 1280×960...
- Page 5 VIP-100 II Series H.264 Encoder Decoder User Manual 3. Packing content 1). 1x Transmitter 2). 1x Receiver 3). 1x IR-TX cable 4). 1x IR-RX cable 5). 2X IR Ext Cable 6). 1x Manual 7). 8x screws 8). 4x detachable mounting ears 9).
- Page 6 VIP-100 II Series H.264 Encoder Decoder User Manual 2). RX 1) DC 5V 1A input 2) Green indicator of data status 3) Red indicator of power input 4) HDMI output 5) CAT5e/6 input 6) IR-RX 7) RS232 port 8) IR-Ext...
- Page 7 VIP-100 II Series H.264 Encoder Decoder User Manual 4.1. Panel Drawing Transmitter Receiver...
- Page 8 VIP-100 II Series H.264 Encoder Decoder User Manual 5. Installation and Configuration 5.1 Setup HDMI TX and RX When connecting point to point, no need to configure TX and RX, When connecting point to many, many to point and many to many, please make sure every TX and RX has unique IP and MAC address, every TX has unique group ID.
- Page 9 VIP-100 II Series H.264 Encoder Decoder User Manual Step 1: Make sure the Transmitter and PC are in the same domain. Access the Network Setting Control Panel in Windows and locate your Lan connection. Under Windows 7, this can be done by clicking Start >...
- Page 10 VIP-100 II Series H.264 Encoder Decoder User Manual 5.1.2 Choose the Group ID and Baud Rate by Remote controller (When the LED shows “00”, it’s ready to work) ① Press the button, switch to choose the Group ID or Baud rate.
- Page 11 VIP-100 II Series H.264 Encoder Decoder User Manual 5.1.3 Set the group ID for TX and RX via web browser Step 1: Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1) Step 2: Use an Ethernet Cable to connect the PC (or laptop) and the Extender.
- Page 12 VIP-100 II Series H.264 Encoder Decoder User Manual 3. Connect another HDMI display and the HDMI Receiver unit with HDMI Cable. 4. Connect the Transmitter and Receiver with Cat5e/6 cable 5. Connect the IR TX cable into “IR TX” port of the transmitter; Connect the IR RX cable into “IR RX”...
- Page 13 VIP-100 II Series H.264 Encoder Decoder User Manual 3. Connect the HDMI looping output of the Transmitter to the local HDMI Display. 4. Connect the transmitter and the switch/router with cat5e or cat6 cable. 5. Connect all the Receivers and the switch/ router with Cat5e/6 cable.
- Page 14 VIP-100 II Series H.264 Encoder Decoder User Manual 10. Choose the source by Remote controller or Web browser as instructed above (5.1.2) ※ Daisy chain the switch if its RJ45 port is not enough. ※ The quantity of Transmitter is no more than 64 pcs.
- Page 15 VIP-100 II Series H.264 Encoder Decoder User Manual 6. RS232 and Baud rate The unit provides a path to pass through the RS232 signal, RS232 passes from TX to RX or from RX to TX, connect to your RS232 devices, such as PC, IP Camera, Creston control panel, Smart Matrix, printer and Scanner and so on.
- Page 16 VIP-100 II Series H.264 Encoder Decoder User Manual 9. PC Tool Instructions Step 1: Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1) Step 2: Open the PC Tool. Step 3: Click “Start Scan”.
- Page 17 VIP-100 II Series H.264 Encoder Decoder User Manual Step 4: Choose the TX or RX Name. 9.1 Firmware Upgrade Upgrade for TX Step 1: Click “Firmware Upgrade”.
- Page 18 VIP-100 II Series H.264 Encoder Decoder User Manual Step 2: Click “Upgrade Encoder FW” first.
- Page 19 VIP-100 II Series H.264 Encoder Decoder User Manual Step 3: After the step 2 is finished, click “Firmware Upgrade” again, then click “Upgrade TX FW”. Upgrade for RX Step 1: Click “Firmware Upgrade”.
- Page 20 VIP-100 II Series H.264 Encoder Decoder User Manual Step 2: Click “Upgrade Rx FW”.
- Page 21 VIP-100 II Series H.264 Encoder Decoder User Manual 9.2 Other settings Step 1: Change the IP/Netmask/Gateway/DHCP/Uart Baudrate/Group ID/Mac Address/ Device name on the PC tool interface. Step 2: Click “Update”, after “Update” is finished, click “Reboot”.
- Page 22 VIP-100 II Series H.264 Encoder Decoder User Manual 9.2 Click “Factory Reset” on TX or RX.
- Page 23 VIP-100 II Series H.264 Encoder Decoder User Manual 10. How to use VLC Step1: Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1) Step2: Connect the HDMI Source without HDCP with the transmitter and power on the device.
- Page 24 VIP-100 II Series H.264 Encoder Decoder User Manual Step 6: Click “Next”. Step 7: Choose “RTP / MPEC Transport Stream” or "UDP".
- Page 25 VIP-100 II Series H.264 Encoder Decoder User Manual Step 8: Click “Next”. Step 9: Click “Stream”.
- Page 26 VIP-100 II Series H.264 Encoder Decoder User Manual Step 10: Click “Open Network Stream”, then you can click “Play” to view the video.
