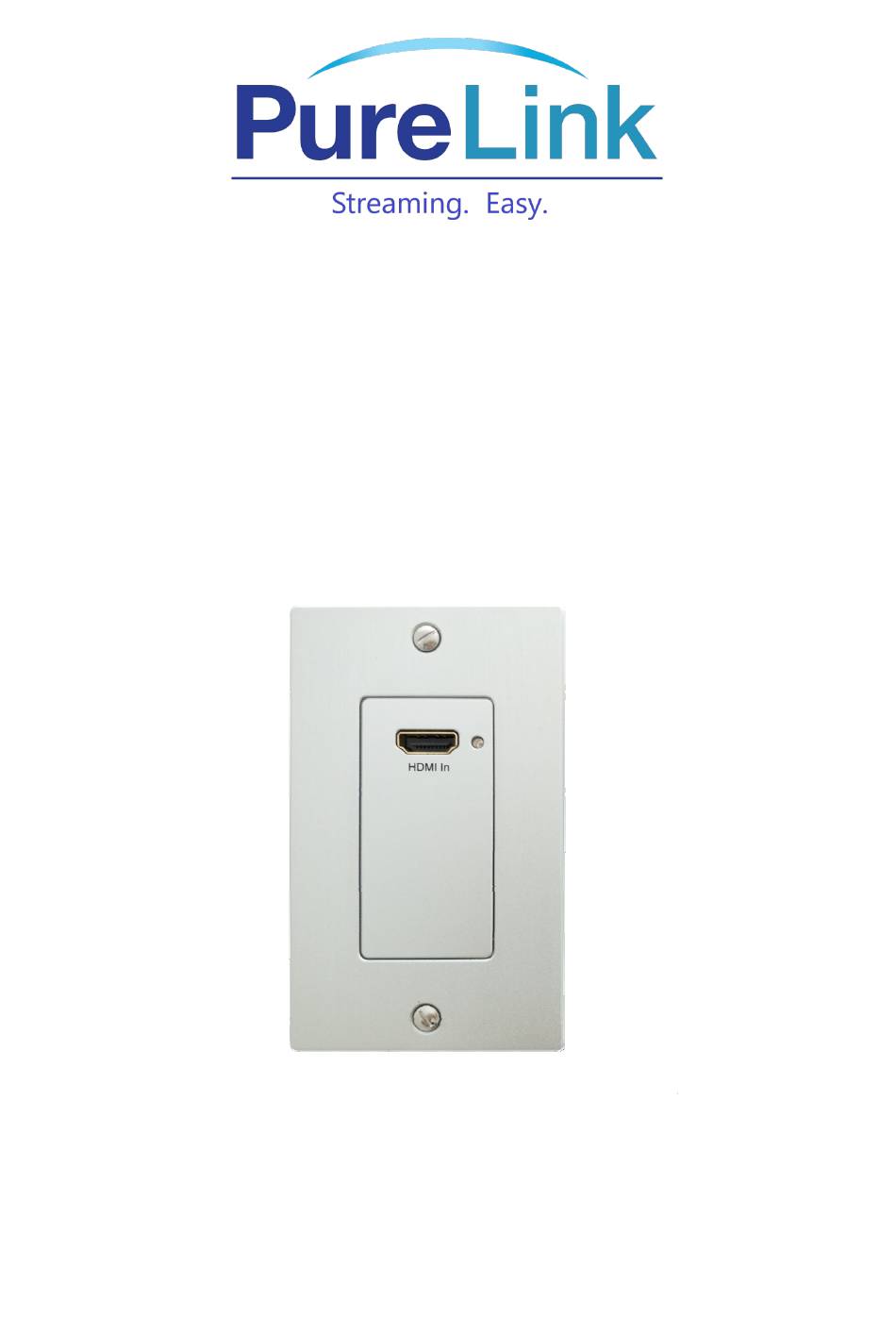

- Page 1 H.264 120m HDMI Wallplate Extender over IP User Manual...
- Page 2 LAN more smoothly. It supports 120m over single cat5e/6 cable at point to point, as well as point to many and many to many over Ethernet switch. The VIP-101-E-WP works with the VIP-100 II encoders and decoders. 1. Features...
- Page 3 VIP-101-E-WP H.264 Encoder User Manual 2. 1 Specifications Performance Protocol H.264 encoder over TCP/IP Support Video format 480i/480p/576i/576p/720p/1080i/1080p@60HZ Support Audio format LPCM, Audio sampling rate 48KHZ Streaming Bit Rate 15Mbps/1080P HDCP Compliant IP setting &Group ID setting Default IP TX: 192.168.1.11 ; RX: 192.168.1.12...
- Page 4 VIP-101-E-WP H.264 Encoder User Manual 2. 1 Supported input resolution Frequency Resolution 576i 576P 50Hz 720P 1080P 1080i 480i 480P 60Hz/59.94Hz 720P 1080P 30Hz/29.97Hz 1080P 24Hz 1080P 25Hz 1080P VESA Resolution Frequency Resolution 576i 576P 50Hz 720P 1080P 1080i 480i 480P 60Hz/59.94Hz...
- Page 5 VIP-101-E-WP H.264 Encoder User Manual 3. Packing content 1). 1x Transmitter 2). 1x Receiver 3). 1x Manual 4). 2x 6#-32x7/32" screws 5). 4x 4#-32x5/8" screws 6). 2x Phoenix plugs for power supply 7). 2x Power supply 4. Panel description Transmitter...
- Page 6 VIP-101-E-WP H.264 Encoder User Manual 5. Installation and Configuration 5.1 Setup When connecting point to point, no configuration is needed. When connecting point to many, many to point and many to many, please make sure every TX and RX has unique IP and MAC address, every TX has unique group ID.
- Page 7 VIP-101-E-WP H.264 Encoder User Manual Step 1: Make sure the Transmitter and PC are in the same domain. Access the Network Setting Control Panel in Windows and locate your Lan connection. Under Windows 7, this can be done by clicking Start >...
- Page 8 VIP-101-E-WP H.264 Encoder User Manual 5.1.2 Set the group ID for TX and RX via web browser Step 1: Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1) Step 2: Use an Ethernet Cable to connect the PC (or laptop) and the Extender.
- Page 9 VIP-101-E-WP H.264 Encoder User Manual 5.3.1 Point to point 1. Connect the source device and the Transmitter unit with HDMI Cable. 2. Connect HDMI display and the HDMI Receiver unit with HDMI Cable. 3. Connect the Transmitter and Receiver with Cat5e/6 cable 4.
- Page 10 VIP-101-E-WP H.264 Encoder User Manual 5.3.4 Many to many 1. Setting the IP address for Transmitter & Receiver and preparing the switch following the steps as instructed above (5.1.1&5.2) 2. Connect the source device and the Transmitter unit with HDMI Cable.
- Page 11 VIP-101-E-WP H.264 Encoder User Manual ※The total qty of TX, RX, Switch is less than 256pcs. 6. Firmware update We provide the firmware to upgrade the units when it is necessary. Please follow up bellowing steps to update the firmware.
- Page 12 VIP-101-E-WP H.264 Encoder User Manual Step5: Click “Upgrade”, the process will takes seconds, please DO NOT interrupt or power off the units during the time. 7. PC Tool Instructions Step 1: Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1)
- Page 13 VIP-101-E-WP H.264 Encoder User Manual Step 4: Choose the TX or RX Name. 7.1 Firmware Upgrade Upgrade for TX Step 1: Click “Firmware Upgrade”.
- Page 14 VIP-101-E-WP H.264 Encoder User Manual Step 2: Click “Upgrade Encoder FW” first.
- Page 15 VIP-101-E-WP H.264 Encoder User Manual Step 3: After the step 2 is finished, click “Firmware Upgrade” again, then click “Upgrade TX FW”. Upgrade for RX Step 1: Click “Firmware Upgrade”.
- Page 16 VIP-101-E-WP H.264 Encoder User Manual Step 2: Click “Upgrade Rx FW”.
- Page 17 VIP-101-E-WP H.264 Encoder User Manual 7.2 Other settings Step 1: Change the IP/Net mask/Gateway/DHCP/Group ID/Mac Address/ Device name on the PC tool interface. Step 2: Click “Update”, after “Update” is finished, click “Reboot”.
- Page 18 VIP-101-E-WP H.264 Encoder User Manual 7.3 Click “Factory Reset” on TX or RX. 8. After sale Service and Warranty.
- Page 19 VIP-101-E-WP H.264 Encoder User Manual 9. How to use VLC Step1: Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1) Step2: Connect the HDMI Source without HDCP with the transmitter and power on the device.
