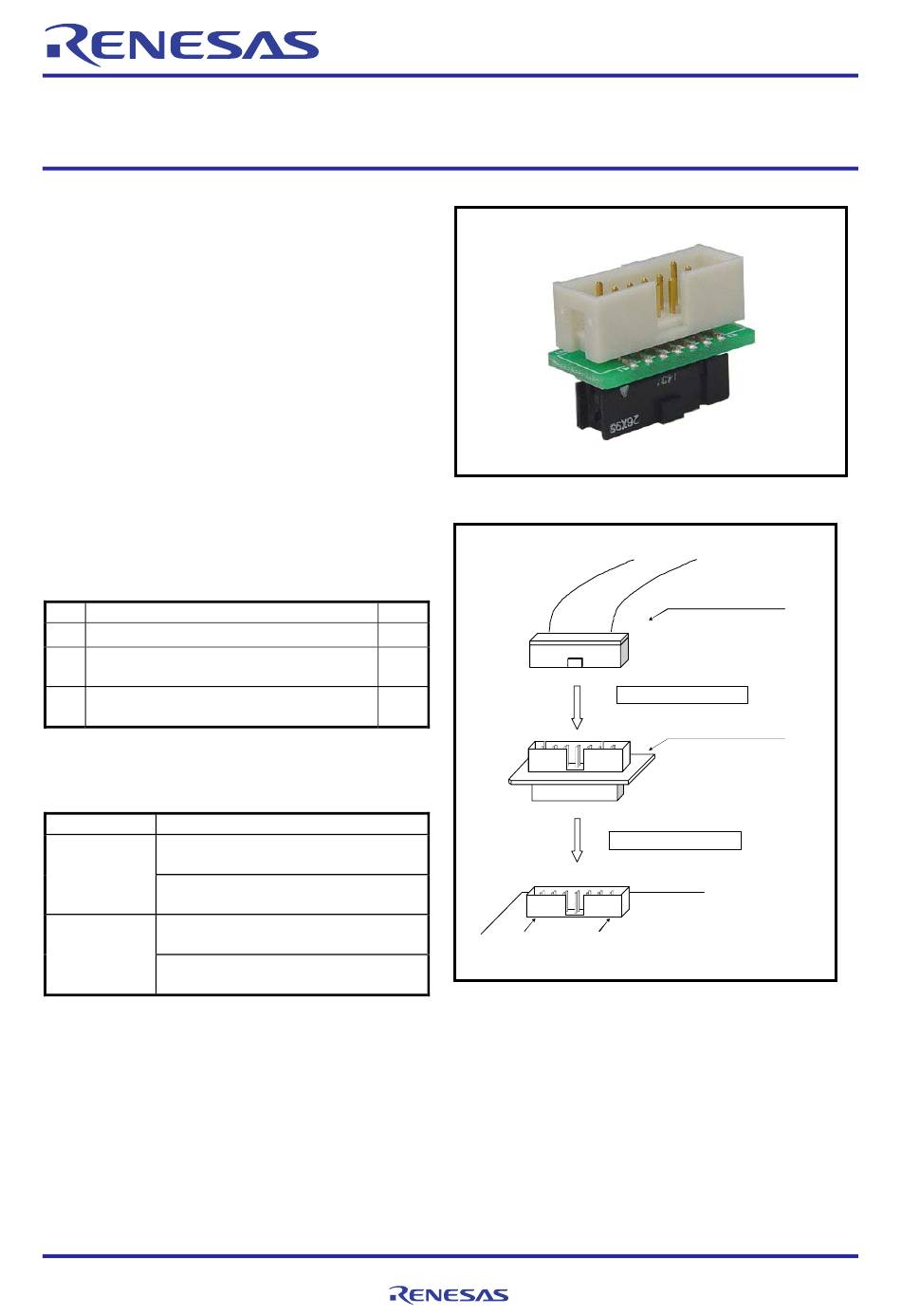

Renesas R0E000010ACB00 User Manual

R0E000010ACB00
Hot-plug Adapter for the E1 Emulator

1. Outline

The R0E000010ACB00 is used for the hot plug-in
function of the E1 emulator. This product allows you
to connect the E1 emulator to the running user
system without turning off the power.
The availability of the hot plug-in function depends
on the MCU and emulator debugger used. For the
information of this function, be sure to read the latest
edition of "E1/E20 Emulator Additional Document
for User's Manual" supplied for each MCU group.

2. Package Components

Before using this product, confirm that the
R0E000010ACB00 package contains the following items.
Table 1 Package Components
R0E000010ACB00
(1)
R0E000010ACB00 User's Manual
(2)
(this document)
(3) R0E000010ACB00 User's Manual
(Japanese)

3. Specifications

Table 2 Specifications
Item
ASP-151208-01
Upper
(manufactured by Samtec, Inc.)
connector
Guaranteed number of times for
(CN1)
insertion and removal: 50
XG4H-1431 (manufactured by
Lower
Omron Corporation)
connector
Guaranteed number of times for
(CN2)
insertion and removal: 50
4. Usage (See Figure 2)
The R0E000010ACB00 is connected between the user-system interface cable (for the E1) and a 14-pin connector on the
user system as shown in Figure 2.
(1) Connect the adapter to the operating user system (while the power is ON).
(2) Power on the E1 emulator, then launch the debugger. Enable hot plug-in when launching the debugger.
(3) Attach the user-system interface cable (for the E1) to the adapter.
R20UT0163EJ0101 Rev.1.01
Nov 12, 2010
Item
Description

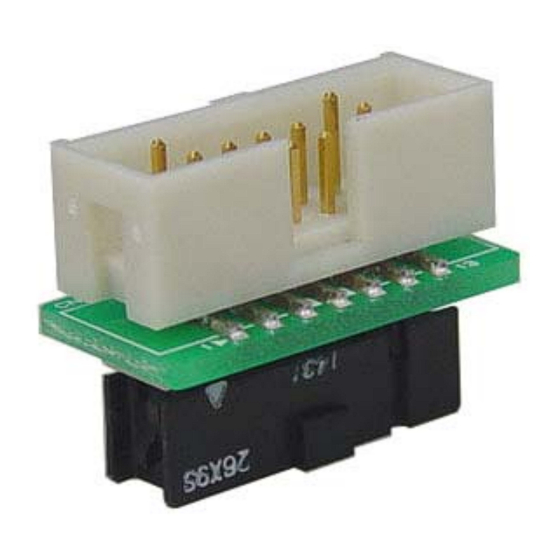

Figure 1 External View of the R0E000010ACB00
Qty.
1
1
1
CN1
CN2
Pin 1
Figure 2 Usage of the R0E000010ACB00
User's Manual
R20UT0163EJ0101
User-system interface cable for
the E1 (R0E000010KCE00)
Lower the head of the cable
as perpendicularly as possible
to CN1 to attach.
Order of connection: 2nd
R0E000010ACB00, i.e. this product
Order of connection: 1st
User system
Pin 13
Rev.1.01
Nov 12, 2010
Page 1 of 4
