Renesas R0E000010ACB10 User Manual

R0E000010ACB10
Isolator for the E1 Emulator
1. Preface

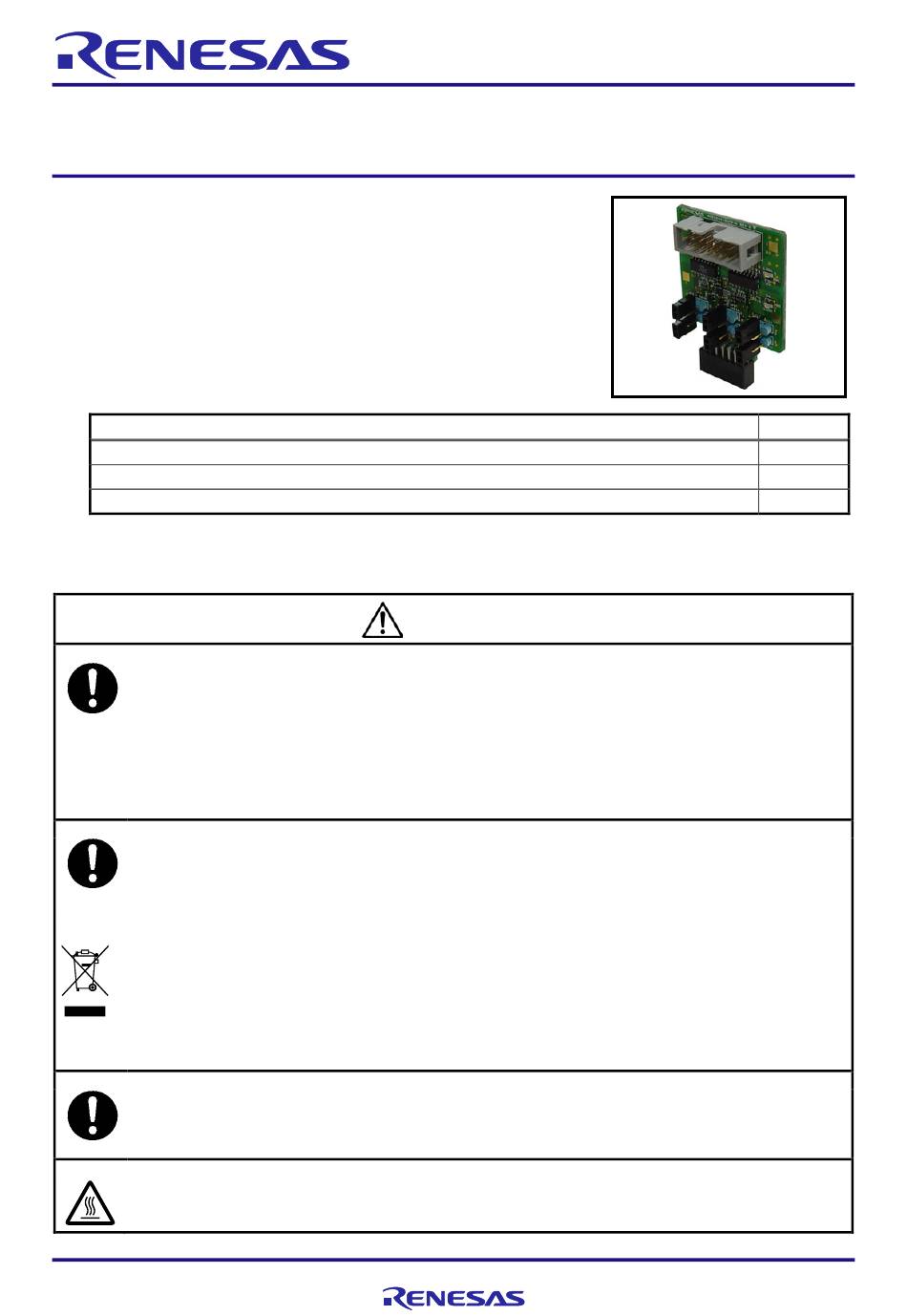

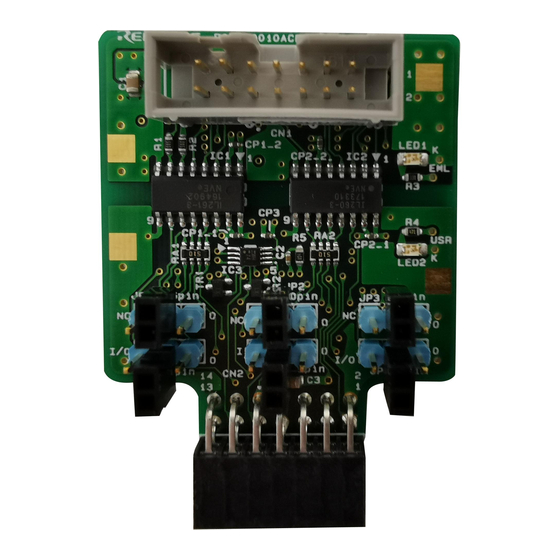

The R0E000010ACB10 is an isolator for the E1 and E8a emulators. This product
is used for a debugging environment where there is a GND gap between the user
system and emulator system.
Package Components
Before using this product, check if your R0E000010ACB10 contains all of
these items.
Table 1.1 Package Components
R0E000010ACB10 (Isolator for the E1 emulator)
R0E000010ACB10 User's Manual (English) (This manual)
R0E000010ACB10 User's Manual (Japanese)
Note: Please handle this product as precision equipment for transportation.
Important
Caution on Isolation Voltage:
This product is intended to isolate a small and electrically safe GND gap between the user system and
emulator system. In any case isolation voltage must be maintained within SELV limits i.e. less than
42.4VAC, or 60VDC.
The isolator must never be used as an element of a safety isolation system. The part could be expected to
function correctly at higher voltage across the isolation barrier; but then the circuitry on both sides of the
barrier must be regarded as operating at an unsafe voltage and further isolation/insulation systems must
form a barrier between these circuits and any user-accessible circuitry according to safety standard
requirements.
Caution to Be Taken for Disposal:
Penalties may be applicable for incorrect disposal of this waste, in accordance with your national
legislation.
European Union regulatory notices:
The WEEE (Waste Electrical and Electronic Equipment) regulations put responsibilities on producers for
the collection and recycling or disposal of electrical and electronic waste. Return of WEEE under these
regulations is applicable in the European Union only. This equipment (including all accessories) is not
intended for household use. After use the equipment cannot be disposed of as household waste, and the
WEEE must be treated, recycled and disposed of in an environmentally sound manner. Renesas
Electronics Europe GmbH can take back end of life equipment, register for this service at
"http://www.renesas.eu/weee".
Cautions to Be Taken for Handling the Isolator:
•
Take full care not to touch any parts or cause short circuits on this product.
•
Protect this product from excessive physical shock.
•
Do not modify this product. Modifying the product will void your warray.
Cautions for Use Temperature:
The isolator is to be used in an environment with a maximum ambient temperature of 35°C.
Care should be taken that this temperature is not exceeded.
R20UT0164EJ0500 Rev.5.00
Jul 16, 2013
Item
CAUTION
User's Manual
R20UT0164EJ0500
Rev.5.00
Jul 16, 2013
Qty.
1
1
1
Page 1 of 8
