Renesas SLG47004V Quick Start Manual

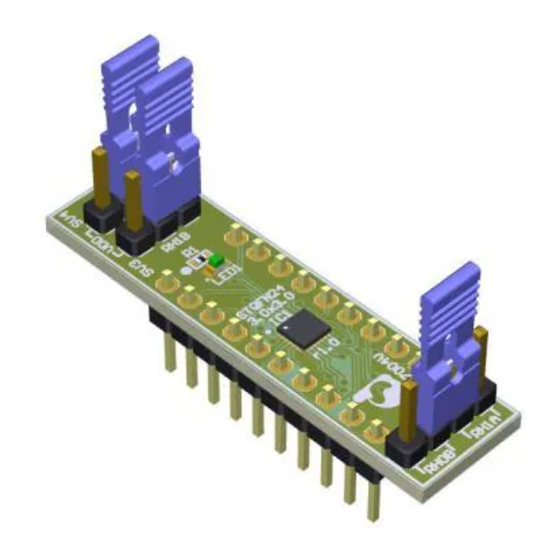

SLG47004V GreenPAK DIP Adapter
Quick Start Guide

1. Description

The GreenPAK DIP Adapter is a small PCB that lets you adapt
STQFN packages into a DIP footprint. This board can speed
up your design prototyping and testing. This small board
0.43x1.67 inch uses 20 pins DIP footprint with 0.3 inch width.
You can also use this adapter for prototyping by making
MSTQFN package compatible with solder free breadboards.

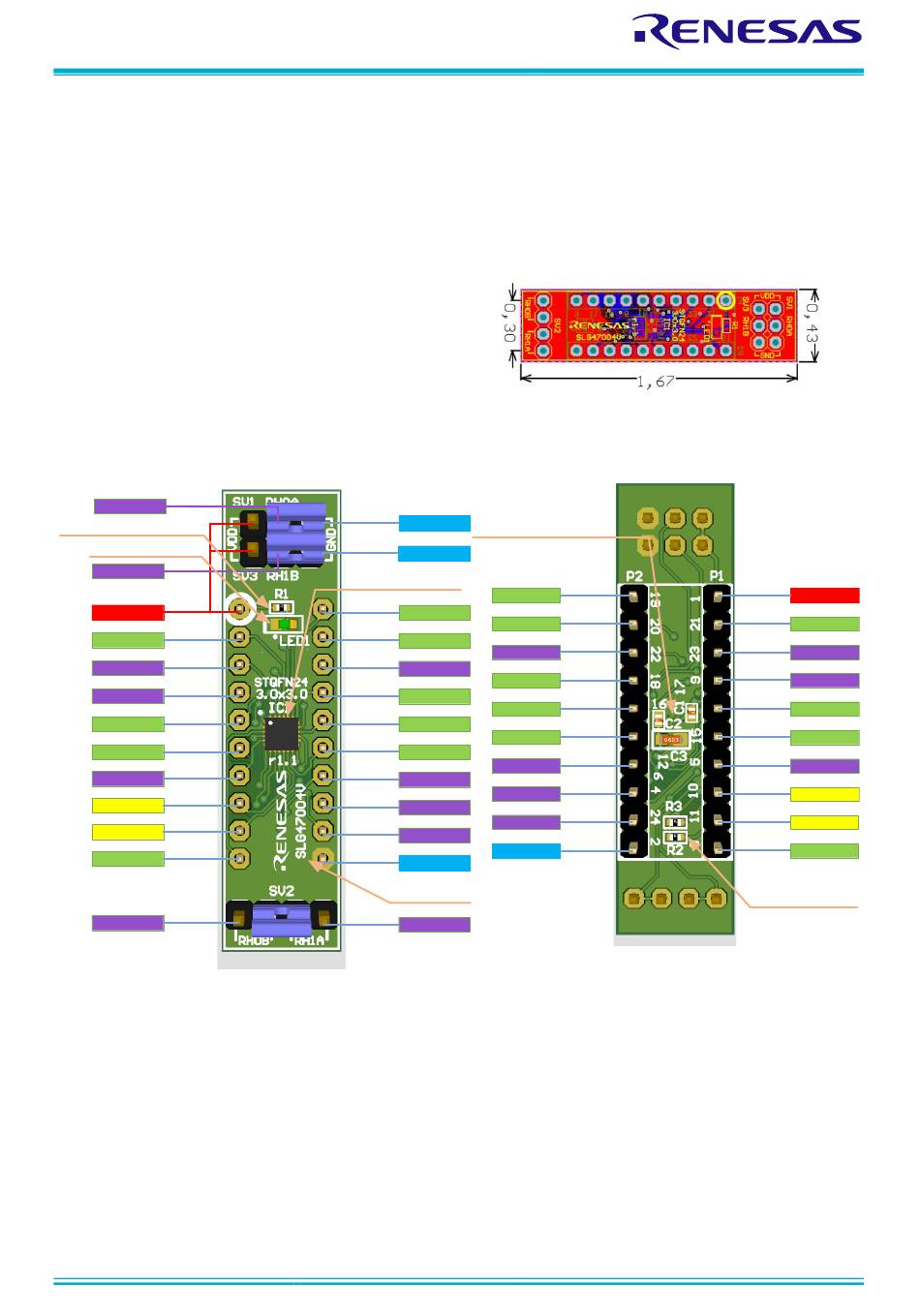

3. Top View

Pins
PIN6 (RH0A)
LED current limit resistor (optional)
VDD LED indicator (optional)
PIN9 (RH1B)
PIN1 (VDD)
PIN21 (GPI)
PIN23 (OA1+)
PIN9 (RH1B)
PIN17 (GPIO)
PIN15 (GPIO)
PIN5 (OA0_OUT)
PIN10 (SCL)
PIN11 (SDA)
PIN3 (OA0-)
PIN7 (RH0B)

2. Features

•
Low cost
•
Simplifies prototyping of SMT IC's
•
Optional V
•
Decoupling capacitor included
•
Optional I
Note 1 All sizes in millimeters (mm).

4. Bottom View

Pins
VDD Chip decoupling
PIN2 (GND)
capacitors (C3 - optional)
PIN2 (GND)
GreenPAK chip
PIN19 (GPIO)
PIN19 (GPIO)
PIN20 (GPIO)
PIN20 (GPIO)
PIN22(OA1_OUT)
PIN22(OA1_OUT)
PIN18 (GPIO)
PIN18 (GPIO)
PIN16 (GPIO)
PIN16 (GPIO)
PIN12 (GPIO)
PIN12 (GPIO)
PIN6 (RH0A)
PIN6 (RH0A)
PIN4 (OA0+)
PIN4 (OA0+)
PIN24 (OA1-)
PIN24 (OA1-)
PIN2 (GND)
PIN2 (GND)
Chip part number
PIN8 (RH1A)
Revision 1.0
1 of 2
LED indicator
DD
2
C pull-up resistors
© 2022 Renesas Electronics Corporation
PIN1 (VDD)
PIN21 (GPI)
PIN23 (OA1+)
PIN9 (RH1B)
PIN17 (GPIO)
PIN15 (GPIO)
PIN5 (OA0_OUT)
PIN10 (SCL)
PIN11 (SDA)
PIN3 (OA0-)
I2C pull-up
resistors (optional)
17-Mar-2022
