SLG46580V GreenPAK DIP Adapter
Quick Start Guide
1. Description

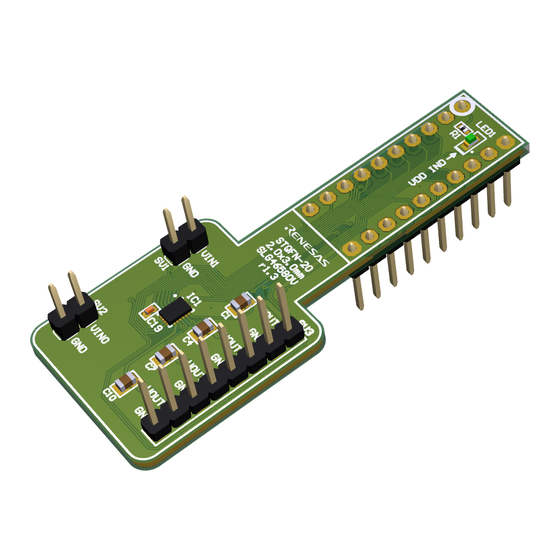

The GreenPAK DIP Adapter is a small PCB that lets you adapt
STQFN packages into a DIP footprint. This board can speed
up your design prototyping and testing. This small board
0.90x2.33 inch uses 20 pins DIP footprint with 0.3 inch width.
You can also use this adapter for prototyping by making TQFN
package compatible with solder free breadboards.
3. Top View
LED current limit resistor (optional)
Pins
PIN7 (VDD)
PIN6 (GPI)
PIN1 (GPIO)
PIN2 (GPIO)
PIN3 (GPIO)
PIN4 (GPIO)
PIN5 (GPIO)
PIN8 (SCL/GPIO)
PIN9 (SDA/GPIO)
PIN18 (GPIO)
Chip package type
Chip package number
PIN15
(LDO_VIN1)
PIN17,20 (GND)
GreenPAK chip
VDD Chip decoupling capacitor
PIN12
(LDO_VIN0)
PIN17,20 (GND)
2. Features
4. Bottom View
VDD LED indicator (optional)
Pins
PIN7, 20 (GND)
PIN16
(R_LDO_VOUT3)
PIN15
(R_LDO_VIN1)
PIN14
(R_LDO_VOUT2)
PIN13
(R_LDO_VOUT1)
PIN12
(R_LDO_VIN0)
PIN11
(R_LDO_VOUT0)
PIN10 (GPIO)
PIN19 (GPIO)
PIN17, 20 (GND)
PIN16
(LDO_VOUT3)
PIN17,20 (GND)
PIN14
(LDO_VOUT2)
PIN17,20 (GND)
PIN13
(LDO_VOUT1)
PIN17,20 (GND)
PIN11
(LDO_VOUT0)
PIN17,20 (GND)
Revision 1.1
1 of 2
Low cost
Simplifies prototyping of SMT IC's
Optional V
LED indicator
DD
Decoupling capacitor included
2
Optional I
C pull-up resistors
Note 1 All sizes in inches.
Pins
PIN7, 20 (GND)
PIN16
(R_LDO_VOUT3)
PIN15
(R_LDO_VIN1)
PIN14
(R_LDO_VOUT2)
PIN13
(R_LDO_VOUT1)
PIN12
(R_LDO_VIN0)
PIN11
(R_LDO_VOUT0)
PIN10 (GPIO)
PIN19 (GPIO)
PIN17, 20 (GND)
PIN16
(LDO_VOUT3)
PIN17,20 (GND)
PIN14
(LDO_VOUT2)
PIN17,20 (GND)
PIN13
(LDO_VOUT1)
PIN17,20 (GND)
PIN11
(LDO_VOUT0)
PIN17,20 (GND)
© 2022 Renesas Electronics Corporation
Chip pin number
Pins
PIN7 (VDD)
PIN6 (GPI)
PIN1 (GPIO)
PIN2 (GPIO)
PIN3 (GPIO)
PIN4 (GPIO)
PIN5 (GPIO)
PIN8 (SCL/GPIO)
PIN9 (SDA/GPIO)
PIN18 (GPIO)
I2C pull up resisitors (optional)
PIN15
(LDO_VIN1)
PIN17,20 (GND)
PIN12
(LDO_VIN0)
PIN17,20 (GND)
17-Mar-2022
