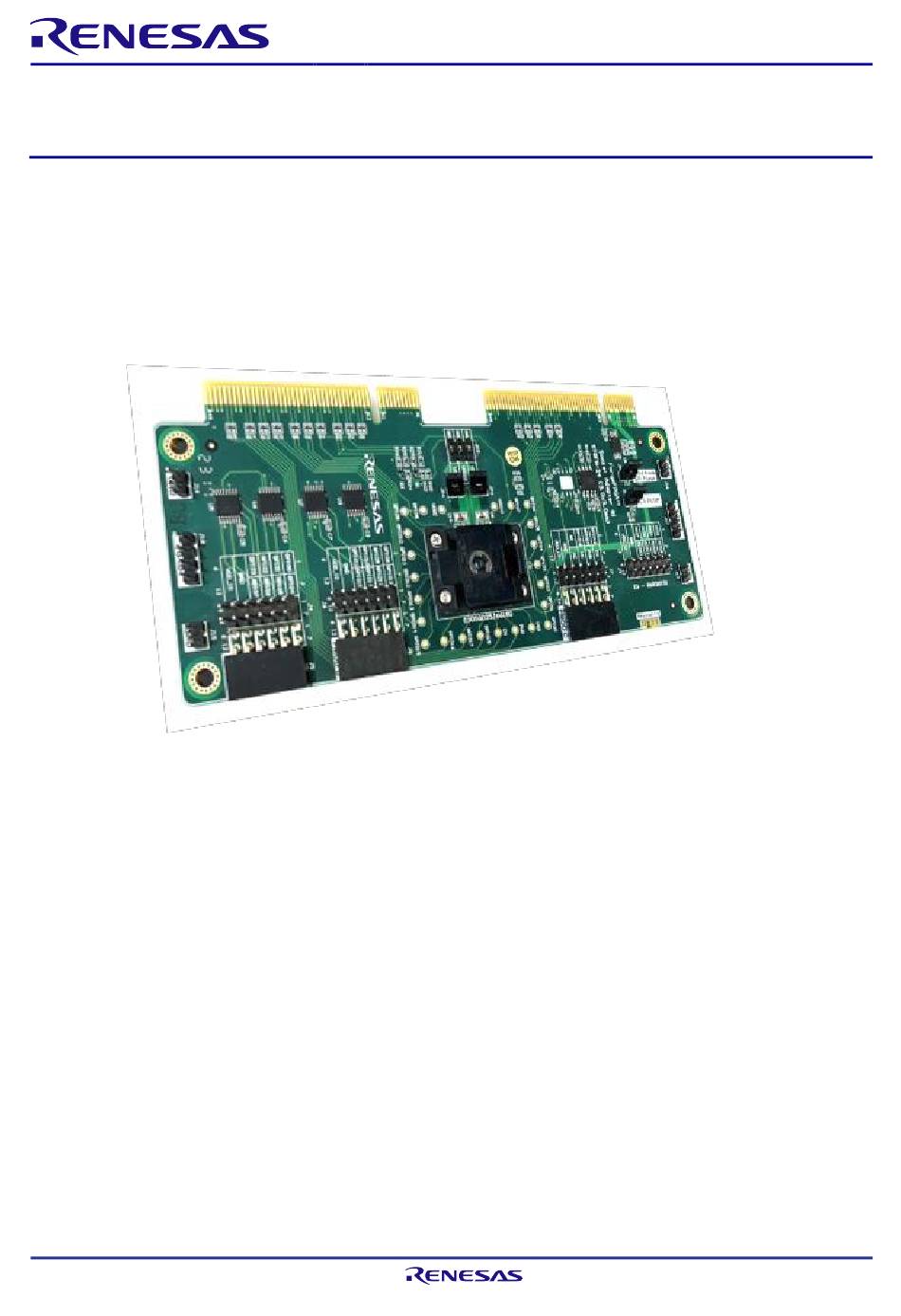

- Page 1 Socket Adapter Manual ForgeFPGA Socket Adapter #1 User Manual ForgeFPGA Socket Adapter #1 Page 1 R12UZ0154EU0100 Rev.1.00 © 2024 Renesas Electronics May 10, 2024...
-
Page 2: Table Of Contents
ForgeFPGA Socket Adapter #1 Contents Functional Description .........................4 GPIO and PMOD Connectors ....................5 Analog I/O ...........................6 FPGA Current Measuring.......................6 SPI Interf ace between FPGA, Flash Memory, Interaction and PMOD Connectors......7 “EXT PWR” Connector ......................7 Working with ForgeFPGA Products ....................8 Stand-alone Working Mode ....................8 Configuration with ForgeFPGA Advanced Development Board ............8 Schematic Diagram........................ -
Page 3: Figure 1. Forgefpga Socket Adapter #1
ForgeFPGA Socket Adapter #1 The "ForgeFPGA™ Socket Adapter #1" implements a connection between the pins of an ForgeFPGA and Development Board. This board can be used for design prototyping with diferent boot modes. Socket Adapter supports PMOD standards which gives ability to connect dif f erent PMOD adapters. Figure 1. -
Page 4: Functional Description
ForgeFPGA Socket Adapter #1 1. Functional Description The f igure below shows the board view and identifies the main components. This board can be used together ™ with ForgeFPGA Advanced Development Board using Dual Interaction Connector to transmit and process signals. -
Page 5: Gpio And Pmod Connectors
ForgeFPGA Socket Adapter #1 GPIO and PMOD Connectors Access to socket pins is provided by GPIO and PMOD connectors. Both GPIO and PMOD connectors have the same pinout. Note that programming signals f rom interaction connector to GPIO/PMOD are gated while programming and emulation have entry sequences. -
Page 6: Analog I/O
ForgeFPGA Socket Adapter #1 Analog I/O Analog I/O pins can be used to transfer or read analog signals. Analog pins work only in combination with the ™ ForgeFPGA Advanced Development Board. GPIO/PMOD C “J3” Pin # AIO # AIO2 AIO4 AIO6 AIO7 VDD IO... -
Page 7: Spi Interface Between Fpga, Flash Memory, Interaction And Pmod Connectors
ForgeFPGA Socket Adapter #1 SPI Interface between FPGA, Flash Memory, Interaction and PMOD Connectors Figure 6 shows the SPI flash interface connection across Output connectors, ForgeFPGA IC and Interaction connectors. Flash Memory Switch Interaction HIGH PRIORITY Connector FPGA PIN1-PIN24 Socket Load from SPI Flash Jumper... -
Page 8: Working With Forgefpga Products
ForgeFPGA Socket Adapter #1 Figure 8. External Power Connector Pinout 2. Working with ForgeFPGA Products To start working with ForgeFPGA products which using the Socket Adapter, user can choose two dif f erent methodologies: with ForgeFPGA Dev. Board or in stand alone mode, where FPGA conf ig will be downloaded f rom onboard SPI f lash. -
Page 9: Figure 9. Development Kit
ForgeFPGA Socket Adapter #1 External Power Connector USB Type-C Connector Button for Interaction user macros Connector Figure 9. Development Kit If all the connections are correct, then the red LED (PWR) will automatically be enabled. Af ter selecting “ForgeFPGA Advanced Development Board” in Go Configure “Debug” tab , blue LED will blink several times and “HW-FW”... -
Page 10: Schematic Diagram
ForgeFPGA Socket Adapter #1 3. Schematic Diagram PWR_VDDIO I_IO 10uF 0.1uF C0805 C0402 PWR_VDDC I_CORE 10uF 0.1uF C0805 C0402 030SQ025J6618G GPIO10 GPIO5 GPIO11 GPIO4 GPIO12 GPIO3 STQFN-24 GPIO13 GPIO2 SOCKET GPIO14 GPIO1 GPIO15 GPIO0 VDDIO R0402 VDDIO R0402 +5V0_EXT +5V0_EXT 0.1uF R0402 C0402... - Page 11 ForgeFPGA Socket Adapter #1 GPIO0_PMOD GPIO1_PMOD GPIO2_PMOD GPIO3_PMOD GPIO4_PMOD GPIO5_PMOD GPIO6_PMOD GPIO7 PWR_VDDIO PWR_VDDIO PMOD A Header PWR_VDDIO PWR_VDDIO PMOD A GPIO8 GPIO9 GPIO10 GPIO11 GPIO12 GPIO13_PMOD GPIO14_PMOD GPIO15_PMOD PWR_VDDIO PWR_VDDIO PMOD B Header PWR_VDDIO PWR_VDDIO PMOD B GPIO16 GPIO17 GPIO18 EN_PMOD PWR_PMOD...
- Page 12 ForgeFPGA Socket Adapter #1 1.65V-3.6V PWR_VDDIO 0.1uF C0402 PWR_VDDIO PWR_VDDIO SOIC-8 Package, 208mil R0402 CLK_M HOLD SDI_M HOLD/RESET SDO_M CS_M AT25FF041A-SHN-T UDFN-8 Package, 5x6mm CLK_M PWR_VDDIO HOLD SDI_M RESET 0.1uF SDO_M CS_M C0402 UDFN-8 Package, 2x3mm CLK_M PWR_VDDIO HOLD SDI_M HOLD/RESET 0.1uF SDO_M...
- Page 13 ForgeFPGA Socket Adapter #1 +5V0_EXT PWR_VDDC PWR_VDDIO +3V3_EXT SCL1 SDA1 CS_M TP_21 SDO_M TP_22 SDI_M TP_23 CLK_M TP_24 TP_25 FPGA Prog TP_26 PMOD Disconn AIO_2 AIO_18 GPIO7 TP_27 GPIO8 TP_28 GPIO0 TP_9 GPIO9 TP_29 GPIO1 TP_10 GPIO10 TP_30 GPIO2 TP_11 GPIO11 TP_31 GPIO3...
-
Page 14: Bill Of Materials
ForgeFPGA Socket Adapter #1 4. Bill Of Materials Designator Manufacturer Part Number Manufacturer Quantity BP1, BP2, BP3, BP4, BP5 SJ61A6 C1-C7, C9, C11, C12 GCM155R71C104KA55D Murata C8, C10 GRM21BR61C106KE15L Murata J3, J4, J6, J7 67996-212HLF Amphenol ICC / FCI J5, J8, J9 PPPC062LJBN-RC Sullins J10, J11, J19, J20... -
Page 15: Ordering Information
ForgeFPGA Socket Adapter #1 5. Ordering Information Part Number Description SLG47910V-SKT ForgeFPGA Socket Adapter #1 R12UZ0154EU0100 Rev.1.00 Page 15 May 10, 2024... -
Page 16: Revision History
ForgeFPGA Socket Adapter #1 6. Revision History Revision Date Description 1.00 May 10, 2024 Initial release. R12UZ0154EU0100 Rev.1.00 Page 16 May 10, 2024...
