Renesas RTE7701412CBF484T000R User Manual

RTE7701412CBF484T000R
Exchange Adapter for Connecting RH850/D1x Series
in 484-pin 1.0-mm-pitch BGA
1. Outline
The RTE7701412CBF484T000R is an exchange adapter (EA) for connecting an
RTE7701412EPA00000R or RTE7701460EPA00000R emulator pod
(subsequently referred to as the pod) for the RH850/D1x to pad patterns
for a 484-pin 1.0-mm-pitch BGA (PRBG0484FF-A).
2. Package Components
Check to see if the RTE7701412CBF484T000R package has all the following
contents with reference to Contents of the Package included in the package after
purchasing this product.
(1) RTE7701412CBF484T000R exchange adapter
(2) Table of Toxic and Hazardous Substance and Elements 1 sh.
3. Specifications
Table 1 Specifications
Applicable package PRBG0484FF-A
(484-pin 1.0-mm-pitch BGA)
Insertion/removal 100 times guaranteed
iterations of connector
4. Usage (See Figure 2)
The RTE7701412CBF484T000R can be used for debugging and on-board
evaluation in common by mounting the TC on the target system.
(1) For debugging
Mount the TC on the pad pattern for the MCU on the target
system board. In addition, connect the RTE7701412CBF484T000R to the pod,
and then attach the RTE7701412CBF484T000R above the TC.
The height of the socket is adjustable by inserting the SA1 or SA2 between
the TC and RTE7701412CBF484T000R if this is desired.
Before using the SA1 or SA2, be sure to read the precautions on page 3.
(2) For on-board evaluation
The TC on the user system is used to attach the MA after it has been fitted
with an MCU that has flash ROM or a one-time PROM.
SA1: Space adapter (sold separately, product of Tokyo Eletech
Corporation)
Model Name: CSSOCKET484Z2627RE03
SA2: Space adapter (sold separately, product of Tokyo Eletech
Corporation)
Model Name: CSSOCKET484Z2627RE04
TC: Target connector (sold separately, product of Tokyo Eletech
Corporation)
Model name: BSSOCKET484Z2627RE21N
MA: Mounting adapter (sold separately, product of Tokyo Eletech
Corporation)
Model name: LSPACK484Z2627RE01
R20UT2991EJ0110 Rev. 1.10
Nov. 30, 2016
1 pc.

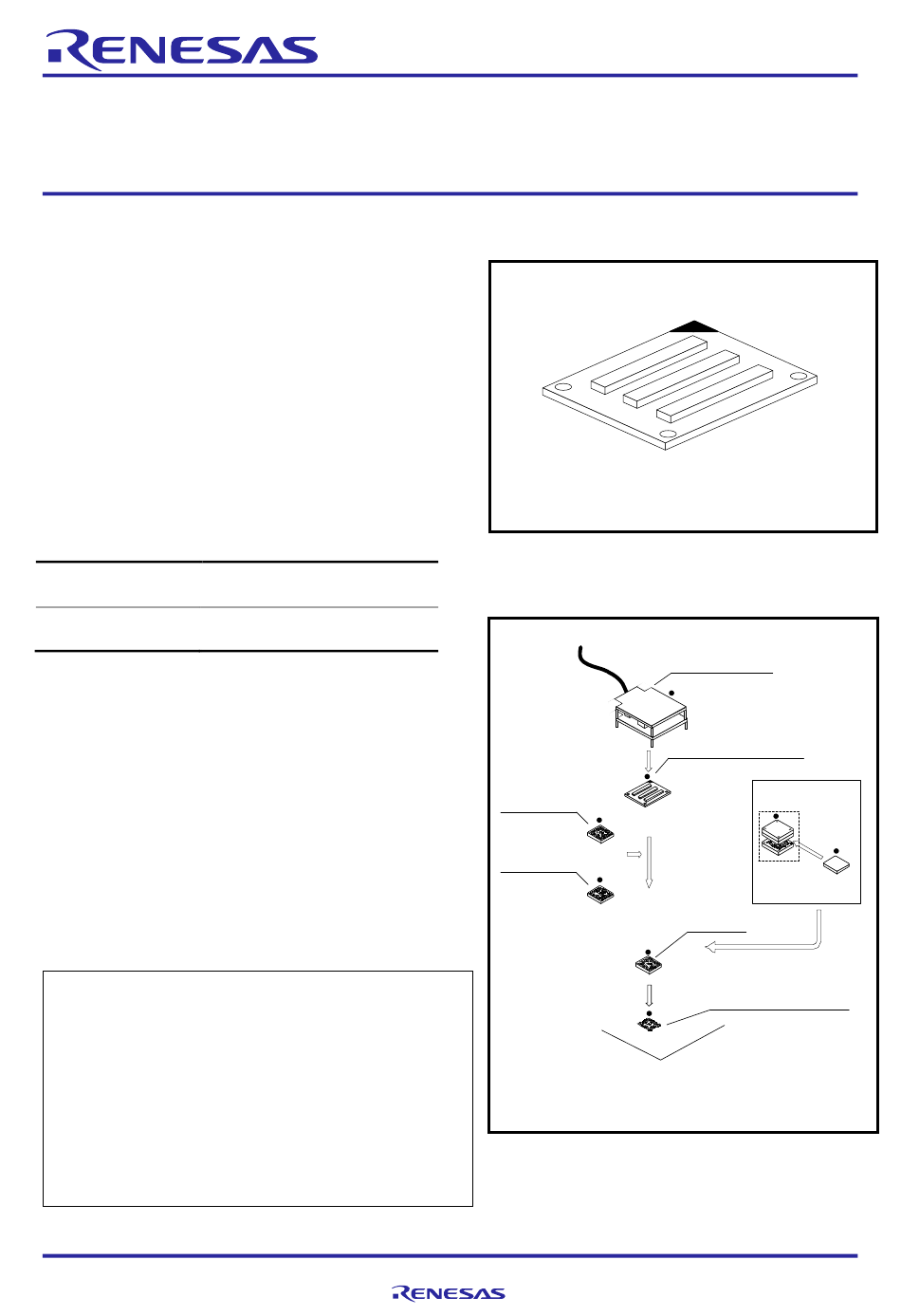

Figure 1 External View of the RTE7701412CBF484T000R
SA1:CSSOCKETxxRE03
SA2:CSSOCKETxxRE04
● In the figure indicates an example of the location of the pin that governs
alignment. Be sure to align the pin one positions of the pad pattern on the board
and other parts.
Figure 2 Usage of the RTE7701412CBF484T000R
User's Manual
R20UT2991EJ0110
RTE7701412CBF484T000R exchange adapter
(1) For debugging
Pod (sold separately)
RTE7701412CBF484T000R
or
TC: BSSOCKET
484-pin 1.0-mm-pitch
(PRBG0484FF-A) pad patterns
Rev. 1.10
Nov. 30, 2016
(2) For on-board evaluation
MA: LSPACK
Flash memory MCU and etc.
(MA: Inserted into the
LSPACK)
Page 1 of 5
