RTE7701422CFK144T000R
Exchange Adapter for Connecting RH850/D1x Series
in 144-pin 0.5-mm-pitch LFQFP
1. Outline
The RTE7701422CFK144T000R is an exchange adapter (EA) for
connecting the RTE7701460EPA00000R emulator pod for the RH850/D1x
(subsequently referred to as the pod) to pad patterns for a 144-pin 0.5-mm-pitch
LFQFP (PLQP0144KA-A).
2. Package Components
Check to see if the RTE7701422CFK144T000R package has all the following
contents with reference to Contents of the Package included in the package after
purchasing this product.
(1)
RTE7701422CFK144T000R exchange adapter
(2)
Table of Toxic and Hazardous Substance and Elements 1 sh.
3. Specifications
Table 1 Specifications
Applicable package
PLQP0144KA-A
(144-pin 0.5-mm-pitch LFQFP)
Insertion/removal
100 times guaranteed
iterations of connector
4. Usage (See Figure 2)
The RTE7701422CFK144T000R can be used for debugging and on-board
evaluation in common by mounting the TC on the target system.
(1) For debugging
Mount the TC on the pad pattern for the MCU on the target
system board and attach the EC above it. In addition,
connect the RTE7701422CFK144T000R to the pod, and then attach
the RTE7701422CFK144T000R above the EC.
The height of the socket is adjustable by inserting the SA between the EC
and RTE7701422CFK144T000R if this is desired.
Before using the EC, be sure to read the precautions on page 4.
(2) For on-board evaluation
Mount the TC, an MCU with on-chip flash memory or one-time PROM,
and the MA, in that order, on the target system.
SA: Space adapter (sold separately, product of Renesas Electronics
Corporation)
Model Name: QB-144GJ-YS-01T
EC: Emulator connector (sold separately, product of Renesas Electronics
Corporation)
Model name: QB-144GJ-YQ-01T
*The QB-144GJ-YQ-01T package includes the YQ guides.
TC: Target connector (sold separately, product of Renesas Electronics
Corporation)
Model name: QB-144GJ-NQ-01T
MA: Mounting adapter (sold separately, product of Renesas Electronics
Corporation)
Model name: QB-144GJ-HQ-01T
R20UT3901EJ0100 Rev. 1.00
Nov. 25, 2016
1 pc.
RTE7701422CFK144T000R exchange adapter

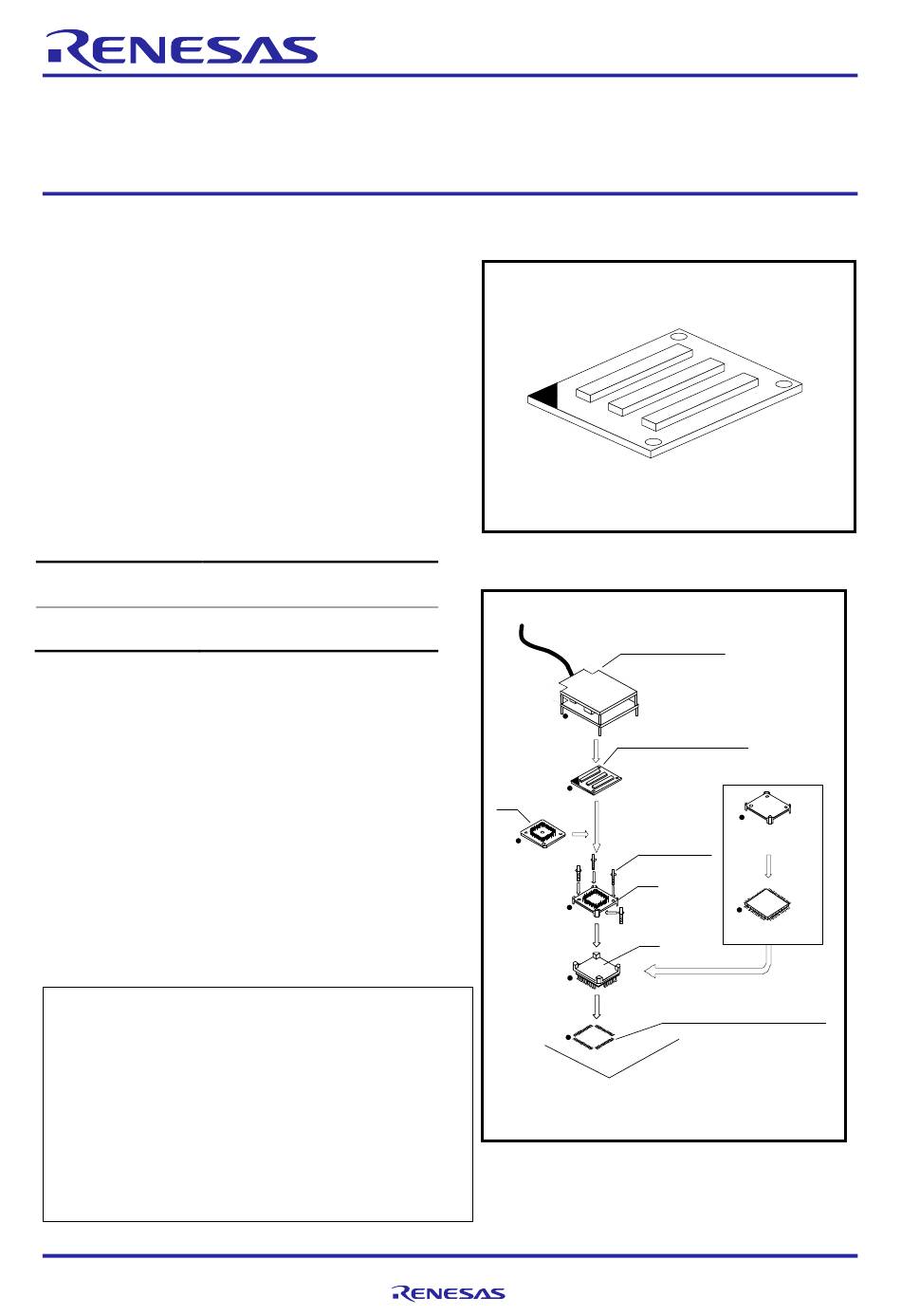

Figure 1 External View of the RTE7701422CFK144T000R
(1) For debugging
SA
● in the figure indicates an example of the location of the pin that
governs alignment. Be sure to align the pin one positions of the pad
pattern on the board and the other parts.
Figure 2 Usage of the RTE7701422CFK144T000R
User's Manual
R20UT3901EJ0100
Rev. 1.00
Nov. 25, 2016
Pod (sold separately)
RTE7701422CFK144T000R
(2) For on-board evaluation
MA
YQ guides (four)
EC
TC
Flash memory MCU and etc.
144-pin 0.5-mm-pitch
(PLQP0144KA-A) pad patterns
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for Renesas RTE7701422CFK144T000R
Summary of Contents for Renesas RTE7701422CFK144T000R
- Page 1 (subsequently referred to as the pod) to pad patterns for a 144-pin 0.5-mm-pitch LFQFP (PLQP0144KA-A). 2. Package Components Check to see if the RTE7701422CFK144T000R package has all the following contents with reference to Contents of the Package included in the package after purchasing this product.
- Page 2 RTE7701422CFK144T000R User’s Manual 5. Connection Procedure (See Figure 3) Pod (sold separately) The procedure for connecting the RTE7701422CFK144T000R is shown below. (1) Mount the TC on the target system. RTE7701422CFK144T000R Thinly apply a two-part curing-type epoxy-based adhesive (with curing taking at least thirty minutes) to the tips of the four protrusions from the bottom...
- Page 3 RTE7701422CFK144T000R User’s Manual 6. Drawing of the Socket Assembly, Drawing with Dimensions, and Pad Pattern for Reference RTE7701422CFK144T000R 55.0 Unit [mm] Figure 4 Drawing of the Socket Assembly 40.0 MADE IN JAPAN 13.0 13.0 RTE7701422CFK144T000R 0.5×35 = 17.5 4.85 18.0* *This dimension is increased by 3.2 mm if QB-144GJ-YS-01T is used to adjust the height of the socket.
- Page 4 As part of our commitment to environmental responsibility Renesas also offers to take back the equipment and has implemented a Tools Product Recycling Program for customers in Europe. This allows you to return equipment to Renesas for disposal through our approved Producer Compliance Scheme.
- Page 5 10. It is the responsibility of the buyer or distributor of Renesas Electronics products, who distributes, disposes of, or otherwise places the product with a third party, to notify such third party in advance of the contents and conditions set forth in this document, Renesas Electronics assumes no responsibility for any losses incurred by you or third parties as a result of unauthorized use of Renesas Electronics products.
