Hardware Installation and Reference Guide
Front Panel

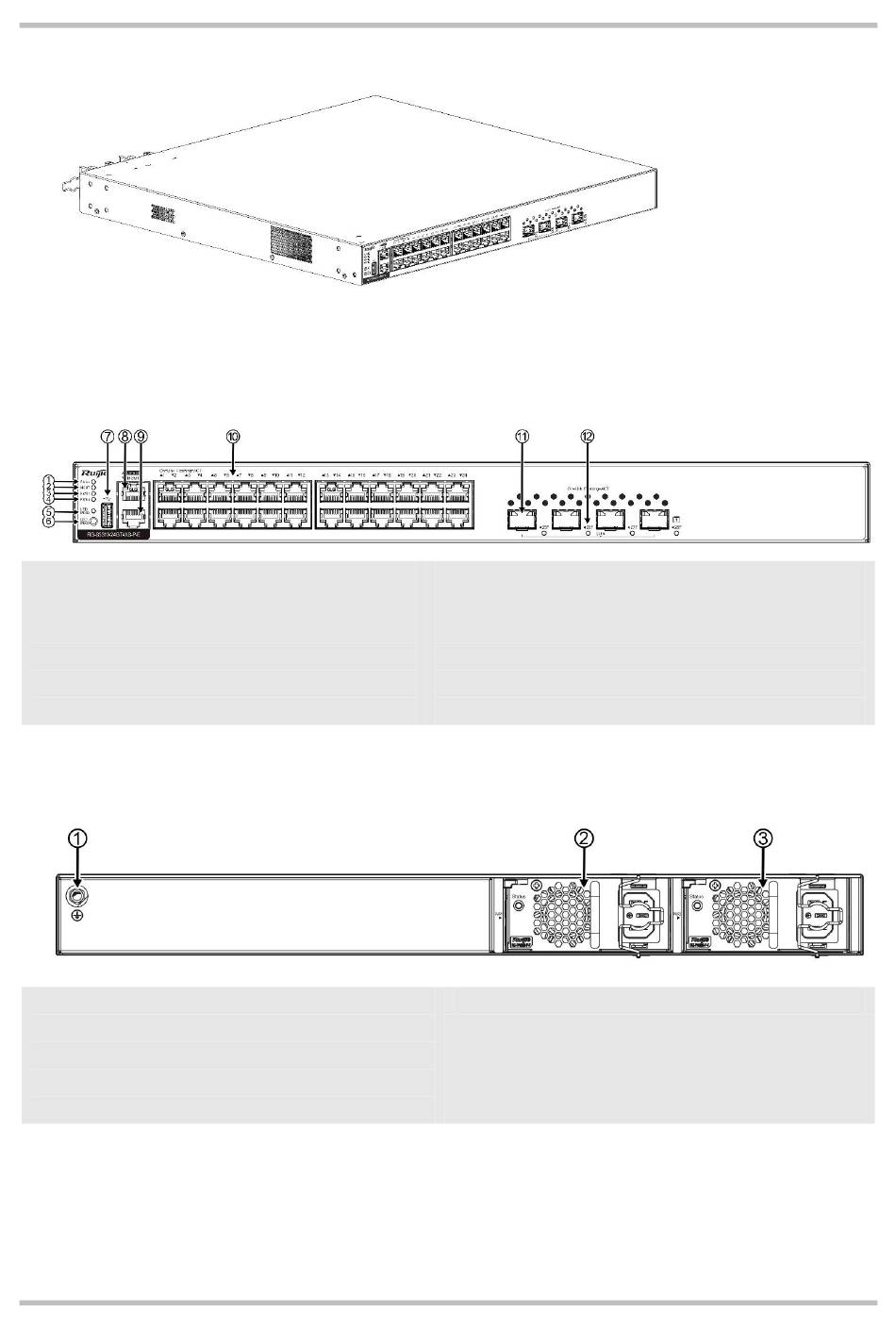

Figure 1-26 Front Panel of RG-S5310-24GT4XS-P-E
1. System Status LED
2. Management Port LED
3. PWR1 Status LED
4. PWR2 Status LED
5. LED Mode Indicator
6. LED Mode Button
Back Panel
Figure 1-27 Back Panel of RG-S5310-24GT4XS-P-E
1. Grounding Stud
2. Power Supply Module Slot 1 (A filler panel is required if the
slot is vacant.)
3. Power Supply Module Slot 2 (A filler panel is required if the
slot is vacant.)
Power Supply
The RG-S5310-24GT4XS-P-E switch supports dual power supply modules. See Chapter 1.13 for details about the power supply modules.
The switch can be powered on by either one power supply module or dual power supply modules. If both power supply modules are
used, the switch works in the power redundancy mode.
7. USB Port
8. Console Port
9. Management Port
10. 10/100/1000Base-T Ethernet Port
11. 10GE SFP+ Port
12. Port LED
25
Product Overview
