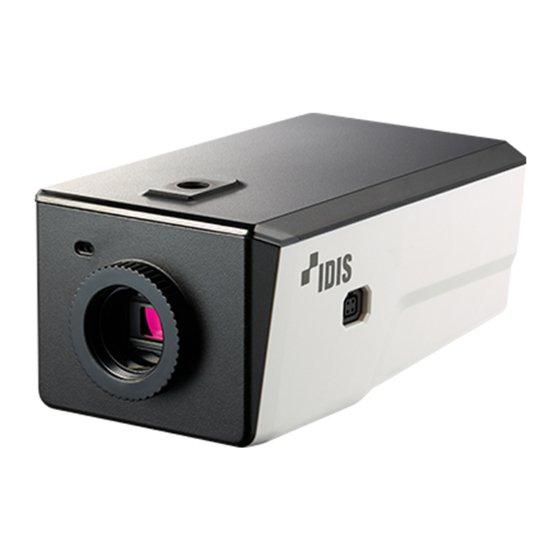

- Page 1 DC-B Series Installation Manual DC-B6206XL DC-B6206XL-A Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
• Easy network access via UPnP (Universal Plug and ethernet. You can use the IDIS Discovery program to Play) function and embedded mDNS (Multicast DNS) change network camera settings or the IDIS Solution... -
Page 7: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera C-Mount Ring Terminal Block Protective Cover (attaches to camera) Quick Guide... -
Page 8: Overview
If using a DC type or P type auto iris lens, connect the Built-in Microphone auto iris jack. Image Sensor • Built-in Microphone DC-B6206XL model only Receives audio. Top, Bottom • Image Sensor Converts optical data into electronic signals. If the lens is not attached to the camera, use the protective cover to cover up the image sensor. -
Page 9: Back
For more information on network connection setup, refer to the IDIS Discovery operation manual. • Power LED SD Memory Card Slot Indicates the system's operating status. For more ABF(Auto Back Focus) information, refer to the LED Status Indications. - Page 10 IDIS Discovery program from a remote • Organize the power cable so that it will not cause location. A factory reset will reboot the system. For more...
-
Page 11: Installation
Part 1 – Introduction I/O Connector Power Connector Alarm In DC12V + Grounding Power connection (Check + and - Alarm markings) DC12V - Alarm Out (Active Low - Open Collector Output) LED Status Indications RS485 Connector LED Status Description Power not connected Power LED Flashing... -
Page 12: Manual Iris Lens
Part 1 – Introduction Remove the protective cover from the camera. • Check the wall or ceiling to see if it needs to be reinforced. The camera may fall off if the wall or ceiling is not strong enough to support its weight. Turn the lens in clockwise direction, mount it on to the camera, and connect the auto iris jack to the •... -
Page 13: C-Mount Lens
Part 1 – Introduction 39mm C-Mount Lens Side 78mm Remove the protective cover from the camera. Turn the mount ring in clockwise direction and mount the ring on to the camera. Turn the C-mount lens in clockwise direction and mount it on to the C-mount ring. Dimensions 75.9mm 1/4-20 UNC... -
Page 14: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Alarm Out Network Camera... -
Page 15: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 16: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 17: Specifications
Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2" CMOS Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Optional (CS/C-Mount) Iris Control P-Iris, Manual iris, DC type auto iris (megapixel recommended) Min. - Page 18 Part 3 - Appendix Audio In/Out DC-B6206XL model only Line-in 1ea / Line-out 1ea / Internal Mic 1ea Alarm In 2 TTL, NC/NO Programmable, 4.3V(NC) or 0.3V(NO) threshold, 5V DC Alarm Out 2 TTL open collectors, Max. load: 30mA, Max. voltage: 5VDC...
- Page 20 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
