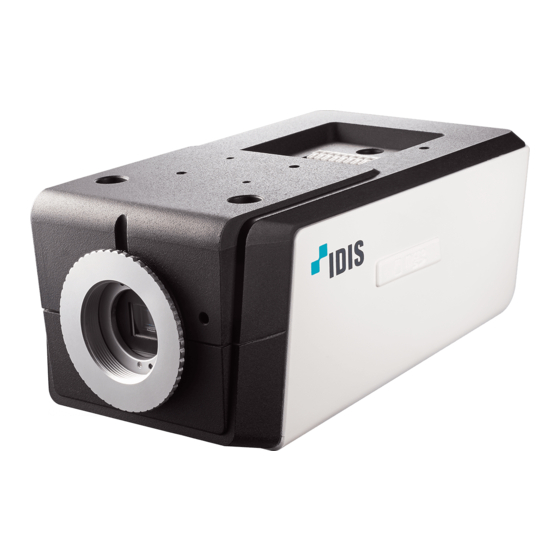

Box camera
Hide thumbs Also See for DC-B3303X:

Advertisement

Quick Links

DC-B
Series
Installation Manual
DC-B3303X
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-B3303X and is the answer not in the manual?

Questions and answers

Summary of Contents for Idis DC-B3303X

  • Page 1 DC-B Series Installation Manual DC-B3303X Powered by...
  • Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.
  • Page 5: Table Of Contents

    Table of Contents Part 1 – Introduction ......... 6 Product Features .
  • Page 6: Part 1 - Introduction

    You • Easy network access via UPnP (Universal Plug and can use the IDIS Discovery program to change network Play) function and embedded mDNS (Multicast DNS) camera settings or the IDIS Solution Suite Compact protocol program to manage multiple network cameras.
  • Page 7: Accessories

    Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. External appearances and colors of the accessories may vary depending on the model. Network Camera C-Mount Ring Installation Parts Protective Cover (attaches to camera) Quick Guide...
  • Page 8: Overview

    Part 1 – Introduction Overview Side Product color and design may vary depending on the model. Front Protective Cover C-Mount Ring Back Focus Adjustment Ring Mount Bracket SD Memory Card Slot Built-in Microphone • Protective Cover If the lens is not attached to the camera, use the Image Sensor protective cover to protect the image sensor.
  • Page 9: Top

    Part 1 – Introduction • Mount Bracket This bracket can be installed on either top or bottom of the camera. Use 1/4–20 UNC (20-thread), 2.5mm +/- 0.2mm (ISO standard) or 0.197 (ASA standard) screws to attach the mount. • SD Memory Card Slot Pull on the connection cover and then insert a microSD memory card into the slot.
  • Page 10 Part 1 – Introduction • Alarm I/O • Factory Reset Switch - Out: It is the BJT (Bipolar Junction Transistor) - Restores the camera's default factory settings. For open collector output. If the voltage and current more information, refer to the Factory Reset. exceed the specification limit (Max load: 30mA, When inserting an , audio in/out, or RS485 connector, Max Voltage: 5VDC), the product could be...
  • Page 11 It's also possible to do a factory reset by pressing and releasing the reset switch while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more...
  • Page 12: Back

    For more information on network connection setup, refer to the IDIS Discovery operation manual. • Network LED Indicates the network connection status. For more Auto Iris Lens Connector information, refer to the LED Status Indications.
  • Page 13: Installation

    Part 1 – Introduction Manual Iris Lens Power Connector Remove the protective cover from the camera. Turn the lens in clockwise direction and mount it on the camera. Rotate the lens' iris ring to open up the iris and then DC12V + Power connection (Check + and - adjust accordingly.
  • Page 14: Cs-Mount Lens

    Part 1 – Introduction Remove the protective cover from the camera. C-Mount Lens Turn the lens in clockwise direction, mount it on to the camera, and connect the auto iris jack to the auto iris lens connector. The auto iris jack must be at least 20cm long in order to connect it to the camera.
  • Page 15: Part 2 - Camera Connection

    Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Power Alarm Out Sensor In Network Camera Monitor Out...
  • Page 16: With Non Directip™ Nvr-Based Layout

    Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact.
  • Page 17: Part 3 - Appendix

    ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below.
  • Page 18: Specifications

    Part 3 - Appendix Specifications These product specifications may change without prior notice. Video Image Sensor 1/2.8" CMOS Max. Resolution 2048 x 1536 Scanning Mode Progressive Scan Lens type Optional (CS/C-Mount) Iris Control P-Iris, Manual iris, DC type auto iris (megapixel recommended) Min.
  • Page 19 Part 3 - Appendix Audio In/Out Line-in 1ea / Line-out 1ea / Internal Mic 1ea Alarm In 1 TTL, NC/NO Programmable, 4.3V(NC) or 0.3V(NO) threshold, 5V DC Alarm Out 1 TTL open collector, Max. load: 30mA, Max. voltage: 5VDC Auto Iris Out 4-pin mini din jack (standard connection) General Operating Temperature...
  • Page 20 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
