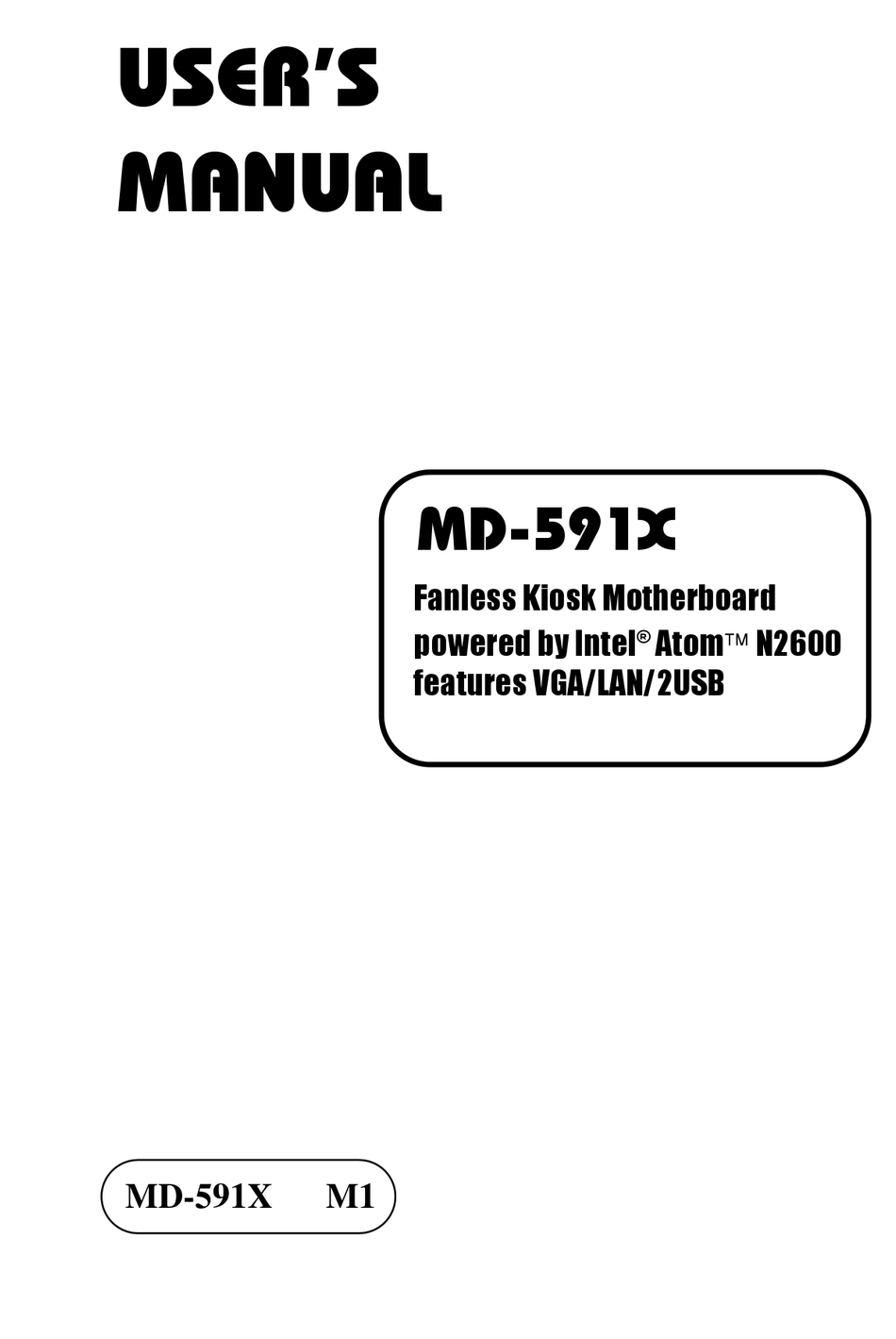

USER'S
MANUAL
MD-591X
MD-591X
Fanless Kiosk Motherboard
powered by Intel
features VGA/LAN/2USB
M1
®
Atom™ N2600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD-591X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for protech MD-591X

Summary of Contents for protech MD-591X

  • Page 1 USER’S MANUAL MD-591X Fanless Kiosk Motherboard powered by Intel ® Atom™ N2600 features VGA/LAN/2USB MD-591X...
  • Page 2 MD-591X Kiosk Motherboard ® ™ ™ ™ ™ with Intel Atom N2600 COPYRIGHT NOTICE & TRADEMARK All trademarks and registered trademarks mentioned herein are the property of their respective owners. This manual is copyrighted in July 2014. You may not reproduce or transmit in any form or by any means, electronic, or mechanical, including photocopying and recording.
  • Page 3 FCC NOTICE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: Table Of Contents

    Contents TABLE OF CONTENTS CHAPTER 1 INTRODUCTION About This Manual…............System Specification…............1-3 Safety Precautions…............. CHAPTER 2 HARDWARE CONFIGURATION Jumper & Connector Quick Reference Table…....Component Locations….…........... How to Set Jumpers…............Touch Panel Connector…...………………......LAN Port…………………………………………………… USB Port…………………………………………………… Speaker Connector…………………………………………. LVDS Connector……………………………………………...
  • Page 5 Contents Advanced…................Chipset…................4-22 Boot……................4-28 Security…................4-29 Save & Exit…............... 4-30 Event Logs…………………………………………………. 4-32 CHAPTER 5 EC FIRMWARE SPECIFICATIONS EC Firmware Standards…............. Introduction…............... Requested Items…..............ACPI Embedded Controller (EC)......... SMBus Management…............5-14 System Management (SMC)…..........5-15 LCD Backlight Brightness Control........5-20 GPIO Control…..............

  • Page 6: Chapter 1 Introduction

    CHAPTER INTRODUCTION This chapter gives you the information for MD-591X. It also outlines the system specifications. Sections included: About This Manual System Specifications Safety Precautions Experienced users can jump to chapter 2 on page 2-1 for a quick start. Page:1-1...

  • Page 7: About This Manual

    Chapter 1 Introduction 1-1. ABOUT THIS MANUAL ® Thank you for purchasing our MD-591X Kiosk Motherboard with Intel Atom™ N2600 processor and enhanced with VGA, LAN, & two USB ports, which is fully PC/AT compatible. MD-591X provides faster processing speed, greater expandability and can handle more tasks than before.

  • Page 8: System Specification

    1 x Mini-PCIe, reserved for WLAN Display LCD Type 10.4” XGA Resolution 1024 x 768 Touch Panel 4-wire resistive touch (Glass = 0.7mm) Brightness 150 cd/m Backlight Viewing Angle -45 ~ 45˚ (H) -20 ~ 40˚ (V) Page: 1-3 ′ MD-591X USER S MANUAL...
  • Page 9 Chapter 1 Introduction Environment Temperature Operating: 0 ~ 60°C (32 ~ 140°F) Non-operating: 10 ~ 60°C (14 ~ 140°F) Humidity Operating: 20 ~ 90% RH Non-operating: 10~90% RH Page: 1-4 ′ MD-591X USER S MANUAL...

  • Page 10: Safety Precautions

    Always disconnect power when the system is not in use. Disconnect power when you change any hardware devices. For instance, when you connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system. Page: 1-5 ′ MD-591X USER S MANUAL...

  • Page 11: Chapter 2 Hardware Configuration

    CHAPTER HARDWARE CONFIGURATION ** QUICK START ** Helpful information describes the jumper & connector settings, and component locations. Sections included: Jumper & Connector Quick Reference Table Component Locations Configuration and Jumper settings Connector’s Pin Assignments Page 2-1...

  • Page 12: Jumper & Connector Quick Reference Table

    2-1. JUMPER & CONNECTOR QUICK REFERENCE TABLE JUMPER/CONNECTOR NAME Touch Panel Connector TOUCH1 LAN Port LAN1 USB Port USB1 Speaker Connector SPK1 LVDS Connector LVDS1 LVDS Backlight Connector Power Supply Connector CRADLE1 SATA & SATA Power Connector SATA1, JPWR_5V Page: 2-2 MD-591X USER ′ S MANUAL...

  • Page 13: Component Locations

    Chapter 2 Hardware Configuration 2-2. COMPONENT LOCATIONS Battery M_PCIE1 Intel ® NM10 DIMM1 Intel ® ™ Atom N2600 MD-591X Connector and Component locations - Top Page: 2-3 MD-591X USER ′ S MANUAL...
  • Page 14 Chapter 2 Hardware Configuration SATA1 USB1 LAN1 JPWR_5V SPK1 TOUCH1 CRADLE1 LVDS1 JCFAST1 MD-591X Connector, Jumper and Component locations - Bottom Page: 2-4 MD-591X USER ′ S MANUAL...

  • Page 15: How To Set Jumpers

    PIN1 & PIN2 to create one setting by shorting. You can either connect PIN2 & PIN3 to create another setting. The same jumper diagrams are applied all through this manual. The figure below shows what the manual diagrams look and what they represent. Page: 2-5 MD-591X USER ′ S MANUAL...
  • Page 16 Jumper Block looks like this JUMPER SETTINGS 2 pin Jumper close(enabled) Looks like this 3 pin Jumper 2-3 pin close(enabled) Looks like this Jumper Block 1-2 pin close(enabled) Looks like this Page: 2-6 MD-591X USER ′ S MANUAL...

  • Page 17: Touch Panel Connector

    Right Side LED Green Color On 10/100 LAN Speed Indicator Orange Color On Giga LAN Speed Indicator No LAN Switch/Hub Connected Left Side LED Yellow Color Blinking LAN Message Active No LAN Message Active Page: 2-7 MD-591X USER ′ S MANUAL...

  • Page 18: Usb Port

    Chapter 2 Hardware Configuration 2-6. USB PORT USB1: Stacked USB Ports ASSIGNMENT ASSIGNMENT USBV0 USBC0N USBC0P USB1 2-7. SPEAKER CONNECTOR SPK1: Speaker Connector ASSIGNMENT VO1_SPK VO2_SPK SPK1 Page: 2-8 MD-591X USER ′ S MANUAL...

  • Page 19: Lvds Connector

    Chapter 2 Hardware Configuration 2-8. LVDS CONNECTOR LVDS1 LVDS1: LVDS Connector ASSIGNMENT ASSIGNMENT LVDS_VCC LVDS_TX2_DP_C LVDS_VCC LVDS_CLK_DN LVDS_TX0_DN_C LVDS_CLK_DP LVDS_TX0_DP_C LVDS_TX1_DN_C LVDS_TX1_DP_C LVDS_TX2_DN_C 2-9. LVDS BACKLIGHT CONNECTOR CN1: LVDS Backlight Connector ASSIGNMENT ASSIGNMENT Page: 2-9 MD-591X USER ′ S MANUAL...

  • Page 20: Power Supply

    CRADLE1: 16V Power Supply Connector ASSIGNMENT ASSIGNMENT CRADLE1_PIN1 MATEJ CRADLE1 DETJ USBN3_L USBP3_L 2-11. SATA & SATA POWER CONNECTOR SATA1: SATA Connector ASSIGNMENT ASSIGNMENT SATA0_RX_N_C SATA1/ SATA0_TX_P_C SATA0_RX_P_C SATA0_TX_N_C JPWR_5V: SATA Power Connector ASSIGNMENT VCC5 JPWR_5V Page: 2-10 MD-591X USER ′ S MANUAL...

  • Page 21: Chapter 3 Software Utilities

    CHAPTER SOFTWARE UTILITIES This chapter comprises the detailed information of VGA driver, LAN driver, and Sound driver. Sections included: Introduction. ® Intel Chipset Software Installation Utility VGA Driver Utility LAN Driver Utility Sound Driver Utility Touch Driver Utility Wireless LAN Driver Utility Page: 3-1...

  • Page 22: Introduction

    Chapter 3 Software Utilities 3-1. INTRODUCTION Enclosed with our MD-591X package are our driver utilities, which come in a format of CD ROM. Refer to the following table for driver locations: FILENAME (Assume that CD ROM drive is D:) PURPOSE ®...

  • Page 23: Intelc Hipset Software Installation Utility

    OS installation. Please follow the steps below: Insert the driver disk into a CD ROM device. Under Windows system, go to the directory where the Utility driver is located. Run the application with administrative privileges. Page:3-3 ′ MD-591X USER S MANUAL...

  • Page 24: Vga Driver Utility

    Chapter 3 Software Utilities 3-3. VGA DRIVER UTILITY 3-3-1. Introduction The VGA interface embedded with our MD-591X can support a wide range of display. You can display DVI simultaneously with the same mode. Win 7 Series - 32 bit 3-3-2. Installation of VGA Driver To install the VGA driver, simply follow the following steps: Insert the driver disk into a CD ROM device.

  • Page 25: Lan Driver Utility

    Chapter 3 Software Utilities 3-4. LAN DRIVER UTILITY 3-4-1. Introduction MD-591X is enhanced with LAN function that can support various network adapters. Installation programs for LAN drivers are listed as follows: Win 7 Series - 32 bit For more details on Installation procedure, please refer to Readme.txt file found on LAN Driver Utility.

  • Page 26: Sound Driver Utility

    Run the application with administrative privileges.. Follow the instructions on the screen to complete the installation. Once the installation is completed, shut down the system and restart in order for the changes to take effect. Page:3-6 ′ MD-591X USER S MANUAL...

  • Page 27: Touch Driver Utility

    Run the application with administrative privileges.. Follow the instructions on the screen to complete the installation. Once the installation is completed, shut down the system and restart in order for the changes to take effect. Page:3-7 ′ MD-591X USER S MANUAL...

  • Page 28: Chapter 4 Bios Setup

    CHAPTER BIOS SETUP This chapter shows how to set up the BIOS. Sections included: Introduction Entering Setup Main Advanced Chipset Boot Security Save & Exit Page: 4-1...

  • Page 29: Introduction

    Chapter 4 BIOS Setup 4-1. INTRODUCTION The board MD-591X uses an AMI Aptio BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated. The SPI Flash contains the BIOS Setup program, Power-on Self-Test (POST), the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.
  • Page 30 The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the <Del> or <ESC> key after the POST memory test begins and before the operating system boot begins. The settings are shown below. Page: 4-3 ′ MD-591X USER S MANUAL...

  • Page 31: Entering Setup

    Setup program. In a moment, the main menu of the Aptio Setup Utility will appear on the screen: Page: 4-4 ′ MD-591X USER S MANUAL...
  • Page 32 You may move the cursor by up/down keys to highlight the individual menu items. As you highlight each item, a brief description of the highlighted selection will appear at the bottom of the screen. Page: 4-5 ′ MD-591X USER S MANUAL...

  • Page 33: Main

    No changeable options Displays the current memory installed amount and type. System Date Month, day, year Specifies the current date. System Time Hour, minute, second Specifies the current time. Access Level Administrator Access level status Page: 4-6 ′ MD-591X USER S MANUAL...

  • Page 34: Advanced

    Enable or Disable Beep IDE Configuration Enter IDE Device Configuration USB Configuration Enter USB Configuration Parameters IT8528 Super IO Enter System Super IO Chip Parameters. Configuration IT8528 HW Monitor Enter Monitor hardware status. Page: 4-7 ′ MD-591X USER S MANUAL...
  • Page 35 S3 allows the platform to enter Sleep (also known as Standby or Suspend to RAM) mode. Force off by Power Button 3,5,10 Delay N seconds: Shutdown after you press button for N seconds. Page: 4-8 ′ MD-591X USER S MANUAL...
  • Page 36 Delay N seconds: Power ON By Power Button after press button continue N seconds. S3 Video Repost -Disabled Enable or Disable S3 Video -Enabled Repost. Note: Options marked in blue are set by default. Page: 4-9 ′ MD-591X USER S MANUAL...
  • Page 37 Select 0-23 for example enter 3 for 3am and 15 for 3pm Wake up 0~59 0-59 minute minute Wake up 0~59 0-59 second second Note: Options marked in blue are set by default. Page: 4-10 ′ MD-591X USER S MANUAL...
  • Page 38 Chapter 4 BIOS Setup 4-4-3. EC Version EC version screen BIOS Setting Options Description/Purpose EC version Display only EC version Page: 4-11 ′ MD-591X USER S MANUAL...
  • Page 39 System Bus No changeable options Displays System Bus speed Speed Ratio Status No changeable options Displays ratio status Actual Ratio No changeable options Displays actual ratio Processor No changeable options Displays Processor Stepping Stepping Page: 4-12 ′ MD-591X USER S MANUAL...
  • Page 40 Hyper-Threading No changeable options Reports if Intel Hyper-Threading Technology is supported by processor. Hyper-threading -Disabled When disabled, only one thread per active core will operate. -Enabled Note: Options marked in blue are set by default. Page: 4-13 ′ MD-591X USER S MANUAL...
  • Page 41 Chapter 4 BIOS Setup 4-4-5. Beep Controller Beep Controller screen BIOS Setting Options Description/Purpose Beep Controller - Disabled Enable or Disable Beep - Enabled Note: Options marked in blue are set by default. Page: 4-14 ′ MD-591X USER S MANUAL...
  • Page 42 Select Port1 AHCI Speed Limit Limit -Gen1 Rate -Gen2 Rate SATA Port 0 -Disabled Enable or Disable SATA Port -Enabled SATA Port 0 -Disabled Designates this port as Hot Pluggable. Hot Plug -Enabled Page: 4-15 ′ MD-591X USER S MANUAL...
  • Page 43 Description/Purpose SATA Port 1 -Disabled Enable or Disable SATA Port -Enabled SATA Port 1 -Disabled Designates this port as Hot Pluggable. Hot Plug -Enabled Note: Options marked in blue are set by default. Page: 4-16 ′ MD-591X USER S MANUAL...
  • Page 44 Enables support for legacy USB. Support - Enabled - Auto EHCI Hand- - Disabled When enabled it allows BIOS support control of the EHCI controller and the - Enabled OS handoff synchronization capatability. Page: 4-17 ′ MD-591X USER S MANUAL...
  • Page 45 530MB as floppies. Forced FDD -Forced FDD option can be used to force HDD -Hard Disk formatted drive to boot as FDD(e.g. -CD-ROM ZIP drive). Note: Options marked in blue are set by default. Page: 4-18 ′ MD-591X USER S MANUAL...
  • Page 46 IT8528 Super IO Configuration screen BIOS Setting Options Description/Purpose Super IO Chip No changeable options Displays the super IO chip model and its manufacturer. Serial Port 0 Enter Enter Serial Port 0 settings Configuration Page: 4-19 ′ MD-591X USER S MANUAL...
  • Page 47 - IO=3F8h; IRQ=4 request for the serial port - IO=3F8h; IRQ=3,4,5,6,7,10,11,12 0 if enabled. - IO=2F8h; IRQ=3,4,5,6,7,10,11,12 - IO=3E8h; IRQ=3,4,5,6,7,10,11,12 - IO=2E8h; IRQ=3,4,5,6,7,10,11,12 Note: Options marked in blue are set by default. Page: 4-20 ′ MD-591X USER S MANUAL...
  • Page 48 No changeable options Displays voltage level of the VINx in supply. VIN1 No changeable options Displays voltage level of the VINx in supply. VIN2 No changeable options Displays voltage level of the VINx in supply. Page: 4-21 ′ MD-591X USER S MANUAL...

  • Page 49: Chipset

    Chapter 4 BIOS Setup 4-5. CHIPSET Chipset screen BIOS Setting Options Description/Purpose Host Bridge Host Bridge Parameters South Bridge South Bridge Parameters Page: 4-22 ′ MD-591X USER S MANUAL...
  • Page 50 BIOS Setting Options Description/Purpose Intel IGD Enter Config Intel IGD Settings. Configuration Memory Show only Displays memory frequency Frequency Total Memory Show only Displays Dimm total size. DIMM#1 Show only Displays DIMM#1 size Page: 4-23 ′ MD-591X USER S MANUAL...
  • Page 51 Select LCD panel used by Internal Type - 640x480 LVDS Graphics Device by selecting the - 800x600 LVDS appropriate setup item. - 1024x768 LVDS - 1280x1024 LVDS - 1366x768 LVDS - 1224x600 LVDS - 1280x800 LVDS Page: 4-24 ′ MD-591X USER S MANUAL...
  • Page 52 No LVDS: VBIOS does not enable LVDS. LVDS: VBIOS enables LVDS driver by integrated encoder. Fixed Graphics - 128MB Configure Fixed Graphics Memory Memory size size - 256MB Note: Options marked in blue are set by default. Page: 4-25 ′ MD-591X USER S MANUAL...
  • Page 53 Controller Hub (TPT) Devices Select 30sec,60 sec, … 240sec to Watch Dog -Disabled Timer set watchdog timer. -30sec -60sec -90sec -120sec -150sec -180sec -210sec -240sec Note: Options marked in blue are set by default. Page: 4-26 ′ MD-591X USER S MANUAL...
  • Page 54 Chapter 4 BIOS Setup 4-5-2-1. TPT Devices TPT Devices screen BIOS Setting Options Description/Purpose USB Port Power - Disabled USB port power control function Control - Enabled Note: Options marked in blue are set by default. Page: 4-27 ′ MD-591X USER S MANUAL...

  • Page 55: Boot

    Boot Option #3 Hard Disk Boot Option #4 CD/DVD Boot Option #5 USB Hard Disk Boot Option #6 USB Key Boot Option #7 Network Note: Options marked in blue are set by default. Page: 4-28 ′ MD-591X USER S MANUAL...

  • Page 56: Security

    Boot is possible only if system runs -Enabled in User Mode. Secure Boot -Standard Secure Boot Mode selector.” Mode Standard’- fixed secure boot -Custom policy, ‘Custom’ – changeable Image Execution policy and Secure Boot Key databases. Page: 4-29 ′ MD-591X USER S MANUAL...

  • Page 57: Save & Exit

    Reset made in BIOS settings. Save Changes No changeable options Saves the changes done in BIOS settings so far. Discard Changes No changeable options Discards the changes done in BIOS settings so far. Page: 4-30 ′ MD-591X USER S MANUAL...
  • Page 58 No changeable options Saves the current values as user Defaults defaults. Restore User No changeable options Loads the user defaults for BIOS Defaults settings. Boot Override -[drive(s)] Forces to boot from selected [drive(s)]. Page: 4-31 ′ MD-591X USER S MANUAL...

  • Page 59: Event Logs

    BIOS Setting Options Description/Purpose Change Smbios Enter Press <Enter> to change the Smbios Event Log Event Log configuration. Settings View Smbios Enter Press <Enter> to view the Smbios Event Log Event Log records. Page: 4-32 ′ MD-591X USER S MANUAL...
  • Page 60 - Do Nothing Choose options for reactions to a full Full Smbios event log. - Erase Immediately Log System - Disabled Choose option to enable/disable Boot Event logging of System boot event. - Enabled Page: 4-33 ′ MD-591X USER S MANUAL...
  • Page 61 Status Codes as OEM Codes (if not - Enabled already converted to legacy). Covert OEM - Disabled Enable or Disable the converting of Codes EFI Status Codes to Standard Smbios - Enabled Types (Not all may be translated). Page: 4-34 ′ MD-591X USER S MANUAL...
  • Page 62 Chapter 4 BIOS Setup 4-9-2. View Smbios Event Log View Smbios Event Log screen Page: 4-35 ′ MD-591X USER S MANUAL...

  • Page 63: Chapter 5 Ec Firmware Specifications

    CHAPTER EC FIRMWARE SPECIFICATIONS This chapter gives you the information for EC firmware. It also outlines the system specifications. Sections included: Standards Introduction Requested Items ACPI Embedded Controller SMBus and System Management LCD Backlight Brightness Controller GPIO Control AD Converted Features Page:5-1...

  • Page 64: Ec Firmware Standards

    Advanced Configuration and Power Interface Embedded Controller Keyboard Controller System Management Controller System Control Interrupt System Management Interrupt Low Pin Count SPI Flash Memory Serial Interface Pulse Width Modulation RSOC Relative State Of Charge Battery Management Unit Page: 5-2 ′ MD-591X USER S MANUAL...

  • Page 65: Introduction

    制 ラ イ ト ド ラ イ 御 バ ッ ク ラ イ ト バ 輝 度 制 御 イ ン タ フ ェ ー ス 制 御 EC_SPKR SPI-Flash Buzzer Main Board Page: 5-3 ′ MD-591X USER S MANUAL...

  • Page 66: Requested Items

    Design and test of EC firmware based on the EC firmware specifications. Accommodate for these request items. REQUEST ITEM Memory map for EC firmware Initializing process Electrical power saving function of EC controller Page: 5-4 ′ MD-591X USER S MANUAL...
  • Page 67 ECRAM 256 bytes 0x0500-0x05FF OEM-RAM 256 bytes 0x0600-0x06FF For ITE_Flash_Utility & SPI ROM Read/Wirte 256 bytes 0x0700-0x07FF RamProgram using 256 bytes 0x0800-0x0EFF OEM-RAM 1792 bytes 0x0E00-0x0FFF For HSPI ram code function 256 bytes Page: 5-5 ′ MD-591X USER S MANUAL...
  • Page 68 Chapter 5 EC Firmware Specifications 2.) Initializing Process When initialization rises, EC firmware runs the following processes Initial item GPIO SMBus Scanner Keyboard Host LPC I/O Page: 5-6 ′ MD-591X USER S MANUAL...

  • Page 69: Acpi Embedded Controller (Ec)

    Write Embedded Controller (WR_EC) 0x81 Burst Enable Controller (BE_EC) 0x82 Burst Disable Controller (BD_EC) 0x83 Query Embedded Controller (QR_EC) 0x84 For more information, refer to the section Advanced Configuration and Power Interface Specification. Page: 5-7 ′ MD-591X USER S MANUAL...
  • Page 70 Reserved BAT1_SN Battery#1 Serial Number 0x1c BAT1_MANU Battery#1 Manufacture Access Status 0x00 _ACC BAT1_CC Battery#1 Cycle Count 0x17 BAT1_MANU Battery#1 Manufacture Date 0x1b _DATE Date. (year- 1980)*512+month*32+day BAT1_CURR Battery#1 Battery Current [mA] 0x0a Page: 5-8 ′ MD-591X USER S MANUAL...
  • Page 71 R/W OEM_LCD_B OEM LCD Brightness Level ACK_LIGHT R/W OEM_EX_C OEM Extended Command BIT0 // =1 Battery Refresh Mode BIT1 .. BIT7 :RESERVED R/W OEM_WIfI_L OEM Wifi LED Reserved Reserved ADC_CPU_C VCC_CPU voltage value ORE_VOLT Page: 5-9 ′ MD-591X USER S MANUAL...
  • Page 72 Description Note ADC_1_35_V 1.35V voltage value ADC_3_3_VO 3.3V voltage value ADC_GFX_V GFX voltage value Reserved Reserved MAIN_REV EC Firmware Main Version SUB_REV EC Firmware Sub Version TEST_REV EC Firmware Test Version Reserved Reserved Page: 5-10 ′ MD-591X USER S MANUAL...
  • Page 73 The 9 event or more will be discarded. If received SCI interrupt, send QR_EC(0x84) command and confirm the event that had occurred. For details, refer to the section System Management (SMC). Page: 5-11 ′ MD-591X USER S MANUAL...
  • Page 74 [Delay 2 seconds] or [Delay 1 sec]=>default value bit 5~7=> 0~ 7 sec 0x99 Reserved 0x9A EC Firmware main- version number. 0x9B EC Firmware sub- version number. 0x9C EC Firmware test- version number. 0x9D~9F Reserved Page: 5-12 ′ MD-591X USER S MANUAL...
  • Page 75 // 0 0 :do nothing // 0 1 :Auto boot 0xB6 Reserved 0xB7 bit0: System Watch Dog Timer Enable/Disable 1:Enable 0:Eisable 0xB8 System Watch Dog Time (sec) 0xB9 Reserved 0xBA bit0: xMBX_OEM_TEST_MODE 1:Enable 0:Eisable 0xBB~FF Reserved Page: 5-13 ′ MD-591X USER S MANUAL...

  • Page 76: Smbus Management

    Standard EC SMBus Command Supports standard SMBus access command that defined by Advanced Configuration and Power Interface Specification. As for the interface to host CPU, use from 80h onward in EC RAM area. Page: 5-14 ′ MD-591X USER S MANUAL...

  • Page 77: System Management (Smc)

    る 。 そ の 信 号 を 拾 い 、 す る 。 そ の 信 号 を 拾 理 を 実 行 す E C が 後 処 い 、 E C が 後 処 理 を 実 行 Page: 5-15 ′ MD-591X USER S MANUAL...
  • Page 78 17. A20GATE_IO setting 0→1 18. KBRSTJ_IO setting 0→1 19. CLKRUNJ setting 0→1 If any problems occurs, power on operation (S5 to S0) cannot run, and the state keep in S5. (inhibited powered on) Page: 5-16 ′ MD-591X USER S MANUAL...
  • Page 79 Signal name and control sequence is of current model CLKRUNJ setting 1→0 WLAN_LED setting 1→0 A20GATE_IO setting 1→0 KBRSTJ_IO setting 1→0 ECSCI setting 1→0 ECSMI setting 1→0 PWR_LED setting 1→0 SIO_PSONJ setting 0→1 50ms wait Page: 5-17 ′ MD-591X USER S MANUAL...
  • Page 80 Signal name and control sequence is of current model CLKRUNJ setting 1→0 WLAN_LED setting 1→0 A20GATE_IO setting 1→0 KBRSTJ_IO setting 1→0 ECSCI setting 1→0 ECSMI setting 1→0 PWR_LED setting 1→0 SIO_PSONJ setting 0→1 50ms wait Page: 5-18 ′ MD-591X USER S MANUAL...
  • Page 81 KBRSTJ_IO setting 0→1 CLKRUNJ setting 0→1 If any problem occurs, Wakeup operation (S3 to S0) cannot run, so the state keeps in S3. (inhibited wakeup) ・ S MBus communication error with the main battery Page: 5-19 ′ MD-591X USER S MANUAL...

  • Page 82: Lcd Backlight Brightness Control

    This value is memorized even if after power off, when power on, set the previous value. Brightness control by button pushed on the key sheet Percentage[%] Note ） Brightnes 1 (darkest Default Brightness 2 Brightness 3 Brightness 4 (brightest) Signal name Input/output Terminal name BCLT_PWM PWM0/GPA0 Page: 5-20 ′ MD-591X USER S MANUAL...

  • Page 83: Gpio Control

    EC RAM. So, we can check the internal voltage value by some test tool. Description Note (Name in EC RAM area) CPU core voltage value ADC_CPU_CORE_VOLT 1.35V voltage value ADC_1_35_VOLT 3.3V voltage value ADC_3_3_VOLT GFX voltage value ADC_GFX_VOLT Page: 5-21 ′ MD-591X USER S MANUAL...

  • Page 84: Appendix A Expansion Bus

    EXPANSION APPENDIX This appendix indicates the pin assignments. Sections included: Mini-PCIe Bus Page: A-1...

  • Page 85: Mini-Pcie Bus

    Appendix A Expansion Bus MINI-PCIE BUS You will find a M_PCIE1 on MD-591X. The pin assignments are as follows: ASSIGNMENT ASSIGNMENT WAKE# +3.3V +1.5V M_PCIE1 Reserved SMB_CLK Reserved PETn0 +1.5V SMB_DATA CLKREQ# PETp0 Reserved Reserved USB_D- REFCLK- Reserved USB_D+ REFCLK+ +3.3V...
  • Page 86 APPENDIX TECHNICAL SUMMARY This section introduce you the maps concisely. Sections included: Block Diagram Interrupt Map DMA Channel Map I/O Map Memory Map Post Codes S3 Resume Codes ACPI Checkpoints Event Log Codes Flash BIOS Update Page: B-1...

  • Page 87: Appendix B Technical Summary

    IT8528 Adapter in Charging C.Docking Flash Serial Port for MB ISL62392 For VCC5_SB For VCC3_3_SB VRD12/IMVP7 RT8167A For VCC & VNN (Mobile) TPS51216 For DDR3L TPS74801 For VCC1_8 IR3840 For VCC1_05 Page: B-2 ′ MD-591X USER S MANUAL...

  • Page 88: Interrupt Map

    Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Page: B-3 ′ MD-591X USER S MANUAL...
  • Page 89 Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Page: B-4 ′ MD-591X USER S MANUAL...
  • Page 90 Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Page: B-5 ′ MD-591X USER S MANUAL...
  • Page 91 Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System Microsoft ACPI-Compliant System ® 4294967293 Intel 82583V Gigabit Network Connection #2 Page: B-6 ′ MD-591X USER S MANUAL...
  • Page 92 Appendix B Technical Summary ASSIGNMENT ® 4294967294 Intel 82583V Gigabit Network Connection Page: B-7 ′ MD-591X USER S MANUAL...

  • Page 93: Dma Channels Map

    Appendix B Technical Summary DMA CHANNELS MAP TIMER CHANNEL ASSIGNMENT Channel 4 Direct memory access controller Page: B-8 ′ MD-591X USER S MANUAL...

  • Page 94: I/O Map

    Motherboard resources 0x00000065-0x0000006F Motherboard resources 0x00000067-0x00000067 Motherboard resources 0x00000070-0x00000077 System CMOS/real time clock 0x00000070-0x00000077 Motherboard resources 0x00000072-0x0000007F Motherboard resources 0x00000080-0x00000080 Motherboard resources 0x00000080-0x00000080 Motherboard resources 0x00000081-0x00000091 Direct memory access controller 0x00000084-0x00000086 Motherboard resources Page: B-9 ′ MD-591X USER S MANUAL...
  • Page 95 Motherboard resources 0x000002E8-0x000002EF VgaSave 0x000003B0-0x000003BB VgaSave 0x000003C0-0x000003DF VgaSave 0x00000400-0x0000047F Motherboard resources 0x00000400-0x0000047F Motherboard resources 0x000004D0-0x000004D1 Motherboard resources 0x000004D0-0x000004D1 Programmable interrupt controller 0x00000500-0x0000057F Motherboard resources 0x00000500-0x0000057F Motherboard resources 0x00000600-0x0000061F Motherboard resources 0x00000680-0x0000069F Motherboard resources Page: B-10 ′ MD-591X USER S MANUAL...
  • Page 96 Standard AHCI 1.0 Serial ATA Controller 0x0000F0E0-0x0000F0E3 Standard AHCI 1.0 Serial ATA Controller 0x0000F0F0-0x0000F0F7 Standard AHCI 1.0 Serial ATA Controller ® 0x0000F100-0x0000F107 Intel Graphics Media Accelerator 3600 Series 0x0000FFFF-0x0000FFFF Motherboard resources 0x0000FFFF-0x0000FFFF Motherboard resources Page: B-11 ′ MD-591X USER S MANUAL...

  • Page 97: Memory Map

    0xFED45000-0xFED8FFFF Motherboard resources ® 0xDFE20000-0xDFE23FFF Intel 82583V Gigabit Network Connection 0xFEC00000-0xFEC00FFF Motherboard resources 0xFEE00000-0xFEE00FFF Motherboard resources 0xFED20000-0xFED8FFFF Motherboard resources 0xFFC00000-0xFFFFFFFF Motherboard resources ® 0xDFF05000-0xDFF053FF Intel N10/ICH7 Family USB2 Enhanced Host Controller - 27CC Page: B-12 ′ MD-591X USER S MANUAL...
  • Page 98 Appendix B Technical Summary MEMORY MAP ASSIGNMENT 0xA0000-0xBFFFF PCI bus 0xA0000-0xBFFFF VgaSave 0xC0000-0xDFFFF PCI bus 0xE0000-0xEFFFF PCI bus 0xF0000-0xFFFFF PCI bus 0x3F800000-0x3FFFFFFF PCI bus 0x40000000-0xFEBFFFFF PCI bus Page: B-13 ′ MD-591X USER S MANUAL...

  • Page 99: Post Codes

    Pre-Memory North Bridge initialization (North Bridge module specific) 0x19 Pre-memory South Bridge initialization is started 0x1A Pre-memory South Bridge initialization (South Bridge module specific) 0x1B Pre-memory South Bridge initialization (South Bridge module specific) Page: B-14 ′ MD-591X USER S MANUAL...
  • Page 100 Post-Memory North Bridge initialization (North Bridge module specific) 0x3B Post-Memory South Bridge initialization is started 0x3C Post-Memory South Bridge initialization (South Bridge module specific) 0x3D Post-Memory South Bridge initialization (South Bridge module specific) Page: B-15 ′ MD-591X USER S MANUAL...
  • Page 101 CPU self test failed or possible CPU cache error 0x59 CPU micro-code is not found or micro-code update is failed 0x5A Internal CPU error 0x5B reset PPI is not available 0x5C-0x5F Reserved for future AMI error codes Page: B-16 ′ MD-591X USER S MANUAL...

  • Page 102: S3 Resume Codes

    CPU DXE initialization (CPU module specific) 0x68 PCI host bridge initialization 0x69 North Bridge DXE initialization is started 0x6A North Bridge DXE SMM initialization is started 0x6B North Bridge DXE initialization (North Bridge module specific) Page: B-17 ′ MD-591X USER S MANUAL...
  • Page 103 OEM DXE initialization codes 0x90 Boot Device Selection (BDS) phase is started 0x91 Driver connecting is started 0x92 PCI Bus initialization is started 0x93 PCI Bus Hot Plug Controller Initialization 0x94 PCI Bus Enumeration Page: B-18 ′ MD-591X USER S MANUAL...
  • Page 104 Setup Input Wait 0xAC Reserved for ASL (see ASL Status Codes section below) 0xAD Ready To Boot event 0xAE Legacy Boot event 0xAF Exit Boot Services event 0xB0 Runtime Set Virtual Address MAP Begin Page: B-19 ′ MD-591X USER S MANUAL...
  • Page 105 No Console Input Devices are found 0xD8 Invalid password 0xD9 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error) 0xDB Flash update is failed 0xDC Reset protocol is not available Page: B-20 ′ MD-591X USER S MANUAL...

  • Page 106: Acpi Checkpoints

    System is waking up from the S4 sleep state 0xAC System has transitioned into ACPI mode. Interrupt controller is in PIC mode. 0xAA System has transitioned into ACPI mode. Interrupt controller is in APIC mode. Page: B-21 ′ MD-591X USER S MANUAL...

  • Page 107: Event Log Codes

    Asyn HW Timer Expired 0x12 System Configuration Information 0x13 Hard Disk Information 0x14 System Reconfigured 0x15 Uncorrectable CPU Complex Error 0x16 Log Area Reset 0x18-0x7F Unused 0x80-0xFE OEM Assigned 0xFF End of Log Page: B-22 ′ MD-591X USER S MANUAL...

  • Page 108: Flash Bios Update

    DOS prompt. Download and save the BIOS file (ex. M5910Pxx.rom) to the bootable device. Copy AMI flash utility – AFUDOS.exe into bootable device. C:\>dir Volume in drive C is PROTECH Volume Serial Number is 3CCE-a150 Directory of C:\ <DIR> 12-14-12 5.50P...
  • Page 109 Appendix B Technical Summary Page: B-24 ′ MD-591X USER S MANUAL...
  • Page 110 The recommended options for BIOS ROM update consist of following parameters: program main BIOS image program Boot Block program NVRAM don’t check ROM ID Page: B-25 ′ MD-591X USER S MANUAL...
  • Page 111 Verifying NVRAM ..done Erasing BootBlock ..done Writing BootBlock ..done Verifying BootBlock ... done C:\>_ You can restart the system and boot up with new BIOS now. Update is complete after restart. Page: B-26 ′ MD-591X USER S MANUAL...
  • Page 112 Verify during following boot that the BIOS version displayed at initialization screen has changed. Version: 2.15.1226. Copyright (C) 2012 American Magatrends, Inc. BIOS Date: 09/20/2013 14:00:05 Ver: M5910Pxx Press <DEL> or <F2> to enter setup. Page: B-27 ′ MD-591X USER S MANUAL...
