Page 1: Table Of Contents
Tools Required to Connect External Devices and Cables | 12 Connect the ACX2200 Router to a Network for Out-of-Band Management | 13 Connect the ACX2200 Router to a Management Console or Auxiliary Device | 13 Connect Network Interface Cables to the ACX2200 Router | 13... - Page 2 Commit the Configuration | 21 Safety Warnings | 23 Compliance Statements for NEBS | 24 Compliance Statements for EMC Requirements for the ACX2200 Router | 25 Canada | 25 European Community | 25 Junos OS Documentation and Release Notes | 26...
-
Page 3: Acx2200 Quick Start Description

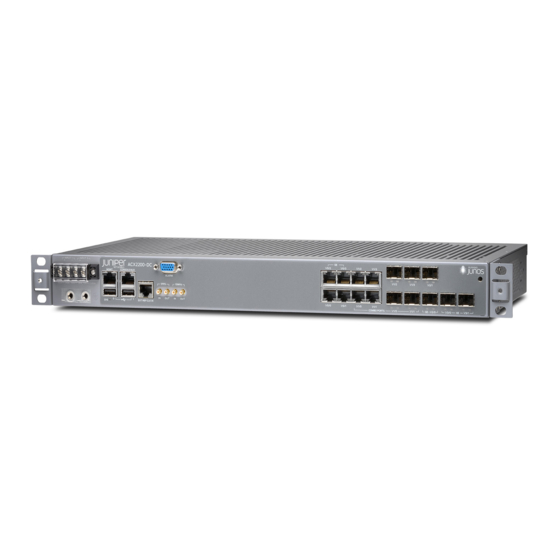

Ethernet routing. The ACX Series routers enable a wide range of business and residential applications and services, including microwave cell site aggregation, MSO mobile backhaul service cell site deployment, and service provider or operator cell site deployment. The ACX2200 routers have high-density Ethernet interfaces and high-capacity switching throughput. - Page 4 Figure 1: Front Panel of the DC-powered ACX2200 Router ACX2200 0/0/2 0/0/3 0/1/2 0/1/3 MGMT CONSOLE/AUX ALARM 0/1/2 0/1/3 0/2/1 1PPS 10MHz EXT REF CLK IN 0/0/0 0/0/1 0/1/0 0/1/1 COMBO PORTS 0/1/0 0/1/1 0/2/0 0/3/0 0/3/1 13 12 DC terminal Gigabit Ethernet SFP ports —...
-
Page 5: Step 1: Prepare The Site For Installation
Step 1: Prepare the Site for Installation Prepare your site for installation by observing the following guidelines: You can install the router in a four-post rack or cabinet or an open-frame rack. The rack rails must be spaced widely enough to accommodate the chassis's external dimensions: 1.7 in. (4.4 cm) high, 9.4 in. - Page 6 Figure 3: ACX Series Routers Rack Clearance and Chassis Dimensions 2.16" (5.5 cm) .75" (2 cm) clearance required clearance required 3" (7.6 cm) for the cables for free airflow 9.4" (24 cm) 19.2" 17.5" Front Rear (48.7 cm) (44.5 cm) 3"...
-
Page 7: Step 2: Install The Router
Tools Required to Install the Router in a Rack | 7 Install the Mounting Brackets | 7 Install the ACX2200 Router in the Rack | 8 Tools Required to Install the Router in a Rack To install the router in a rack, you need the following tools:... -
Page 8: Install The Acx2200 Router In The Rack
Figure 4: Installing the Mounting Brackets to the Front of the ACX2200 Router Figure 5: Installing the Mounting Brackets to the Rear of the ACX2200 Router Install the ACX2200 Router in the Rack The router can be installed horizontally in a rack or cabinet. - Page 9 4. Have the second person install a mounting screw into each of the open mounting holes aligned with the rack, starting from the bottom. 5. Visually inspect the alignment of the router. If the router is installed properly in the rack, all the mounting screws on one side of the rack should be aligned with the mounting screws on the opposite side, and the router should be level.
-
Page 10: Step 3: Ground The Acx2200 Router
Step 3: Ground the ACX2200 Router IN THIS SECTION Tools Required to Ground the ACX Router | 10 Connect the Grounding Cable | 10 You must ground DC-powered routers before connecting DC power. Tools Required to Ground the ACX Router... - Page 11 4. Connect the grounding cable to a proper earth ground. 5. Detach the ESD grounding strap from the site ESD grounding point. 6. Attach an ESD grounding strap to your bare wrist, and connect the other end of the strap to an ESD grounding point.
-
Page 12: Step 4: Connect External Devices And Cables
Tools Required to Connect External Devices and Cables | 12 Connect the ACX2200 Router to a Network for Out-of-Band Management | 13 Connect the ACX2200 Router to a Management Console or Auxiliary Device | 13 Connect Network Interface Cables to the ACX2200 Router | 13... -
Page 13: Connect The Acx2200 Router To A Network For Out-Of-Band Management
3. Plug the other end of the cable into the network device. Connect the ACX2200 Router to a Management Console or Auxiliary Device 1. Turn off the power to the console or auxiliary device. 2. Plug the RJ-45 end of the serial cable... - Page 14 CAUTION: Do not leave a fiber-optic transceiver uncovered except when inserting or removing a cable. The safety cap keeps the port clean and prevents accidental exposure to laser light. 3. Insert the cable connector into the cable connector port on the faceplate. 4.
-
Page 15: Step 5: Connect Power To The Acx2200 Router
Step 5: Connect Power to the ACX2200 Router IN THIS SECTION Connect AC Power to an AC-Powered ACX2200 Series Router | 15 Connect DC Power to a DC-Powered ACX2200 Router | 16 Depending on your configuration, your router uses either AC or DC power supplies. Perform the appropriate procedures for each power supply in your router. -
Page 16: Connect Dc Power To A Dc-Powered Acx2200 Router
If the system LED is not lit, the power supply is not functioning normally. Repeat the cabling procedures. Connect DC Power to a DC-Powered ACX2200 Router To connect power to the DC-powered router, you need the following tools:... - Page 17 1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis. For more information about ESD, see the ACX2200 Universal Metro Routers Hardware Guide. 2. Switch off the dedicated customer site circuit breakers. Ensure that the voltage across the DC power source cable leads is 0 V and that there is no chance that the cable leads might become active during installation.
- Page 18 CAUTION: The maximum torque rating of the terminal screws on the DC power supply is 9 lb-in. (1.02 Nm). The terminal screws may be damaged if excessive torque is applied. Use only a torque-controlled driver to tighten screws on the DC power supply terminals.
-
Page 19: Step 6: Perform Initial Software Configuration
Step 6: Perform Initial Software Configuration IN THIS SECTION Enter Configuration Mode | 19 Configure User Accounts and Passwords | 20 Configure System Attributes | 20 Commit the Configuration | 21 This procedure connects the router to the network but does not enable it to forward traffic. For complete information about configuring the router to forward traffic, including examples, see the Junos OS configuration guides. -
Page 20: Configure User Accounts And Passwords
Configure User Accounts and Passwords For information about using an encrypted password or an SSH public key string (DSA or RSA), see Configuring the Root Password and user. 1. Add a password to the root administration user account. Enter a cleartext password. [edit] root@host# set system root-authentication plain-text-password New password: password... -
Page 21: Commit The Configuration
3. Configure the IP address and prefix length for the router’s Ethernet interface. [edit] root@# set interfaces fxp0 unit 0 family inet address address/prefix-length 4. Configure the IP address of a backup router, which is used only while the routing protocol is not running. [edit] root@# set system backup-router address 5. - Page 22 domain-name domain-name; backup-router address; root-authentication { authentication-method (password | public-key); name-server { address; interfaces { fxp0 { unit 0 { family inet { address address/prefix-length; 2. Commit the configuration to activate it on the router. [edit] root@# commit 3. (Optional) Configure additional properties by adding the necessary configuration statements. Then commit the changes to activate them on the router.
-
Page 23: Safety Warnings
ESD strap could result in damage to the router. Only trained and qualified personnel should install or replace the router. Perform only the procedures described in this quick start or the ACX2200 Universal Metro Routers Hardware Guide. Other services should be performed by authorized service personnel only. -
Page 24: Compliance Statements For Nebs
When removing or installing an electrical component, always place it component-side up on a flat antistatic surface or in an electrostatic bag. When you install the router, always make the ground connection first and disconnect it last. Wire the DC power supply using the appropriate lugs. Always connect the ground wire first and disconnect it last. -
Page 25: Compliance Statements For Emc Requirements For The Acx2200 Router
Compliance Statements for EMC Requirements for the ACX2200 Router IN THIS SECTION Canada | 25 European Community | 25 Canada CAN ICES-3 (A)/NMB-3(A) European Community This is a Class A product. In a domestic environment, this product might cause radio interference in which... -
Page 26: Junos Os Documentation And Release Notes
JTAC Hours of Operation —The JTAC centers have resources available 24 hours a day, 7 days a week, 365 days a year. Self-Help Online Tools and Resources For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features: Find CSC offerings: https://www.juniper.net/customers/support/... -
Page 27: Creating A Service Request With Jtac
