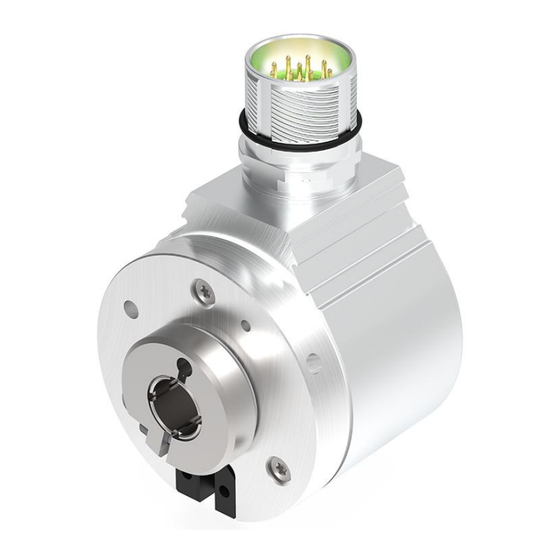

Rotary encoder construction size 58
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual

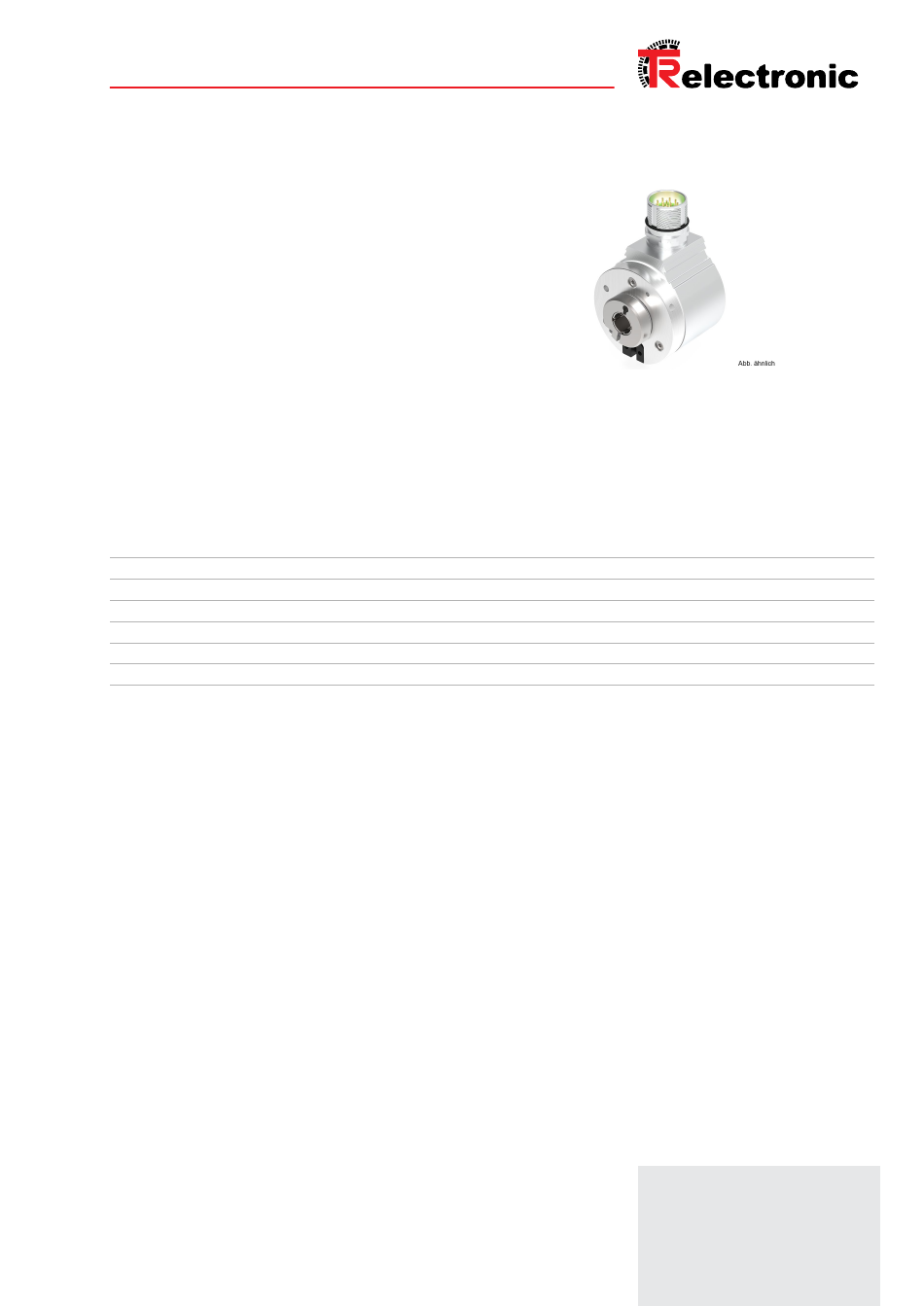

Gesamtbedienungsanleitung
Für
CMS582M*8192/4096 SSI DMS 12H7 KRF
Material Nr.
CMS582M-00025
Generiert am
02.09.2023
Enthält Originalbedienungsanleitung
Dokumentationsabschnitte
Montageanleitung de/en Baureihe 58 Montageanleitung
Montageanleitung de/en Baureihe 582/802/1102 Montageanleitung
Betriebsanleitung
de/en C__-58/80/110 SSI-Schnittstelle TRWinp.
Betriebsanleitung
de/en Baureihe 362/582/802/1102 SSI TRWinp.
Konformitätserklärung de/en EU-Konformitätserklärung ECE (EMV+RoHS)
Konformitätserklärung de/en UKCA, Konformitätserkl. ECE (EMV+RoHS)
Technische Daten
Seite 1/1
TR-ECE-BA-DGB-0035-14.pdf
TR-ECE-BA-DGB-0175-00.pdf
TR-ECE-BA-DGB-0039-14.pdf
TR-ECE-BA-DGB-0141-05.pdf
TR-ECE-KE-DGB-0374-05.pdf
TR-ECE-KE-GB-0375-05.pdf
Änderungen vorbehalten.
TR-Electronic GmbH
Eglishalde 6
78647 Trossingen
Tel. +49 (0) 7425 228-0
info@tr-electronic.de
www.tr-electronic.de
